Comet BP205 Diaphragm Pump

Comet BP205 Diaphragm Pump

Brand:
Comet
Weight:
71.0 lb
Item #
BP205

Regular price $2,272.56
Sale price $2,272.56 Regular price List Price: $3,496.24

We're here to help!

Let us know if you need assistance finding the right spray equipment

Earn 6,818 points with this purchase.

View full details

Collapsible content

Product Overview

Comet BP205 Diaphragm Pump

51 gpm, 290 psi, 1-3/4" Inlet & 1" Outlet

Shaft Ouput:  1-3/8" 6 Spline Male PTO Throughshaft

Comet BP series diaphragm pumps have external plastic or plastic coated manifolds for extra resistance to chemicals.  Designed for low pressure applications such as herbicides, fertilizers and other boom applications.  These pumps are also used in a variety of industrial applications such as dust suppression and hydrostatic testing.

Parts breakdown

Diagram

Diagram parts

Parts list

  • Cap
    • Ref No: 1
    • Part No: 04020143
    • Qty Req: 1
    Our price: $11.29 List price: $13.28
  • O-Ring
    • Ref No: 2
    • Part No: 12100373
    • Qty Req: 1
    Our price: $2.04 List price: $2.40
  • Bolt
    • Ref No: 3
    • Part No: 36090009
    • Qty Req: 1
    Our price: $3.12 List price: $3.67
  • Washer
    • Ref No: 4
    • Part No: 28110050
    • Qty Req: 1
    Our price: $1.17 List price: $1.38
  • Spacer
    • Ref No: 5
    • Part No: 06010248
    • Qty Req: 1
    Our price: $12.05 List price: $14.18
  • O-Ring
    • Ref No: 6
    • Part No: 12100093
    • Qty Req: 1
    Our price: $0.82 List price: $0.96
  • Oil Cup
    • Ref No: 7
    • Part No: 04210016
    • Qty Req: 1
    Our price: $36.15 List price: $42.53
  • O-Ring
    • Ref No: 8
    • Part No: 12100039
    • Qty Req: 2
    Our price: $0.81 List price: $0.95
  • Oil Cup Assembly
    • Ref No: 9
    • Part No: 12080014
    • Qty Req: 1
    Our price: $67.49 List price: $79.40
  • Pump Crankcase
    • Ref No: 10
    • Part No: 04030144
    • Qty Req: 1
    Our price: $999.90 List price: $1,176.35
  • Oil Seal
    • Ref No: 11
    • Part No: 00190091
    • Qty Req: 1
    Our price: $17.59 List price: $20.69
  • Retaining Ring
    • Ref No: 12
    • Part No: 30200013
    • Qty Req: 1
    Our price: $3.70 List price: $4.35
  • O-Ring
    • Ref No: 13
    • Part No: 12100209
    • Qty Req: 1
    Our price: $1.23 List price: $1.45
  • Plug
    • Ref No: 14
    • Part No: 32000001
    • Qty Req: 1
    Our price: $8.25 List price: $9.70
  • Ball Bearing
    • Ref No: 15
    • Part No: 04380094
    • Qty Req: 1
    Our price: $139.37 List price: $163.96
  • Connecting Rod Washer
    • Ref No: 16
    • Part No: 28130005
    • Qty Req: 1
    Our price: $117.73 List price: $138.51
  • Connecting Rod Ring
    • Ref No: 17
    • Part No: 00100003
    • Qty Req: 2
    Our price: $85.59 List price: $100.69
  • Roller Bearing
    • Ref No: 18
    • Part No: 04370080
    • Qty Req: 1
    Our price: $402.25 List price: $473.24
  • Throughshaft
    • Ref No: 19
    • Part No: 00010069
    • Qty Req: 1
    Our price: $729.44 List price: $858.17
  • Key
    • Ref No: 20
    • Part No: 16020018
    • Qty Req: 1
    Our price: $4.91 List price: $5.78
  • O-Ring
    • Ref No: 23
    • Part No: 12100389
    • Qty Req: 1
    Our price: $2.41 List price: $2.84
  • Cover
    • Ref No: 24
    • Part No: 04050020
    • Qty Req: 1
    Our price: $195.60 List price: $230.12
  • Oil Seal
    • Ref No: 25
    • Part No: 00190083
    • Qty Req: 1
    Our price: $13.90 List price: $16.35
  • Snap Ring
    • Ref No: 26
    • Part No: 30200009
    • Qty Req: 1
    Our price: $3.70 List price: $4.35
  • Screw
    • Ref No: 27
    • Part No: 36070225
    • Qty Req: 6
    Our price: $1.95 List price: $2.29
  • Connecting Rod Set
    • Ref No: 28
    • Part No: 02050067
    • Qty Req: 2
    Our price: $273.11 List price: $321.30
  • Piston
    • Ref No: 29
    • Part No: 24090096
    • Qty Req: 6
    Our price: $116.36 List price: $136.89
  • Piston Ring
    • Ref No: 30
    • Part No: 00200001
    • Qty Req: 6
    Our price: $13.90 List price: $16.35
  • Piston Sleeve
    • Ref No: 31
    • Part No: 04000089
    • Qty Req: 6
    Our price: $144.05 List price: $169.47
  • Diaphragm (Buna)
    • Ref No: 32
    • Part No: 18000002
    • Qty Req: 6
    Our price: $27.93 List price: $32.86
  • Diaphragm (Desmopan)
    • Ref No: 32
    • Part No: 18000176
    • Qty Req: 6
    Our price: $45.48 List price: $53.51
  • Diaphragm (Viton)
    • Ref No: 32
    • Part No: 18000032
    • Qty Req: 6
    Our price: $273.43 List price: $321.68
  • Disc
    • Ref No: 33
    • Part No: 06020045
    • Qty Req: 6
    Our price: $15.85 List price: $18.65
  • Diaphragm Holder Screw
    • Ref No: 34
    • Part No: 36050005
    • Qty Req: 6
    Our price: $26.73 List price: $31.45
  • Connecting Rod Pin
    • Ref No: 35
    • Part No: 30110001
    • Qty Req: 6
    Our price: $19.03 List price: $22.39
  • Retaining Clip
    • Ref No: 36
    • Part No: 30200001
    • Qty Req: 12
    Our price: $0.44 List price: $0.52
  • Pump Mounting Bracket
    • Ref No: 37
    • Part No: 24000092
    • Qty Req: 2
    Our price: $82.62 List price: $97.20
  • Screw
    • Ref No: 38
    • Part No: 36090164
    • Qty Req: 2
    Our price: $1.17 List price: $1.38
  • Hose Tail Fixing Plate
    • Ref No: 39
    • Part No: 24040149
    • Qty Req: 1
    Our price: $23.39 List price: $27.52
  • Straight Hose Tail
    • Ref No: 40
    • Part No: 28000022
    • Qty Req: 1
    Our price: $17.63 List price: $20.74
  • O-Ring
    • Ref No: 41
    • Part No: 12100030
    • Qty Req: 2
    Our price: $1.84 List price: $2.17
  • O-Ring
    • Ref No: 42
    • Part No: 12100419
    • Qty Req: 12
    Our price: $2.71 List price: $3.19
  • Valve Seat
    • Ref No: 43
    • Part No: 30090022
    • Qty Req: 12
    Our price: $42.99 List price: $50.58
  • Valve Plunger
    • Ref No: 44
    • Part No: 36040009
    • Qty Req: 12
    Our price: $6.41 List price: $7.54
  • Spring
    • Ref No: 45
    • Part No: 18020255
    • Qty Req: 12
    Our price: $7.79 List price: $9.17
  • Valve Cage
    • Ref No: 46
    • Part No: 12050034
    • Qty Req: 12
    Our price: $3.96 List price: $5.28
  • Valve Assembly
    • Ref No: 47
    • Part No: 12200046
    • Qty Req: 12
    Our price: $73.94 List price: $86.99
  • Bolt
    • Ref No: 48
    • Part No: 36090161
    • Qty Req: 20
    Our price: $2.29 List price: $2.69
  • Washer
    • Ref No: 49
    • Part No: 28110098
    • Qty Req: 20
    Our price: $0.48 List price: $0.57
  • Pump Head
    • Ref No: 50
    • Part No: 32180123
    • Qty Req: 6
    Our price: $149.54 List price: $175.93
  • Delivery Hose Tail
    • Ref No: 53
    • Part No: 28020014
    • Qty Req: 1
    Our price: $12.86 List price: $15.13
  • O-Ring
    • Ref No: 54
    • Part No: 12100002
    • Qty Req: 2
    Our price: $0.92 List price: $1.08
  • Delivery Hose Tail
    • Ref No: 55
    • Part No: 28030151
    • Qty Req: 1
    Our price: $16.60 List price: $19.53
  • Delivery Hook
    • Ref No: 56
    • Part No: 12020060
    • Qty Req: 1
    Our price: $12.55 List price: $14.76
  • Suction Manifold
    • Ref No: 58
    • Part No: 04150029
    • Qty Req: 1
    Our price: $540.86 List price: $636.31
  • U-Bolt
    • Ref No: 60
    • Part No: 04180041
    • Qty Req: 6
    Our price: $42.63 List price: $50.15
  • Bolt
    • Ref No: 61
    • Part No: 36090163
    • Qty Req: 6
    Our price: $2.04 List price: $2.40
  • Throughshaft 1-3/8" M-M
    • Ref No: 65
    • Part No: 00010141
    • Qty Req: 1
    Our price: $749.32 List price: $881.55

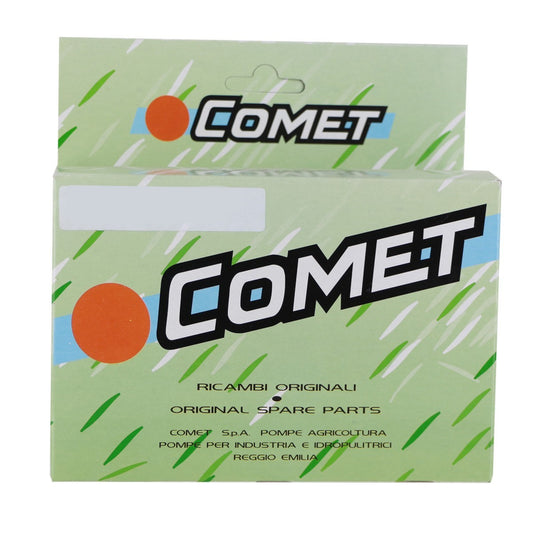

  • 5026.0232 BP205/280 Diaphragm & Valve Kit
    • Ref No: 101
    • Part No: 50260232
    • Qty Req: 1
    Our price: $719.24 List price: $1,027.48
