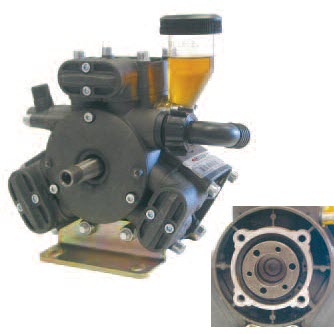

Comet APS41TS Diaphragm Pump

Comet APS41TS Diaphragm Pump

Brand:
Comet
Weight:
30.0 lb
Item #
APS41TS
1 1

Comet APS41TS Diaphragm Pump

Comet APS41TS Diaphragm Pump

Brand:
Comet
Weight:
30.0 lb
Item #
APS41TS

$1,019.83
$1,019.83 List Price: $1,412.08

Free Shipping on Qualified Orders Over $100

In stock orders placed within

13 hrs 9 minsship out same day. Learn more

Earn 3,059 points with this purchase.

See Details

View full details

Product Overview

11 gpm, 580 psi.

Three diaphragm pump with universal drive face on front and 17mm keyed shaft on back. Includes mounting rails.

High pressure internal manifold pumps with anodized aluminum heads for less leak points. Great for lawn care, pest control, hydrostatic testing and agricultural spraying.

Download Product Manual

Diagram

Diagram parts

Parts list

  • Snap Ring
    • Ref No: 1
    • Part No: 30200002
    • Qty Req: 1
    Our price: $6.45 List price: $7.75
  • Oil Seal
    • Ref No: 2
    • Part No: 00190085
    • Qty Req: 1
    Our price: $23.13 List price: $27.76
  • Connecting Rod Ring
    • Ref No: 4
    • Part No: 00100026
    • Qty Req: 2
    Our price: $25.56 List price: $30.67
  • Ball Bearing
    • Ref No: 5
    • Part No: 04380001
    • Qty Req: 1
    Our price: $181.04 List price: $217.24
  • Snap Ring
    • Ref No: 6
    • Part No: 30190001
    • Qty Req: 1
    Our price: $4.58 List price: $5.49
  • Ball Bearing
    • Ref No: 7
    • Part No: 04380066
    • Qty Req: 1
    Our price: $50.34 List price: $51.75
  • Pump Crankcase
    • Ref No: 8
    • Part No: 04030147
    • Qty Req: 1
    Our price: $555.75 List price: $571.31
  • Pump Mounting Bracket
    • Ref No: 10
    • Part No: 24000089
    • Qty Req: 2
    Our price: $18.33 List price: $22.00
  • Screw
    • Ref No: 11
    • Part No: 36090179
    • Qty Req: 2
    Our price: $8.89 List price: $9.14
  • Oil Plug
    • Ref No: 12
    • Part No: 32000080
    • Qty Req: 1
    Our price: $5.23 List price: $6.26
  • Diaphragm Holder Screw
    • Ref No: 13
    • Part No: 36050027
    • Qty Req: 3
    Our price: $13.83 List price: $16.60
  • Disc
    • Ref No: 14
    • Part No: 06020033
    • Qty Req: 3
    Our price: $11.65 List price: $13.70
  • Piston Diaphragm, Buna - Comet Diaphragm Pump APS41 / MC25 / MP20/30
    • Ref No: 15
    • Part No: 18000020
    • Qty Req: 3
    Our price: $15.16 List price: $18.18
  • Diaphragm, Desmopan APS31 APS41 APS-31 APS-41
    • Ref No: 15
    • Part No: 18000102
    • Qty Req: 3
    Our price: $28.04 List price: $33.64
  • Diaphragm, Viton APS31 APS41 APS-31 APS-41
    • Ref No: 15
    • Part No: 18000028
    • Qty Req: 3
    Our price: $122.42 List price: $146.90
  • Piston Sleeve
    • Ref No: 16
    • Part No: 04000080
    • Qty Req: 3
    Our price: $116.40 List price: $139.68
  • Compression Ring
    • Ref No: 17
    • Part No: 00200010
    • Qty Req: 3
    Our price: $9.77 List price: $11.72
  • Piston
    • Ref No: 18
    • Part No: 24090097
    • Qty Req: 3
    Our price: $64.34 List price: $75.69
  • Connecting Rod Assembly (Set of 3)
    • Ref No: 19
    • Part No: 02050069
    • Qty Req: 3
    Our price: $127.07 List price: $152.48
  • Pin
    • Ref No: 20
    • Part No: 30110024
    • Qty Req: 3
    Our price: $11.45 List price: $13.73
  • Snap Ring
    • Ref No: 21
    • Part No: 30200029
    • Qty Req: 6
    Our price: $0.46 List price: $0.54
  • Screw
    • Ref No: 22
    • Part No: 36090165
    • Qty Req: 2
    Our price: $1.42 List price: $1.71
  • Washer
    • Ref No: 23
    • Part No: 28110004
    • Qty Req: 2
    Our price: $0.49 List price: $0.58
  • Standard Hose Adapter
    • Ref No: 24
    • Part No: 28030467
    • Qty Req: 1
    Our price: $22.21 List price: $26.65
  • Hose Adapter
    • Ref No: 24
    • Part No: 28030468
    • Qty Req: 1
    Our price: $22.89 List price: $27.47
  • O-Ring
    • Ref No: 25
    • Part No: 12100447
    • Qty Req: 1
    Our price: $0.69 List price: $0.82
  • Standard Hose Adapter Kit
    • Ref No: 26
    • Part No: 50040151
    • Qty Req: 1
    Our price: $22.89 List price: $27.46
  • Hose Tail
    • Ref No: 26
    • Part No: 28030474
    • Qty Req: 1
    Our price: $22.89 List price: $27.46
  • Cover
    • Ref No: 27
    • Part No: 04020141
    • Qty Req: 1
    Our price: $5.98 List price: $7.17
  • O-Ring
    • Ref No: 28
    • Part No: 12100122
    • Qty Req: 1
    Our price: $2.70 List price: $2.78
  • Oil Neck Glass
    • Ref No: 29
    • Part No: 04210015
    • Qty Req: 1
    Our price: $21.36 List price: $25.63
  • O-Ring
    • Ref No: 30
    • Part No: 12100233
    • Qty Req: 1
    Our price: $0.49 List price: $0.58
  • Screw
    • Ref No: 32
    • Part No: 36090002
    • Qty Req: 2
    Our price: $1.75 List price: $2.10
  • Oil Cup Assembly
    • Ref No: 33
    • Part No: 12080013
    • Qty Req: 1
    Our price: $33.45 List price: $40.15
  • Screw
    • Ref No: 36
    • Part No: 36090014
    • Qty Req: 12
    Our price: $2.45 List price: $2.52
  • Right Head
    • Ref No: 38
    • Part No: 32180308
    • Qty Req: 2
    Our price: $86.11 List price: $101.31
  • Valve Spring
    • Ref No: 40
    • Part No: 18020177
    • Qty Req: 6
    Our price: $1.98 List price: $2.04
  • Valve Plate
    • Ref No: 41
    • Part No: 36040007
    • Qty Req: 6
    Our price: $2.69 List price: $3.22
  • O-Ring
    • Ref No: 43
    • Part No: 12100451
    • Qty Req: 6
    Our price: $8.09 List price: $8.32
  • Valve Assembly
    • Ref No: 44
    • Part No: 12200052
    • Qty Req: 6
    Our price: $20.19 List price: $24.23
  • O-Ring
    • Ref No: 45
    • Part No: 12100015
    • Qty Req: 6
    Our price: $2.03 List price: $2.44
  • Valve Plug
    • Ref No: 46
    • Part No: 32020259
    • Qty Req: 3
    Our price: $38.72 List price: $46.47
  • Screw
    • Ref No: 47
    • Part No: 36090032
    • Qty Req: 6
    Our price: $1.11 List price: $1.14
  • O-Ring
    • Ref No: 48
    • Part No: 12100145
    • Qty Req: 1
    Our price: $1.06 List price: $1.26
  • Nipple
    • Ref No: 49
    • Part No: 20000100
    • Qty Req: 1
    Our price: $4.94 List price: $5.92
  • O-Ring
    • Ref No: 50
    • Part No: 12100048
    • Qty Req: 1
    Our price: $1.03 List price: $1.06
  • Supply Elbow 1"
    • Ref No: 51
    • Part No: 28010075
    • Qty Req: 1
    Our price: $15.11 List price: $18.13
  • Wing Nut
    • Ref No: 52
    • Part No: 12000049
    • Qty Req: 1
    Our price: $9.13 List price: $10.94
  • Left Head
    • Ref No: 54
    • Part No: 32180309
    • Qty Req: 1
    Our price: $98.54 List price: $101.31
  • O-Ring
    • Ref No: 55
    • Part No: 12100101
    • Qty Req: 1
    Our price: $1.60 List price: $1.92
  • O-Ring
    • Ref No: 56
    • Part No: 12100225
    • Qty Req: 1
    Our price: $4.44 List price: $4.57
  • Manifold
    • Ref No: 57
    • Part No: 10090181
    • Qty Req: 1
    Our price: $63.32 List price: $75.98
  • Throughshaft
    • Ref No: 91
    • Part No: 00010445
    • Qty Req: 1
    Our price: $623.63 List price: $733.68
  • Oil Seal
    • Ref No: 92
    • Part No: 00190110
    • Qty Req: 1
    Our price: $5.97 List price: $7.96
  • Flange
    • Ref No: 93
    • Part No: 10090182
    • Qty Req: 1
    Our price: $85.65 List price: $100.77
