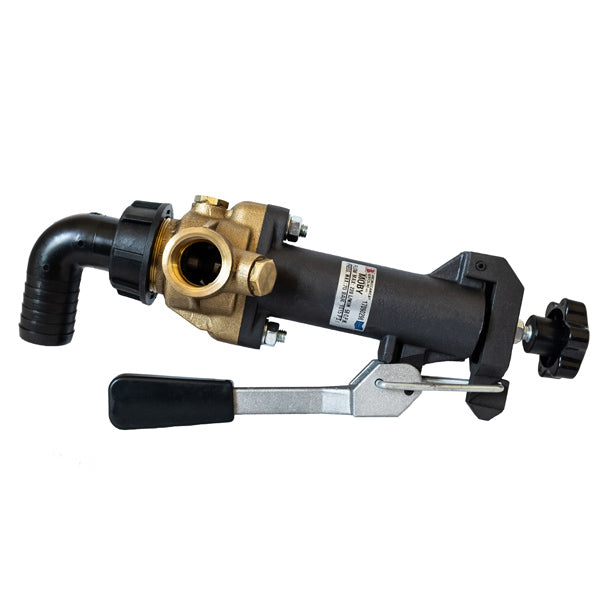

The CDS John Blue Moby SC-1580-1 Control Unit/Regulator is intended for use on the DP-407.1 Diaphragm Pump. This unit is capable of managing pressures up to 1015 PSI and controlling flow rates up to 58 GPM. This high-pressure relief valve and control system is adjustable and includes a hose barb bypass, complete bypass lever, two-and-a-half-inch gauge, and 3/4" NPT outlet.

The Moby SC-1580-1 has a brass alloy body, parts in contact with spray materials are stainless steel and the poppet is ceramic, which offers a high resistance against chemical attack. The Moby SC-1580-1 can be used with the DP-407.1.

• Fits pump model: DP-407.1
• Max flow: 58 gpm
• Max pressure: 1015 psi
• Port sizes: 3/4" hose barb bypass
• Weight: 5 lbs
