CDS-John Blue DP-687-P (Poly) Diaphragm Pump

CDS-John Blue DP-687-P (Poly) Diaphragm Pump

Brand:
John Blue
Weight:
86.0 lb
Item #
DP687P
1 review

Regular price $3,279.26
Sale price $3,279.26 Regular price List Price: $6,558.51

We're here to help!

Let us know if you need assistance finding the right spray equipment

Earn 9,838 points with this purchase.

View full details

Collapsible content

Product Overview

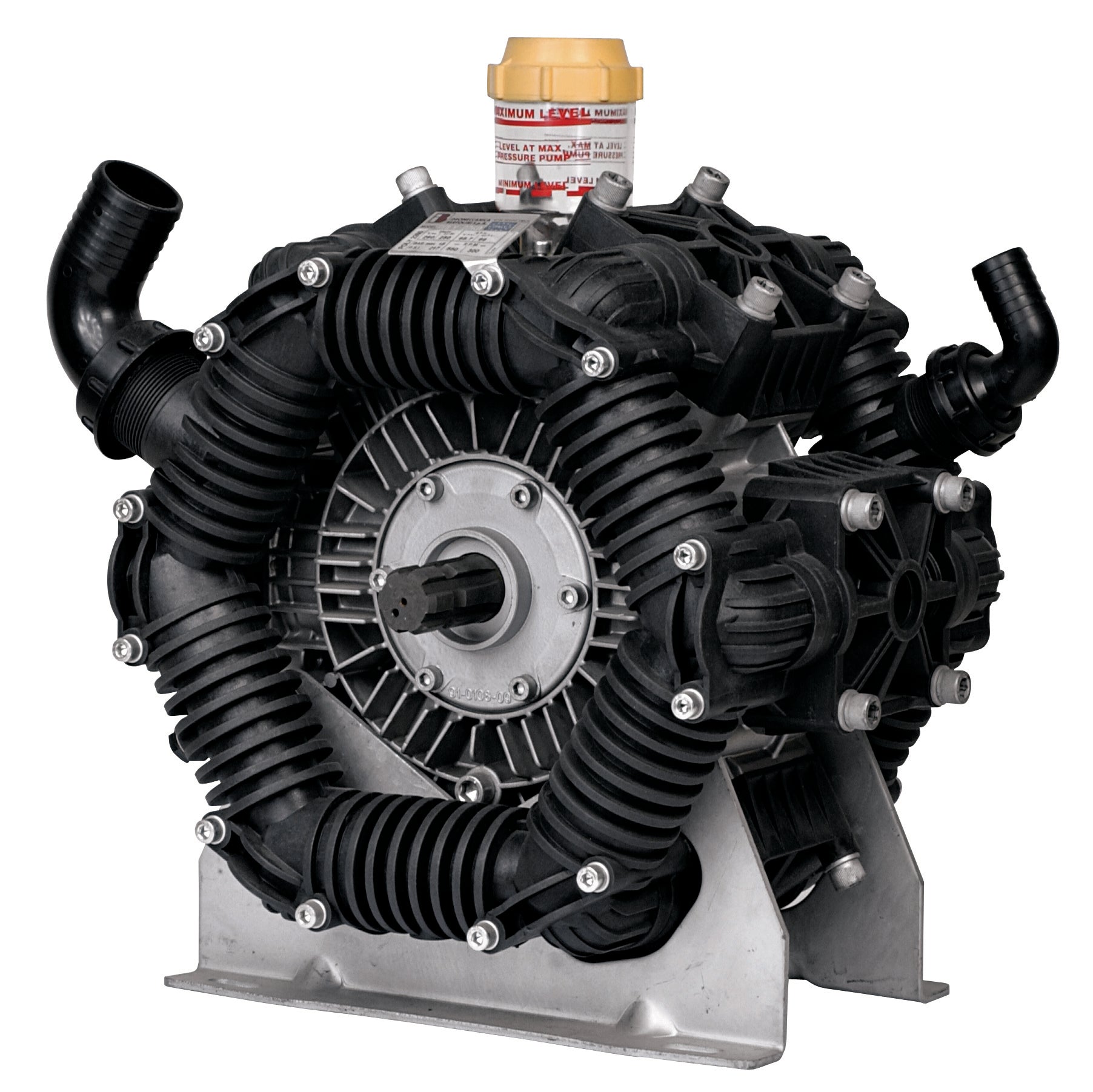

The CDS-John Blue DP-687-P Poly Diaphragm Pump is a high flow commercial pump suited for a wide range of low-pressure applications, including gardening, liquid transfer, and powering large sprayers and washers. From its pre-formed diaphragm material to its short crankshaft stroke, this pump is designed with longevity in mind, and its plastic coated components can withstand corrosion from most industrial and agricultural chemicals. With a high flow rate of up to 68 gpm it outperforms it's peers in the poly pump market.

Manufacturer description

The CDS-John Blue 6-piston, semi-hydraulic, Diaphragm Pump is ideal for gardening, small sprayers, washers, and liquid transfer. It's compact and lightweight and can be driven by PTO, electric motor, or gasoline engine, depending on your specific application needs. All wetted parts are plastic coated to withstand today's agricultural and industrial chemicals. The diaphragms are constructed from chemical resistant elastomers for excellent corrosion resistance.
  • The heads are designed with a patented technology that includes an aluminum die-cast core inside a polypropylene structure offering superior strength.
  • Washers and diaphragm bolts are in 316 stainless steel, an exclusive feature.
  • Die cast crankcase incorporating a new cooling system.
  • New chemically resistant diaphragm material pre-formed to reduce the amount of deflection, increasing diaphragm life. The diaphragm material is compatible with most of the corrosive chemicals on the market t

Features

  • Max flow: 68.7 gpm
  • Max pressure: 218 psi
  • Shaft: 1-3/8" 6-spline male PTO on both ends
  • Port sizes: 2" HB inlet, 1-1/4" NPT outlet
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 6, semi-hydraulic, Desmopan® material
  • Housing: Anodized aluminum
  • Recommended control unit: SC-2660-3 (remote mount)
  • Max fluid temperature: 140°F
  • Weight: 86 lbs
Customer Reviews
4.0 Based on 1 Reviews
Write a Review Ask a Question

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
BE
06/23/2018
B. E.
Replacement pump for hardi sprayer 463-6.5 diaphragm pump

Pump came in secure packaging, had to make a new mount on the sprayer and modify the wire channel because of the height of this pump. Pump worked like it should, no issue with it maintaining GPA in the field. Overall 2 hours of modifications to make it fit compared to an additional 2 grand for a oem pump. Well worth the money
