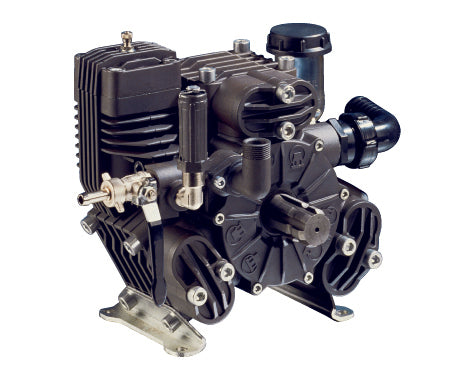

CDS-John Blue DP-185.1 Diaphragm Pump

CDS-John Blue DP-185.1 Diaphragm Pump

Brand:
John Blue
Weight:
33.0 lb
Item #
DP185
1 1

CDS-John Blue DP-185.1 Diaphragm Pump

CDS-John Blue DP-185.1 Diaphragm Pump

Brand:
John Blue
Weight:
33.0 lb
Item #
DP185

$1,593.26
$1,593.26 List Price: $2,124.34

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 4,780 points with this purchase.

See Details

View full details

Product Overview

CDS-John Blue DP-185.1 Diaphragm Pump

18.5 GPM, 580 PSI

3 Diaphragm Pump, 1-1/4" Inlet, 3/4" Outlet.

Features:

-3-diaphragm design.

-Ideal for agriculture and industrial use including horticulture, lawn care, nursery, car wash, air blast orchard/vineyard and poultry houses.

-Various mounting options that make them convenient to mount on sprayers with a PTO drive or can be equipped with either gasoline, electric or hydraulic motors.

-All fluid ends are anodized aluminum.

-Check valves are stainless steel, ideal for protection against most harsh chemicals and abrasion.

-All moving parts are completely submerged in oil, which increases the reliability of the pump.

-Diaphragms are constructed from chemical resistant elastomers that ensure a long pump life even when used with aggressive chemicals.

***Note for No. 40, 41, & 42, order discharge fitting kit DP-31891797***

Resources

Download Product Manual

Parts breakdown

Diagram

Diagram parts

Parts list

  • Piston Diaphragm
    • Ref No: 1
    • Part No: DP23001131
    • Qty Req: 3
    Our price: $28.34 List price: $37.78
  • Valve Assembly
    • Ref No: 2
    • Part No: DP23980597
    • Qty Req: 6
    Our price: $51.77 List price: $69.02
  • SS Diaphragm Washer & Bolt
    • Ref No: 3
    • Part No: DP23005597
    • Qty Req: 3
    Our price: $40.43 List price: $53.91
  • Head
    • Ref No: 5
    • Part No: DP23005209
    • Qty Req: 1
    Our price: $142.87 List price: $190.49
  • Piston Sleeve
    • Ref No: 6
    • Part No: DP23003801
    • Qty Req: 3
    Our price: $134.16 List price: $178.88
  • Oil Cap
    • Ref No: 7
    • Part No: DP85275000
    • Qty Req: 1
    Our price: $27.80 List price: $37.07
  • Bearing
    • Ref No: 8
    • Part No: DP81284600
    • Qty Req: 1
    Our price: $131.19 List price: $174.92
  • Ring
    • Ref No: 9
    • Part No: DP23001976
    • Qty Req: 1
    Our price: $46.00 List price: $61.34
  • Ring
    • Ref No: 10
    • Part No: DP26004776
    • Qty Req: 1
    Our price: $24.85 List price: $33.14
  • Snap Ring
    • Ref No: 11
    • Part No: DP80137700
    • Qty Req: 1
    Our price: $8.81 List price: $11.74
  • Connecting Rod
    • Ref No: 12
    • Part No: DP23000509
    • Qty Req: 3
    Our price: $51.15 List price: $68.21
  • Piston
    • Ref No: 13
    • Part No: DP23004009
    • Qty Req: 3
    Our price: $103.78 List price: $138.37
  • Piston Ring
    • Ref No: 14
    • Part No: DP81851400
    • Qty Req: 6
    Our price: $15.53 List price: $20.70
  • Piston Pin
    • Ref No: 15
    • Part No: DP85200700
    • Qty Req: 3
    Our price: $26.57 List price: $35.42
  • Snap Ring
    • Ref No: 16
    • Part No: DP80002100
    • Qty Req: 6
    Our price: $2.51 List price: $3.35
  • Seal Retainer
    • Ref No: 17
    • Part No: DP17001361
    • Qty Req: 1
    Our price: $13.73 List price: $18.30
  • Screw
    • Ref No: 18
    • Part No: DP86318500
    • Qty Req: 4
    Our price: $3.51 List price: $4.68
  • Oil Seal
    • Ref No: 19
    • Part No: DP80226410
    • Qty Req: 1
    Our price: $66.73 List price: $88.97
  • Spacer
    • Ref No: 20
    • Part No: DP17002476
    • Qty Req: 1
    Our price: $41.96 List price: $55.95
  • Bearing
    • Ref No: 22
    • Part No: DP81297200
    • Qty Req: 1
    Our price: $226.80 List price: $302.40
  • Oil Filler
    • Ref No: 23
    • Part No: DP23000832
    • Qty Req: 1
    Our price: $66.13 List price: $88.17
  • Wing Nut
    • Ref No: 24
    • Part No: DP82006700
    • Qty Req: 1
    Our price: $14.83 List price: $19.77
  • O-Ring
    • Ref No: 26 & 50
    • Part No: DP80320700
    • Qty Req: 1&6
    Our price: $2.70 List price: $3.59
  • Nipple
    • Ref No: 27
    • Part No: DP83509018
    • Qty Req: 1
    Our price: $19.17 List price: $25.55
  • Screw
    • Ref No: 28
    • Part No: DP86273000
    • Qty Req: 2&1
    Our price: $5.76 List price: $7.68
  • Washer
    • Ref No: 29
    • Part No: DP84368500
    • Qty Req: 2
    Our price: $2.43 List price: $3.24
  • O-Ring
    • Ref No: 30
    • Part No: DP80318000
    • Qty Req: 1
    Our price: $2.69 List price: $3.58
  • Gasket
    • Ref No: 31
    • Part No: DP82412000
    • Qty Req: 1
    Our price: $5.95 List price: $7.93
  • Screw
    • Ref No: 32
    • Part No: DP86359000
    • Qty Req: 8
    Our price: $5.01 List price: $6.68
  • Mounting Brackets
    • Ref No: 33
    • Part No: DP23003361
    • Qty Req: 2
    Our price: $59.58 List price: $79.44
  • Retaining Ring
    • Ref No: 35
    • Part No: DP80213450
    • Qty Req: 1
    Our price: $41.15 List price: $54.87
  • O-Ring
    • Ref No: 36
    • Part No: DP80320980
    • Qty Req: 1
    Our price: $6.54 List price: $8.72
  • O-Ring
    • Ref No: 37
    • Part No: DP80321068
    • Qty Req: 1
    Our price: $10.03 List price: $13.37
  • Crankcase Cover
    • Ref No: 38
    • Part No: DP23004609
    • Qty Req: 1
    Our price: $85.60 List price: $114.13
  • Screw
    • Ref No: 39
    • Part No: DP86221600
    • Qty Req: 6
    Our price: $2.42 List price: $3.22
  • Screw
    • Ref No: 40
    • Part No: DP86216800
    • Qty Req: 2
    Our price: $2.39 List price: $3.19
  • Discharge
    • Ref No: 41
    • Part No: DP31109609
    • Qty Req: 1
    Our price: $42.71 List price: $56.95
  • O-Ring
    • Ref No: 42
    • Part No: DP80321800
    • Qty Req: 1
    Our price: $2.84 List price: $3.78
  • 1/4 Turn Valve
    • Ref No: 43
    • Part No: DP84554410
    • Qty Req: 1
    Our price: $139.01 List price: $185.35
  • O-Ring
    • Ref No: 44
    • Part No: DP80317600
    • Qty Req: 1
    Our price: $2.46 List price: $3.29
  • O-Ring
    • Ref No: 45
    • Part No: DP80318900
    • Qty Req: 6
    Our price: $2.60 List price: $3.46
  • Bolt
    • Ref No: 46
    • Part No: DP86357500
    • Qty Req: 4
    Our price: $6.95 List price: $9.27
  • End Cover
    • Ref No: 47
    • Part No: DP23000309
    • Qty Req: 3
    Our price: $116.31 List price: $155.08
  • Screw
    • Ref No: 48
    • Part No: DP86330000
    • Qty Req: 6
    Our price: $3.68 List price: $4.91
  • O-Ring
    • Ref No: 49
    • Part No: DP80321920
    • Qty Req: 6
    Our price: $5.10 List price: $6.81
  • O-Ring
    • Ref No: 51
    • Part No: DP80321900
    • Qty Req: 1
    Our price: $2.45 List price: $3.27
  • Air Valve
    • Ref No: 56
    • Part No: DP86160850
    • Qty Req: 1
    Our price: $12.88 List price: $17.17
  • Ballaster Diaphragm
    • Ref No: 57
    • Part No: DP23004131
    • Qty Req: 1
    Our price: $85.84 List price: $114.45
  • Dampener Body
    • Ref No: 58
    • Part No: DP23003909
    • Qty Req: 1
    Our price: $190.47 List price: $253.96
  • O-Ring
    • Ref No: 59
    • Part No: DP80318200
    • Qty Req: 1
    Our price: $1.38 List price: $1.70
  • Plug G.3/8
    • Ref No: 60
    • Part No: DP85257900
    • Qty Req: 1
    Our price: $11.93 List price: $15.90
  • Washer
    • Ref No: 61
    • Part No: DP82410700
    • Qty Req: 1
    Our price: $2.92 List price: $3.89
  • Screw
    • Ref No: 62
    • Part No: DP86398500
    • Qty Req: 1
    Our price: $7.12 List price: $9.50
  • O-Ring
    • Ref No: 63
    • Part No: DP80321300
    • Qty Req: 1
    Our price: $2.70 List price: $3.61
  • Ballaster Cover
    • Ref No: 64
    • Part No: DP11000409
    • Qty Req: 1
    Our price: $79.44 List price: $105.93
