Product Overview

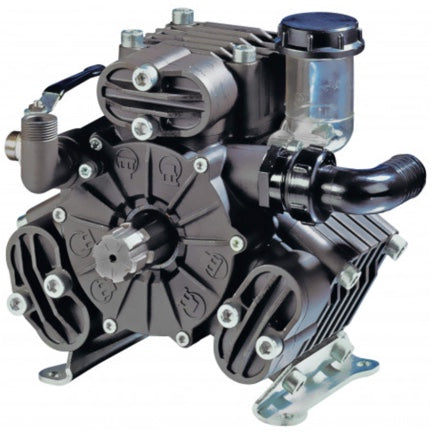

John Blue DP-139 Diaphragm Pump

13.9 GPM, 580 PSI

3 Diaphragm Pump, 1-1/4" Inlet, 1/2" Outlet. Pump has crankshaft flange on one side and 1-3/8" male spline shaft on the opposite side.

Resources

Download Product Manual

Features

  • 3-diaphragm design
  • Ideal for agriculture and industrial use including horticulture, lawn care, nursery, car wash, air blast orchard/vineyard and poultry houses.
  • Various mounting options that make them convenient to mount on sprayers with a PTO drive or can be equipped with either gasoline, electric or hydraulic motors.
  • All fluid ends are anodized aluminum.
  • Check valves are stainless steel, ideal for protection against most harsh chemicals and abrasion.
  • All moving parts are completely submerged in oil, which increases the reliability of the pump.
  • Diaphragms are constructed from chemical resistant elastomers that ensure a long pump life even when used with aggressive chemicals.

Parts breakdown

Diagram

Diagram parts

Parts list

  • Screw
    • Ref No: 1
    • Part No: DP86356000
    • Qty Req: 8
    Our price: $3.82 List price: $5.11
  • Head
    • Ref No: 2
    • Part No: DP23000209
    • Qty Req: 3
    Our price: $222.20 List price: $296.28
  • Diaphragm Washer/Screw Kit
    • Ref No: 3 & 4
    • Part No: DP23004398
    • Qty Req: 3
    Our price: $27.34 List price: $36.47
  • Piston Diaphragm
    • Ref No: 5
    • Part No: DP23001131
    • Qty Req: 3
    Our price: $32.11 List price: $42.81
  • Piston Sleeve
    • Ref No: 6
    • Part No: DP23002001
    • Qty Req: 3
    Our price: $138.76 List price: $185.02
  • Oil Cap
    • Ref No: 7
    • Part No: DP85275000
    • Qty Req: 1
    Our price: $31.49 List price: $42.00
  • Bearing
    • Ref No: 8
    • Part No: DP81284600
    • Qty Req: 1
    Our price: $148.64 List price: $198.18
  • Ring
    • Ref No: 9
    • Part No: DP23001976
    • Qty Req: 1
    Our price: $52.11 List price: $69.49
  • Ring
    • Ref No: 10
    • Part No: DP26004776
    • Qty Req: 1
    Our price: $28.16 List price: $37.54
  • Snap Ring
    • Ref No: 11
    • Part No: DP80137700
    • Qty Req: 1
    Our price: $9.69 List price: $12.91
  • Connecting Rod
    • Ref No: 12
    • Part No: DP23000509
    • Qty Req: 3
    Our price: $57.96 List price: $77.28
  • Piston
    • Ref No: 13
    • Part No: DP23000709
    • Qty Req: 3
    Our price: $103.67 List price: $138.23
  • Piston Ring
    • Ref No: 14
    • Part No: DP81850450
    • Qty Req: 6
    Our price: $17.06 List price: $22.74
  • Piston Pin
    • Ref No: 15
    • Part No: DP85200670
    • Qty Req: 3
    Our price: $19.60 List price: $26.14
  • Snap Ring
    • Ref No: 16
    • Part No: DP80002100
    • Qty Req: 6
    Our price: $2.98 List price: $3.97
  • Seal Retainer
    • Ref No: 17
    • Part No: DP17001361
    • Qty Req: 1
    Our price: $15.10 List price: $20.13
  • Screw
    • Ref No: 18
    • Part No: DP86318500
    • Qty Req: 4
    Our price: $3.86 List price: $5.15
  • Oil Seal
    • Ref No: 19
    • Part No: DP80226410
    • Qty Req: 1
    Our price: $75.60 List price: $100.81
  • Spacer
    • Ref No: 20
    • Part No: DP17002476
    • Qty Req: 1
    Our price: $46.16 List price: $61.55
  • Bearing
    • Ref No: 22
    • Part No: DP81297200
    • Qty Req: 1
    Our price: $256.97 List price: $342.62
  • Oil Filler
    • Ref No: 23
    • Part No: DP23000832
    • Qty Req: 1
    Our price: $74.92 List price: $99.90
  • Wingnut 1-1/4"
    • Ref No: 24
    • Part No: DP82006750
    • Qty Req: 1
    Our price: $19.11 List price: $25.47
  • Hose Barb
    • Ref No: 25
    • Part No: DP84056000
    • Qty Req: 1
    Our price: $52.19 List price: $69.59
  • O-Ring
    • Ref No: 26 & 50
    • Part No: DP80320700
    • Qty Req: 1&6
    Our price: $3.20 List price: $4.25
  • Nipple
    • Ref No: 27
    • Part No: DP83508900
    • Qty Req: 1
    Our price: $45.20 List price: $60.27
  • Screw
    • Ref No: 28
    • Part No: DP86273000
    • Qty Req: 2
    Our price: $6.34 List price: $8.45
  • Washer
    • Ref No: 29
    • Part No: DP84368500
    • Qty Req: 2
    Our price: $2.87 List price: $3.84
  • O-Ring
    • Ref No: 30
    • Part No: DP80318000
    • Qty Req: 1
    Our price: $3.18 List price: $4.24
  • Gasket
    • Ref No: 31
    • Part No: DP82412000
    • Qty Req: 1
    Our price: $6.75 List price: $8.98
  • Screw
    • Ref No: 32
    • Part No: DP86356200
    • Qty Req: 4
    Our price: $5.88 List price: $7.84
  • Mounting Bracket
    • Ref No: 33
    • Part No: DP23001861
    • Qty Req: 2
    Our price: $27.97 List price: $37.29
  • Retaining Ring
    • Ref No: 35
    • Part No: DP80213450
    • Qty Req: 1
    Our price: $45.27 List price: $60.36
  • O-Ring
    • Ref No: 36
    • Part No: DP80320980
    • Qty Req: 1
    Our price: $7.41 List price: $9.88
  • O-Ring
    • Ref No: 37
    • Part No: DP80321068
    • Qty Req: 1
    Our price: $11.36 List price: $15.15
  • Crankcase Cover
    • Ref No: 38
    • Part No: DP23004609
    • Qty Req: 1
    Our price: $101.40 List price: $135.19
  • Screw
    • Ref No: 39
    • Part No: DP86221600
    • Qty Req: 6
    Our price: $2.86 List price: $3.81
  • Screw
    • Ref No: 40
    • Part No: DP86216800
    • Qty Req: 2
    Our price: $2.83 List price: $3.78
  • Discharge Fitting
    • Ref No: 41
    • Part No: DP31891697
    • Qty Req: 1
    Our price: $52.04 List price: $69.40
  • O-Ring
    • Ref No: 42
    • Part No: DP80321800
    • Qty Req: 1
    Our price: $3.37 List price: $4.48
  • 1/4 Turn Valve
    • Ref No: 43
    • Part No: DP84554410
    • Qty Req: 1
    Our price: $152.91 List price: $203.89
  • O-Ring
    • Ref No: 44
    • Part No: DP80317600
    • Qty Req: 1
    Our price: $2.91 List price: $3.89
  • O-Ring
    • Ref No: 45
    • Part No: DP80318900
    • Qty Req: 6
    Our price: $3.08 List price: $4.10
  • Valve Assembly
    • Ref No: 46
    • Part No: DP23980597
    • Qty Req: 6
    Our price: $58.66 List price: $78.20
  • End Cover
    • Ref No: 47
    • Part No: DP23000309
    • Qty Req: 3
    Our price: $127.94 List price: $170.59
  • Screw
    • Ref No: 48
    • Part No: DP86330000
    • Qty Req: 6
    Our price: $4.36 List price: $5.82
  • O-Ring
    • Ref No: 49
    • Part No: DP80321920
    • Qty Req: 6
    Our price: $5.77 List price: $7.71
  • O-Ring
    • Ref No: 51
    • Part No: DP80321900
    • Qty Req: 1
    Our price: $2.90 List price: $3.87
