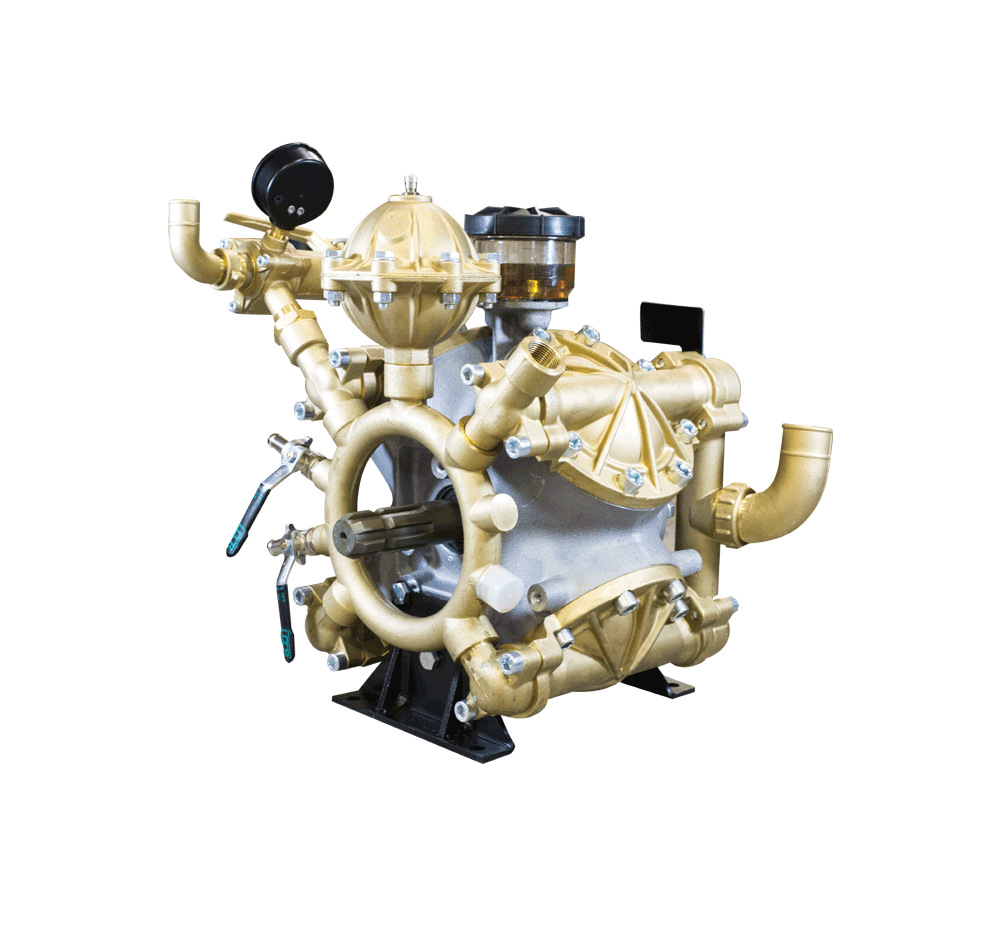

The 4-diaphragms pump BETA 170 produces a flow of 45 GPM and operates at a maximum pressure of 50 bar. It is available with a double-splined shaft.

Semi-Hydraulic diaphragm pump with reinforced brass heads/manifolds suitable for chemical products, dies casted aluminum crankcase, valves with spherical design to increase the volumetric efficiency, pistons with a ring to ensure less wear of the pumping parts.

BETA-170 4-cylinder, high pressure, high volume diaphragm pumps are constructed of anodized aluminum, brass and stainless steel and have anodized aluminum, brass and stainless steel liquid handling parts. Includes mounting rails and control unit with pressure gauge. Simplicity of design and common parts allow for easy and economical maintenance. BETA-170 pumps are excellent choices for various horticultural and agricultural spraying applications.

• Max flow: 45 GPM
• Max pressure: 725 psi
• Max rpm: 550
• Port sizes: Inlet 1-1/2", Outlet (2) 1/2", Bypass 1"
• Weight 130 lb
