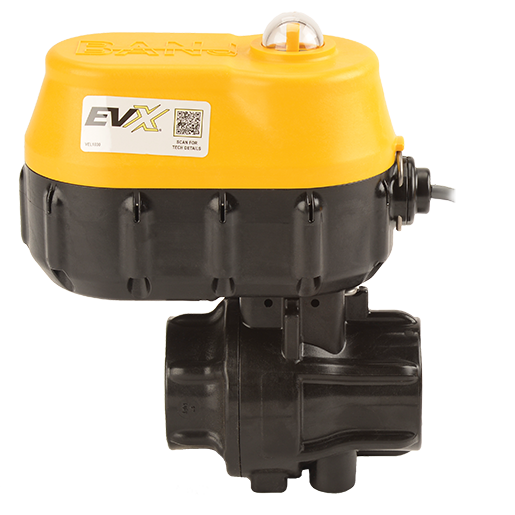

Banjo EVX100 1" 12V Full Port Electric Ball Valve

Banjo EVX100 1" 12V Full Port Electric Ball Valve

Brand:
Banjo
Weight:
4.0 lb
Item #
EVX100

Regular price $330.69
Sale price $330.69 Regular price List Price: $688.94

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 992 points with this purchase.

View full details

Collapsible content

Product Overview

**No longer available - replaced by EVX101. If purchased you will receive an EVX101 if in stock**

Banjo believes in continually innovating their products to keep your spray equipment as efficient and effective as possible. The new EVX electric valves are the latest example and are smarter, smaller and tougher than any valve on the market. Can adapt to any sprayer with ease and rigorous factory testing (52 separate durability tests) ensures less breakdowns and lost time.

Manufacturer description

The latest advancements in electric actuator technology and valve design engineered with Banjo reliability.

Proprietary polypropylene formulation ensures durability and enables injection molding to precision tolerances

• Welded construction supports sleek, compact valve design while eliminating a leak point
• Bottom-located threaded inserts provide versatile mounting solution
• Hollow stainless steel ball lessens weight and maintains valve performance
• Female NPT and manifold flange connections offer plumbing options
• Modular design facilitates easy actuator and valve replacement
• Attachable handle is available for purchase to turn into manual valve

Wiring:

ON/OFF Valves
• Red = +12V DC
• Black = Ground
• White = +12VDC (Open) 0VDC (Close)

Features

  • Thread size: 1" Female NPT inlet and outlet
  • Max pressure: 300 psi
  • Material: Fiberglass reinforced polypropylene
  • Voltage: 12 VDC
  • 1" opening thru ball
  • 316 SS ball and stem
  • SS hardware
  • PTFE seats
  • FKM stem seals
  • Open/closed indicator
  • On/Off is 3/4 second response time
  • IP68 waterproof
  • Actuator rated to 500,000 cycles
  • Valve rated to 50,000 cycles leak free
  • 100G's shock rating
  • -20° to 150° degree operating temperature
  • Additional options available including PWM to CAN/ISO BUS to BlueTooth wireless technology

Parts breakdown

Diagram

Diagram parts
