B&G SSI-14 28" Sub Slab Injector

B&G SSI-14 28" Sub Slab Injector

Brand:
B & G Equipment
Weight:
12.0 lb
Item #
SSI14
1 1

B&G SSI-14 28" Sub Slab Injector

B&G SSI-14 28" Sub Slab Injector

Brand:
B & G Equipment
Weight:
12.0 lb
Item #
SSI14

$566.08
$566.08 List Price: $595.86

Earn 1,698 points with this purchase.

See Details

View full details

Product Overview

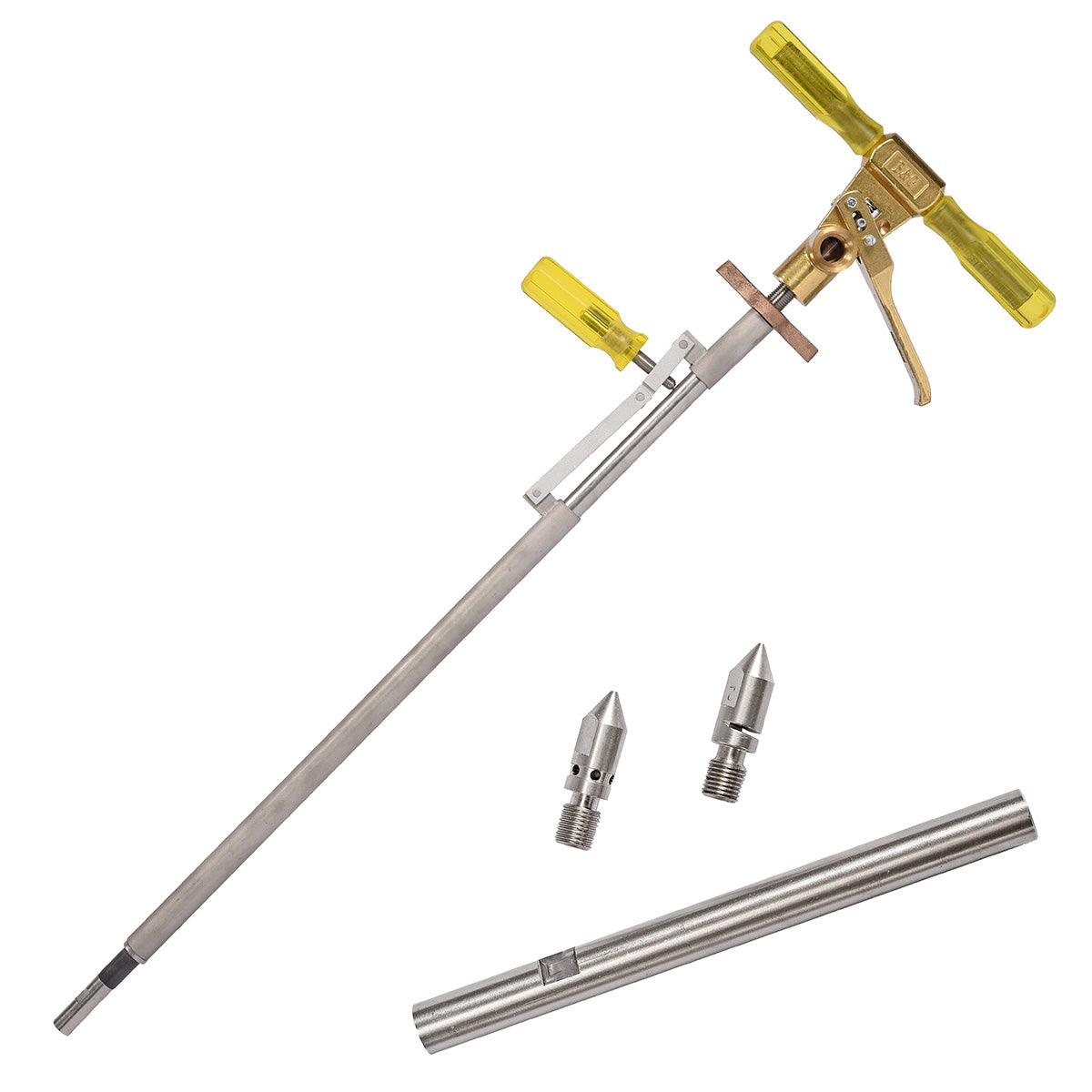

B&G SSI-14 28" Sub Slab Injector

Features:

-28" Tool Height

-1/2" Internal Rod

-Includes 360º 2 GPM Tip, 180º 2 GPM Tip and Tip Shut-Off

Resources

Download Product Manual

Parts breakdown

Diagram

Diagram parts

Parts list

  • Valve Assembly (SSI-4, SSI-14)
    • Ref No: 1
    • Part No: VT610
    • Qty Req: 1
    Our price: $80.35 List price: $84.58
  • Rod Spring
    • Ref No: 2
    • Part No: VT618
    • Qty Req: 1
    Our price: $3.69 List price: $3.87
  • Valve Rod
    • Ref No: 4
    • Part No: 2673
    • Qty Req: 1
    Our price: $32.39 List price: $34.09
  • Valve Trigger
    • Ref No: 5
    • Part No: VT611
    • Qty Req: 1
    Our price: $44.14 List price: $46.46
  • Trigger Pin
    • Ref No: 6
    • Part No: VT609
    • Qty Req: 1
    Our price: $14.86 List price: $15.64
  • Trigger Nut
    • Ref No: 7
    • Part No: TN45
    • Qty Req: 3
    Our price: $2.61 List price: $2.75
  • Spacer
    • Ref No: 8
    • Part No: 1138
    • Qty Req: 1
    Our price: $8.37 List price: $8.80
  • Rod Screw
    • Ref No: 9
    • Part No: VT612
    • Qty Req: 1
    Our price: $5.32 List price: $5.60
  • Trigger Lock
    • Ref No: 10
    • Part No: VT615
    • Qty Req: 1
    Our price: $14.48 List price: $15.25
  • Trigger Spring
    • Ref No: 11
    • Part No: VT616
    • Qty Req: 1
    Our price: $3.19 List price: $3.36
  • Trigger Screw
    • Ref No: 12
    • Part No: VT617
    • Qty Req: 1
    Our price: $0.95 List price: $0.99
  • Wing Nut
    • Ref No: 13
    • Part No: 22065300
    • Qty Req: 1
    Our price: $34.94 List price: $36.78
  • Extension Rod for SSI-14
    • Ref No: 14
    • Part No: 2675
    • Qty Req: 1
    Our price: $17.18 List price: $18.08
  • Shaft for SSI-14
    • Ref No: 15
    • Part No: 2669
    • Qty Req: 1
    Our price: $123.69 List price: $130.20
  • 500 Lock Sleeve SSI-14
    • Ref No: 16
    • Part No: 22065500
    • Qty Req: 1
    Our price: $169.66 List price: $178.59
  • Seat Stem
    • Ref No: 18
    • Part No: 2676
    • Qty Req: 1
    Our price: $11.33 List price: $11.93
  • Seat Gasket
    • Ref No: 19
    • Part No: 2677
    • Qty Req: 1
    Our price: $13.78 List price: $14.50
  • Stud
    • Ref No: 20
    • Part No: 2678
    • Qty Req: 1
    Our price: $40.59 List price: $42.74
  • Compression Ring
    • Ref No: 21
    • Part No: 22065600
    • Qty Req: 1
    Our price: $14.48 List price: $15.25
  • Expansion Ring Gasket
    • Ref No: 22
    • Part No: 22065800
    • Qty Req: 1
    Our price: $5.32 List price: $5.60
  • Tip Adapter
    • Ref No: 23
    • Part No: 1370
    • Qty Req: 1
    Our price: $47.78 List price: $50.30
  • 6" Extension
    • Ref No: 24
    • Part No: LDT36
    • Qty Req: 1
    Our price: $61.22 List price: $64.43
  • 360_ 2 GPM Tip
    • Ref No: 25
    • Part No: 1390
    • Qty Req: 1
    Our price: $49.34 List price: $51.94
  • 180_ Fan Tip 2 GPM
    • Ref No: 26
    • Part No: 1542
    • Qty Req: 1
    Our price: $48.55 List price: $51.10
