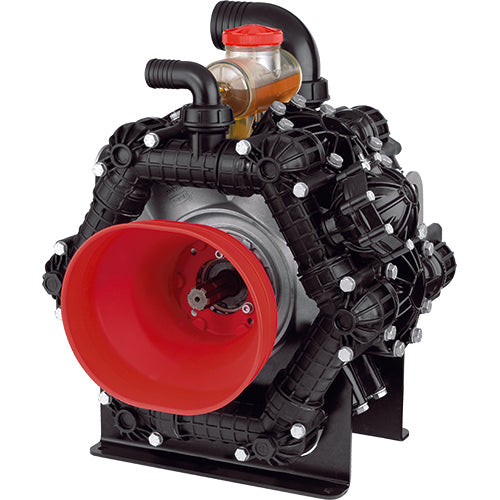

AR460BP-C/C Diaphragm Pump

AR460BP-C/C Diaphragm Pump

Item Code:
173.0 lb
Our price:
List price:

The AR460BP-C/C diaphragm pump is widely used in the commercial, industrial and agricultural sprayer industries. With a flow rate up to 119 gpm and max pressure of 290 psi it is optimal for medium or large-sized sprayers, assisting in the targeted distribution of your liquid product onto desired surfaces for consistent, even coverage every time. This model is equipped with dual male PTO shafts.

Manufacturer Description:

Annovi Reverberi is the number one agricultural diaphragm pump manufacturer in the world. Our versatile pumps have been used in a multitude of applications for more than 5 decades in 85 countries worldwide. They are self-priming, with flows from 3.5 to 238 GPM and pressures up to 725 PSI, these pumps can feature the revolutionary AR BLUEFLEX diaphragms. BLUEFLEX is what we believe is the best performing diaphragm material currently available in the market.

  • Alternating volumetric pumps with six semi-hydraulic diaphragms for use in agriculture in low pressure systems for spraying open field* crops with fertilisers, pesticides or weed killers
  • Parts in contact with pumped liquids in plastic-coated aluminium and stainless steel
  • Diaphragms in NBR, H.P.D.S., Desmopan or Viton. Seals in NBR or Viton
  • Die-cast casing with oil-immersed mechanism and clear plastic tank for visual level checking
  • Pistons with ring for a more efficient "oil cushion" system to protect the diaphragm
  • New-design diaphragm cut-out system to prevent contact tearing even in heavy-duty operating conditions
  • Spherical sector profile valves for lower flow resistance and improved volumetric efficiency
  • Rugged feet secured to pump casing
  • GEOMET coated or stainless steel metal fasteners


  • Max flow: 119 gpm
  • Max pressure: 290 psi
  • Shaft: 1-3/8" 6-spline male PTO on both ends
  • Port sizes: 3" HB inlet, 1-1/2" HB outlet
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 6, semi-hydraulic, BlueFlex® material
  • Housing: Anodized aluminum
  • Recommended control unit: VSP400 or VSP600
  • Max fluid temperature: 140°F
  • Weight: 173 lbs
