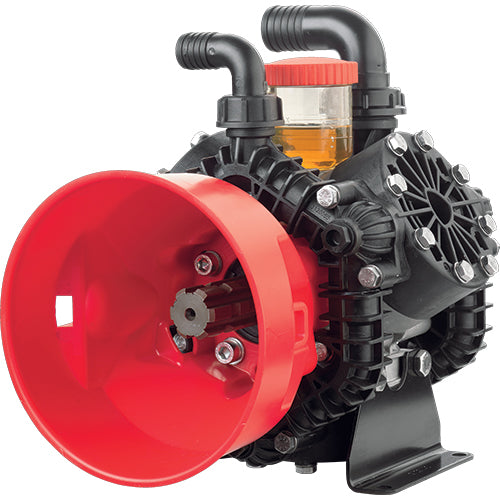

AR45LFP-C Diaphragm Pump
AR45LFP-C Diaphragm Pump
Brand:
AR
Weight:
24.0 lb
Item #
AR45LFPC
Regular price
$739.51
Sale price
$739.51
Regular price
List Price:
$1,344.56
Unit price
per
Free Shipping on Qualified Orders Over $100
In stock orders placed withinship out same day. Learn more
Couldn't load pickup availability

Earn 2,219 points with this purchase.

Collapsible content
Product Overview
The AR45LFP-C diaphragm pump is widely used in the commercial, industrial and agricultural sprayer industries. Manufactured with poly heads and manifolds for top corrosion resistance. With a flow rate up to 11.4 gpm and max pressure of 290 psi it is optimal for small or medium-sized sprayers, assisting in the targeted distribution of your liquid product onto desired surfaces for consistent, even coverage every time. This model is equipped with a male PTO shaft.
Manufacturer description
Annovi Reverberi is the number one agricultural diaphragm pump manufacturer in the world. Our versatile pumps have been used in a multitude of applications for more than 5 decades in 85 countries worldwide. They are self-priming, with flows from 3.5 to 238 GPM and pressures up to 725 PSI, these pumps can feature the revolutionary AR BLUEFLEX diaphragms. BLUEFLEX is what we believe is the best performing diaphragm material currently available in the market. Annovi Reverberi AR45LFP-C liquid fertilizer and pesticide low pressure diaphragm pump. Three semi-hydraulic diaphragms. Single male cardan shaft. For use in the gardening or professional agricultural sectors, base-mounted in combination with PTO’s, electric motors or internal combustion engines for gardening, and small sprayers for medium-pressure pesticide treatments in gardens, greenhouses, orchards or vineyards.
- Semi-hydraulic three-diaphragm pump, for use with aggressive products in low pressure systems
Resources
Features
- Max flow: 11.4 gpm
- Max pressure: 290 psi
- Shaft: 1-3/8" 6-spline male PTO
- Port sizes: 1-1/4" HB inlet, 3/4" NPT outlet
- Pump shaft rotation: CW and CCW
- Diaphragms: 3, semi-hydraulic, BlueFlex® material
- Housing: Anodized aluminum
- Head & Manifold material: Poly
- Recommended control unit: GS25S
- Max fluid temperature: 140°F
- Weight: 24 lbs
