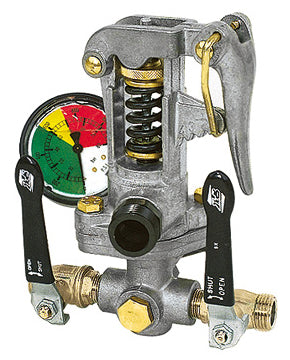

AR GI40 Regulator

AR GI40 Regulator

Brand:
AR
Weight:
0.25 lb
Item #
GI40

$156.09
$156.09 List Price: $323.44

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 468 points with this purchase.

See Details

View full details

Product Overview

The AR GI40 Control Unit/Regulator is designed for AR pump models AR30, AR40, and AR50 to deliver smooth, consistent sprayer performance. Rated for up to 21 GPM and 580 PSI, it includes a glycerin-filled pressure gauge, full bypass lever, one ¾” hose barb bypass port, and two ½” outlet ports. Built for durability and precise pressure control, it helps keep your sprayer system running efficiently and reliably.

Features

  • Mounts to pump models: AR30, AR40 and AR50
  • Max flow: 21 GPM
  • Max pressure: 580 PSI
  • Port sizes: ¾" hose barb bypass, two ½" hose barb outlets with individual shut- off valves
  • Pressure gauge: 0-1000 psi, glycerine-filled, color coded

Parts breakdown

Diagram

Diagram parts

Parts list

  • Relief Valve Body
    • Ref No: 1
    • Part No: 9910620220
    • Qty Req: 1
    Our price: $82.04 List price: $88.67
  • Plug
    • Ref No: 2
    • Part No: 9910130171
    • Qty Req: 1
    Our price: $4.99 List price: $6.27
  • Outlet ball valve w/o barb
    • Ref No: 3
    • Part No: 9910130491
    • Qty Req: 2
    Our price: $36.35 List price: $51.92
  • Nut
    • Ref No: 4
    • Part No: 9910390270
    • Qty Req: 2
    Our price: $1.83 List price: $2.28
  • Spring Holder
    • Ref No: 5
    • Part No: 9910450110
    • Qty Req: 1
    Our price: $18.56 List price: $23.80
  • O-Ring
    • Ref No: 6
    • Part No: 9910550350
    • Qty Req: 2
    Our price: $1.95 List price: $2.19
  • 9910-550545 Pressure Gauge (Color Coded, Oil-Filled)
    • Ref No: 7
    • Part No: 9910550545
    • Qty Req: 1
    Our price: $64.15 List price: $78.14
  • Bolt
    • Ref No: 8
    • Part No: 9910180370
    • Qty Req: 2
    Our price: $4.36 List price: $4.95
  • Tension Spring
    • Ref No: 10
    • Part No: 9910320420
    • Qty Req: 1
    Our price: $7.66 List price: $9.81
  • Relief Valve Seat (Urethane-Red) for Hypro GS40GI Regulators
    • Ref No: 11
    • Part No: 9910110121
    • Qty Req: 1
    Our price: $8.46 List price: $10.32
  • Relief Valve Seat (Viton-Black) for Hypro GS40GI Regulators
    • Ref No: 11
    • Part No: 9910110122
    • Qty Req: 1
    Our price: $34.57 List price: $44.33
  • Relief Valve Poppet Retainer
    • Ref No: 12
    • Part No: 9910320433
    • Qty Req: 1
    Our price: $17.77 List price: $21.42
  • Gasket Seal O-Ring for GS40GI Regulators
    • Ref No: 13
    • Part No: 9910320511
    • Qty Req: 1
    Our price: $4.89 List price: $5.87
  • Tension Spring Guide/Seal
    • Ref No: 14
    • Part No: 9910390140
    • Qty Req: 1
    Our price: $9.75 List price: $12.50
  • Hose Barb 3/4"
    • Ref No: 15
    • Part No: 9910550460
    • Qty Req: 1
    Our price: $5.81 List price: $7.46
  • Adaptor
    • Ref No: 16
    • Part No: 9910550440
    • Qty Req: 1
    Our price: $5.04 List price: $6.47
  • Support Housing
    • Ref No: 17
    • Part No: 9910320410
    • Qty Req: 1
    Our price: $59.94 List price: $70.30
  • Pin
    • Ref No: 18
    • Part No: 9910320480
    • Qty Req: 2
    Our price: $3.25 List price: $4.17
  • Lever Guide
    • Ref No: 19
    • Part No: 9910320460
    • Qty Req: 1
    Our price: $30.31 List price: $33.92
  • Pressure Release Lever
    • Ref No: 20
    • Part No: 9910320470
    • Qty Req: 1
    Our price: $24.74 List price: $28.86
  • Locking Clip
    • Ref No: 21
    • Part No: 9910320490
    • Qty Req: 1
    Our price: $8.04 List price: $10.32
  • Pressure Adjustment Nut
    • Ref No: 22
    • Part No: 9910320450
    • Qty Req: 1
    Our price: $10.35 List price: $13.27
  • Threaded Guide
    • Ref No: 23
    • Part No: 9910320440
    • Qty Req: 1
    Our price: $10.17 List price: $13.05
  • Tension Spring
    • Ref No: 24
    • Part No: 9910110190
    • Qty Req: 1
    Our price: $6.31 List price: $8.10
  • Tension Spring Retainer
    • Ref No: 25
    • Part No: 9910230120
    • Qty Req: 1
    Our price: $5.79 List price: $7.43
  • Remote Discharge Mounting Bracket
    • Ref No: 28
    • Part No: 9910320406
    • Qty Req: 1
    Our price: $38.26 List price: $47.61
  • Discharge Flange Housing
    • Ref No: 30
    • Part No: 9910450145
    • Qty Req: 1
    Our price: $39.67 List price: $50.87
  • Barb Nut
    • Ref No: 31
    • Part No: 9910550450
    • Qty Req: 1
    Our price: $4.55 List price: $5.84
  • Bolt (M8 X 35)
    • Ref No: 33
    • Part No: 9910160660
    • Qty Req: 2
    Our price: $1.69 List price: $1.84
  • O-Ring
    • Ref No: 36
    • Part No: 9910880830
    • Qty Req: 1
    Our price: $2.06 List price: $2.30
  • O-Ring
    • Ref No: 38
    • Part No: 9910180101
    • Qty Req: 1
    Our price: $1.74 List price: $1.89
  • 1/2" Hose Barb & Nut
    • Ref No: 39
    • Part No: 9910110130
    • Qty Req: 2
    Our price: $16.40 List price: $18.09
  • 3/8" Hose Barb & Nut
    • Ref No: 39
    • Part No: 9910110131
    • Qty Req: 2
    Our price: $12.12 List price: $15.53
  • Nut
    • Ref No: 41
    • Part No: 99101040790
    • Qty Req: 1
    Our price: $17.51 List price: $22.46
  • Barb
    • Ref No: 42
    • Part No: 99101150580
    • Qty Req: 1
    Our price: $16.48 List price: $21.13
  • Outlet ball valve w/o barb
    • Ref No: 43
    • Part No: AR130492
    • Qty Req: 1
    Our price: $39.12 List price: $51.92
  • Regulator Valve (Top Half of GS40GI)
    • Ref No: 47
    • Part No: 99101923
    • Qty Req: 1
    Our price: $156.09 List price: $227.65
