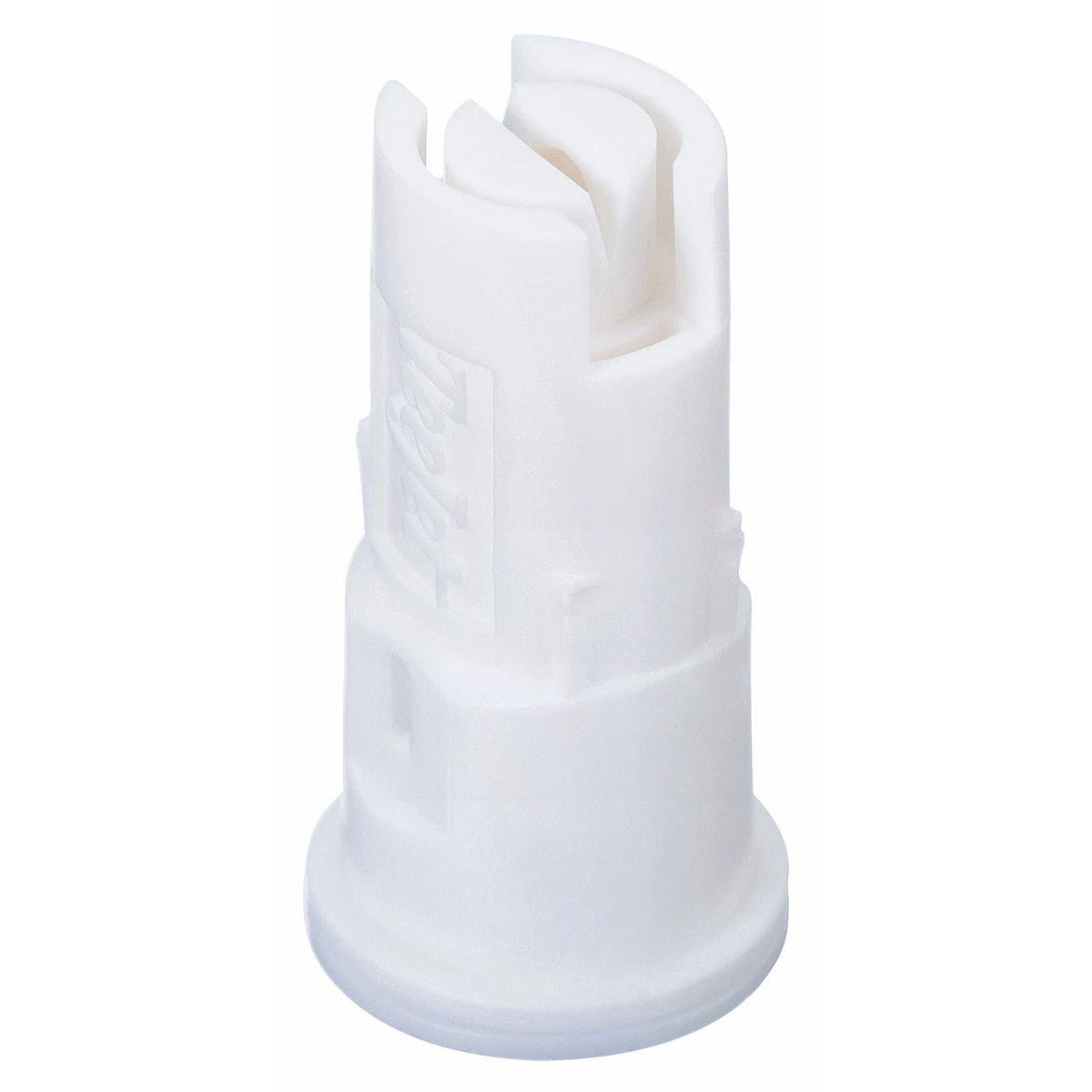

AIXR11008VP TeeJet Air Induction XR

AIXR11008VP TeeJet Air Induction XR

Item Code:
AIXR11008VP
Weight:
0.01 lb
Manufacturer:
TeeJet
Our price:
$6.25
List price:
$10.41
Overview:

AIXR11008VP TeeJet Air Induction XR Flat Spray Tips. 110º, Polymer.

110º wide, tapered flat spray angle with air induction technology offers better drift managment. Made of a two-piece UHMWPE polymer construction with VisiFlo color-coding. UHMWPE provides excellent chemical resistance, including acids, as well as exceptional wear life. Compact size to prevent tip damage. Depending on the chemical, produces large air-filled drops through a Venturi air aspirator. Removable pre-orifice.

Available in 9 tip capacities with a wide operating pressure range: 15-90 psi (1-6 bar).

Manufacturer Description:

New addition to the AIXR line with increased flow rates for applications requiring high water volume. Most commonly used on golf courses. The cap required for the 08-10 is different from the smaller capacities - part number 255983NYR is most common.

Features:

Flow rate at 40 psi: .8 gpm
Pressure range: 15-90 psi
Common use: Golf course

Parts breakdown
