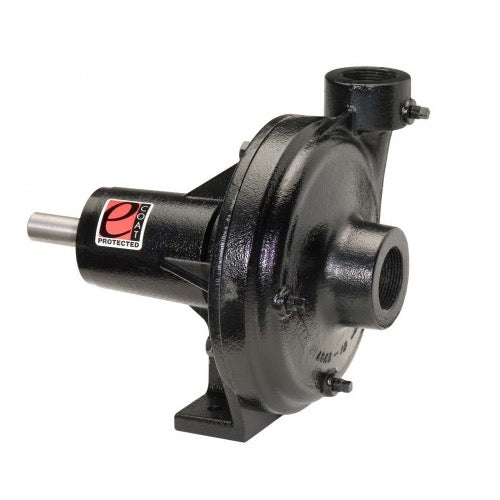

Ace FMC-CW-650 Belt Driven Centrifugal Pump
Overview:
Ace FMC-CW-650 Belt Driven Centrifugal Pump
Manufacturer Description:
- Modified Impeller Design - Higher Pressure at Lower RPM
- Durable E-Coating Inside and Out for Excellent Corrosion Resistance
- Oversized Bearings for Extended Life
- 5" Solid Steel Dual Belt Pulley for Single or Double Belts
- Heavy Duty 12 Volt DC Magnetic Clutch Transmits up to 44 HP at 4000 RPM
- Clockwise Rotation when Facing Pulley End
Features:
- Port sizes: Inlet 220 Flange & 1-1/2" NPT, Outlet 200 Flange & 1-1/4" NPT
- Max Pressure: 160 PSI
- Max Flow: 170 GPM
- Weight: 28 lbs
