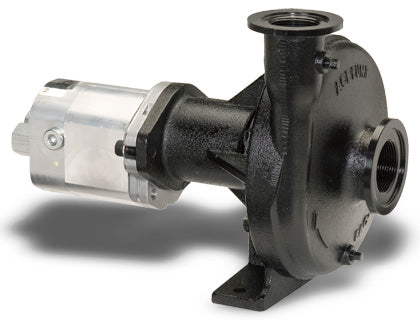

Ace Cast Iron Hydraulic Driven Centrifugal Pump

Model #: FMC-650F-HYD

Centrifugal pump design provides great resistance to abrasive solutions and extra flow for agitation.  The advantages of the hydraulic motor driven pump are mounting versatility, customized performance and ease of maintenance.  All hydraulic driven pumps are equipped with a stainless steel shaft and wear ring for excellent corrosion resistance.

Features:

• Max flow: 170 gpm
• Max pressure: 160 psi
• Port sizes: 220 Full Port Flange & 1-1/2" FNPT Suction, 200 Standard Port Flange & 1-1/4" FNPT Discharge
• Pump material: E-Coated Cast Iron
• Hydraulic motor: Requires 14 gpm hydraulic flow on closed and open systems
• Seal material: Viton® Carbon/Ceramic (Optional Severe Duty Silicon Carbide available)
• Impeller material:  Chemical Resistant Valox® (Optional  Cast Iron)

Download Product Manual
