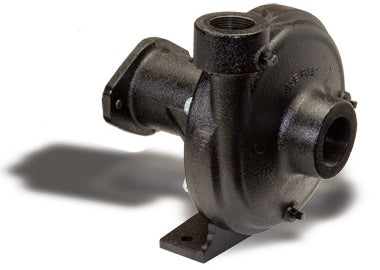

Ace Cast Iron Hydraulic Driven Centrifugal Pump

Model #: FMC-650-HYD-LM

For Ace Model Pumps:

FMC-650-HYD

Centrifugal pump design provides great resistance to abrasive solutions and extra flow for agitation.  The advantages of the hydraulic motor driven pump are mounting versatility, customized performance and ease of maintenance.  All hydraulic driven pumps are equipped with a stainless steel shaft and wear ring for excellent corrosion resistance.

Features:

• Max flow: 140 gpm
• Max pressure: 160 psi
• Port sizes: 1-1/2" FNPT Suction, 1-1/4" FNPT Discharge
• Pump material: E-Coated Cast Iron
• Seal material: Viton® Carbon/Ceramic (Optional Severe Duty Silicon Carbide available)
• Impeller material:  Chemical Resistant Valox® (Optional  Cast Iron)

Download Product Manual
