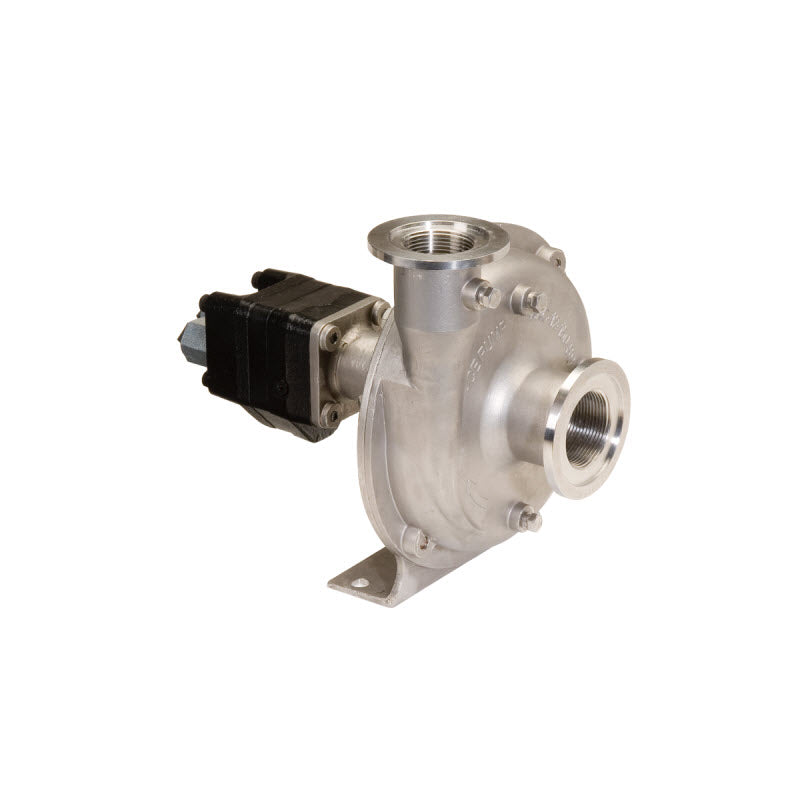

Ace FMC-150FS-HYD-206-CI Centrifugal Pump
Ace FMC-150FS-HYD-206-CI Centrifugal Pump
Brand:
Ace Pumps
Weight:
28.0 lb
Item #
FMC150FSHYD206CI
Ace FMC-150FS-HYD-206-CI Centrifugal Pump
Ace FMC-150FS-HYD-206-CI Centrifugal Pump
Brand:
Ace Pumps
Weight:
28.0 lb
Item #
FMC150FSHYD206CI
Regular price
$1,782.60
Sale price
$1,782.60
Regular price
List Price:
$2,971.00
Unit price
per
Couldn't load pickup availability
Earn 5,348 points with this purchase.
Collapsible content
Product Overview
Ace FMC-150FS-HYD-206-CI Hydraulic Motor Driven Centrifugal Pump.
135 gpm, 120 psi. 7 gpm Hydraulic Max.
316 stainless steel centrifugal driven by a 7 GPM hydraulic motor with integral needle valve. Inlet 220 full port flange & 1-1/2” NPT. Outlet 200 standard port flange & 1-1/4” NPT
Features:
-Suction 220 Flange & 1-1/2" NPT, Discharge 200 Flange & 1-1/4" NPT.
-Recommended for use on the following Hydraulic Systems: Pressure compensating closed center, load sensing or pressure flow compensating closed center, open center up to 16 gpm.
-Integral needle valve bypasses up to 9 gpm on open center systems.
-Standard Viton Carbon/Ceramic seal or optional severe duty silicon carbide mechanical seal.
-Chemical resistant Valox or optional Cast Iron impeller.
Stainless Steel shaft and wear ring.
135 gpm, 120 psi. 7 gpm Hydraulic Max.
316 stainless steel centrifugal driven by a 7 GPM hydraulic motor with integral needle valve. Inlet 220 full port flange & 1-1/2” NPT. Outlet 200 standard port flange & 1-1/4” NPT
Features:
-Suction 220 Flange & 1-1/2" NPT, Discharge 200 Flange & 1-1/4" NPT.
-Recommended for use on the following Hydraulic Systems: Pressure compensating closed center, load sensing or pressure flow compensating closed center, open center up to 16 gpm.
-Integral needle valve bypasses up to 9 gpm on open center systems.
-Standard Viton Carbon/Ceramic seal or optional severe duty silicon carbide mechanical seal.
-Chemical resistant Valox or optional Cast Iron impeller.
Stainless Steel shaft and wear ring.
