AA31-1/4F Trigger Valve 1/4" FNPT Inlet

AA31-1/4F Trigger Valve 1/4" FNPT Inlet

Brand:
TeeJet
Weight:
0.86 lb
Item #
AA3114F
1 1

AA31-1/4F Trigger Valve 1/4" FNPT Inlet

AA31-1/4F Trigger Valve 1/4" FNPT Inlet

Brand:
TeeJet
Weight:
0.86 lb
Item #
AA3114F

$68.60
$68.60 List Price: $114.33

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 206 points with this purchase.

See Details

View full details

Product Overview

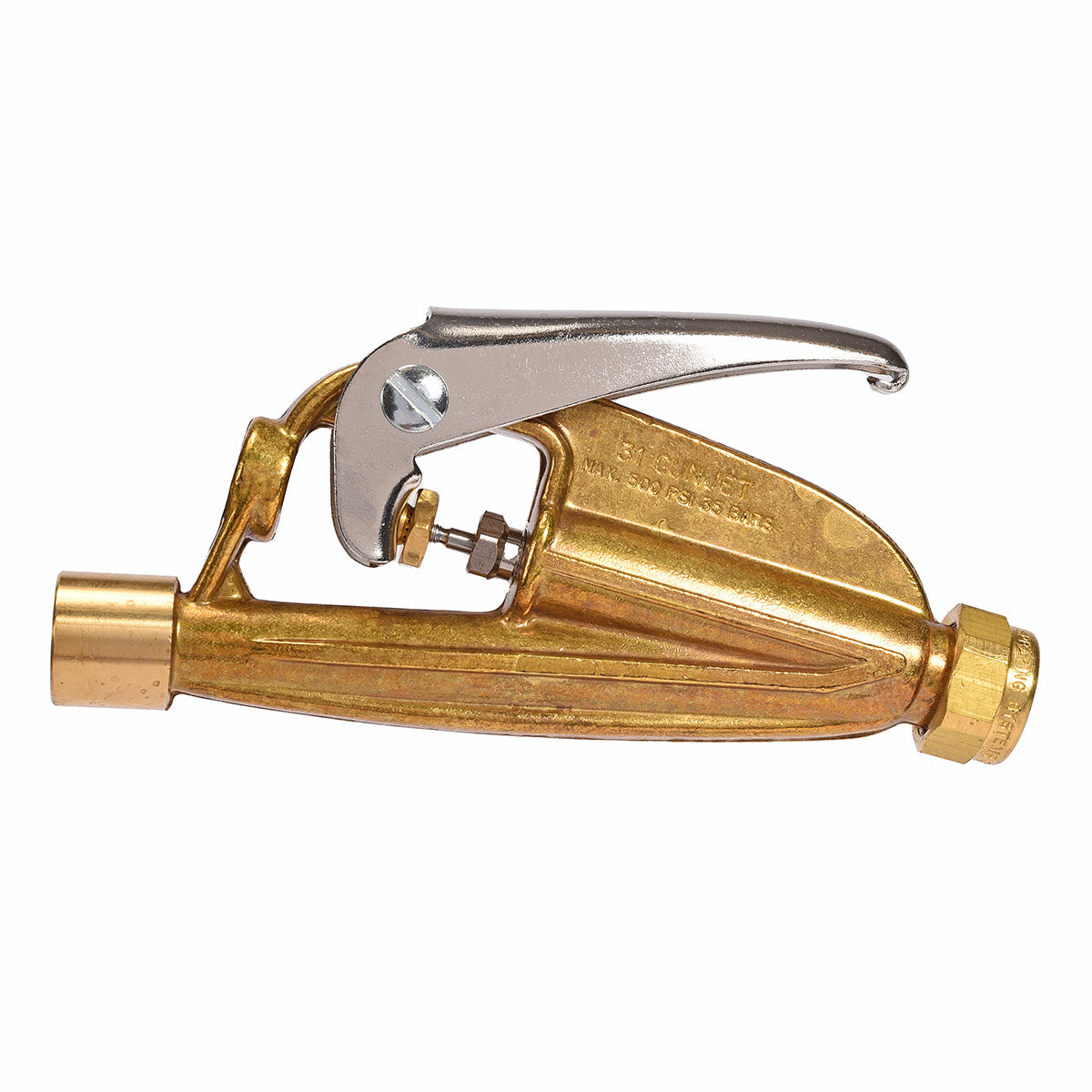

AA31 Spraying Systems/TeeJet Trigger Valve. (Male Inlet version shown in picture)

500 PSI Max, 1/4" NPT (F) Inlet Connection.

Comfortable palm fitting gun for use with any TeeJet spray tip.

Forged brass body and nickle-plated steel trigger. Teflon® valve seat and packing, stainless steel valve stem. Also available with 1/4" NPT (M) inlet connection.

Parts breakdown

Diagram

Diagram parts

Parts list

  • TeeJet CP1325 Brass Cap
    • Ref No: 1
    • Part No: CP1325
    • Qty Req: 1
    Our price: $1.29 List price: $2.15
  • Seat, Brass & Teflon®
    • Ref No: 3
    • Part No: CP7490BRTF
    • Qty Req: 1
    Our price: $5.37 List price: $8.95
  • Stem & Guide Sub-Assembly
    • Ref No: 4
    • Part No: CP90321BRSS
    • Qty Req: 1
    Our price: $5.65 List price: $9.41
  • Spring
    • Ref No: 5
    • Part No: CP9134302SS
    • Qty Req: 1
    Our price: $2.25 List price: $3.75
  • Trigger
    • Ref No: 7
    • Part No: CP9033INP
    • Qty Req: 1
    Our price: $7.70 List price: $12.84
  • Screw
    • Ref No: 8
    • Part No: CP90341IZP
    • Qty Req: 1
    Our price: $2.35 List price: $3.91
  • Screw
    • Ref No: 9
    • Part No: CP90342IZP
    • Qty Req: 1
    Our price: $1.46 List price: $2.44
  • Teflonå¨ Packing (Standard)
    • Ref No: 10
    • Part No: CP74871TEF
    • Qty Req: 3
    Our price: $3.53 List price: $5.88
  • Leather Packing (Optional)
    • Ref No: 10
    • Part No: CP7487LEA
    • Qty Req: 4
    Our price: $1.42 List price: $2.37
  • Packing Screw
    • Ref No: 11
    • Part No: CP7485ENP
    • Qty Req: 1
    Our price: $2.98 List price: $4.96
  • Lock Nut
    • Ref No: 12
    • Part No: CP9035
    • Qty Req: 1
    Our price: $1.46 List price: $2.44
  • Strainer Body
    • Ref No: 14
    • Part No: CP8633NP
    • Qty Req: 1
    Our price: $7.16 List price: $11.94
  • Screen Support
    • Ref No: 15
    • Part No: CP8634
    • Qty Req: 1
    Our price: $3.09 List price: $5.15
  • 100 Mesh Screen for TeeJet AA31 Trigger Valve
    • Ref No: 16
    • Part No: CP3929100SS
    • Qty Req: 1
    Our price: $2.39 List price: $3.98
  • 50 Mesh Screen for TeeJet AA31 Trigger Valve
    • Ref No: 16
    • Part No: CP392950SS
    • Qty Req: 1
    Our price: $2.39 List price: $3.98
  • Gasket, Nylon
    • Ref No: 17
    • Part No: CP8635NY
    • Qty Req: 1
    Our price: $1.42 List price: $2.37
  • Brass Body (AA31-1/4F)
    • Ref No: 18A
    • Part No: CP90621
    • Qty Req: 1
    Our price: $39.05 List price: $65.08
