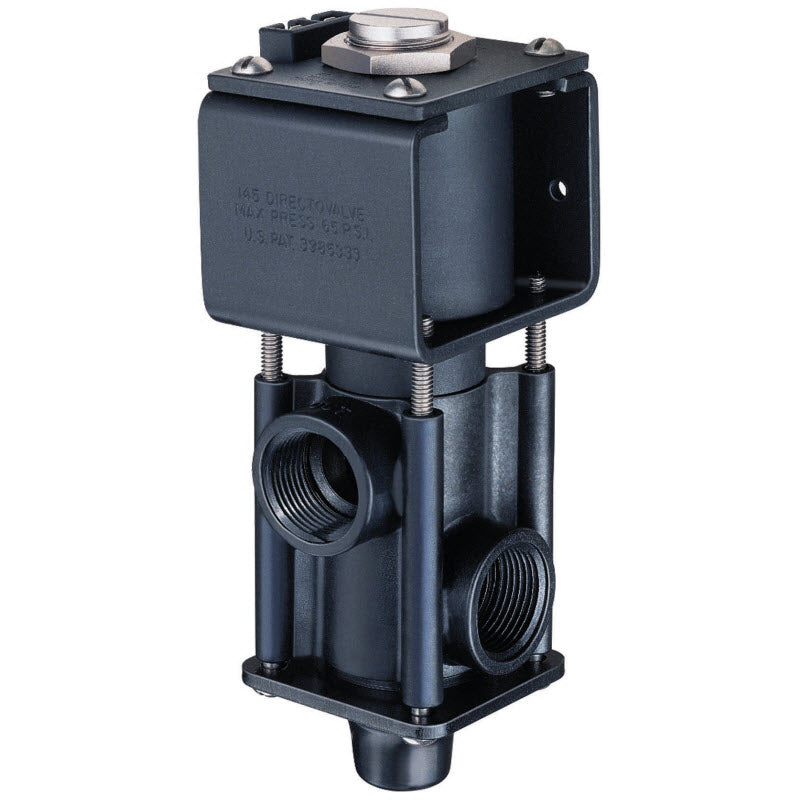

AA145H-1 Electric Solenoid Valve
AA145H-1 Electric Solenoid Valve
Brand:
TeeJet
Weight:
2.0 lb
Item #
AA145H1
AA145H-1 Electric Solenoid Valve
AA145H-1 Electric Solenoid Valve
Brand:
TeeJet
Weight:
2.0 lb
Item #
AA145H1
Regular price
$329.50
Sale price
$329.50
Regular price
List Price:
$549.16
Unit price
per
Free Shipping on Qualified Orders Over $100
In stock orders placed withinship out same day. Learn more
Couldn't load pickup availability

Earn 989 points with this purchase.

Collapsible content
Product Overview
AA145H-1 DirectoValve Electric Solenoid Valve
1" Inlet, 1" Outlet
Features:
-Flow Rate: 15 GPM at 5 PSI pressure drop, 21 GPM at 10 PSI pressure drop
-Can be ganged with other 145H DirectoValve control valves
-2.9 amp current draw
-Fiberglass reinforced Nylon body for chemical resistance
-Direct acting; large internal flow chamber without pilot hole reduces chance of clogging
-Stainless steel wetted parts provide additional corrosion resistance
-Operates on 12 VDC system
-Maximum pressure of 100 PSI
-Encapsulated solenoid coil can be changed without removing valve from system
-EPDM diaphragms and seat washers
-Continuous flow through bypass connection, with flow to spray line controlled by valve "on-off" action
1" Inlet, 1" Outlet
Features:
-Flow Rate: 15 GPM at 5 PSI pressure drop, 21 GPM at 10 PSI pressure drop
-Can be ganged with other 145H DirectoValve control valves
-2.9 amp current draw
-Fiberglass reinforced Nylon body for chemical resistance
-Direct acting; large internal flow chamber without pilot hole reduces chance of clogging
-Stainless steel wetted parts provide additional corrosion resistance
-Operates on 12 VDC system
-Maximum pressure of 100 PSI
-Encapsulated solenoid coil can be changed without removing valve from system
-EPDM diaphragms and seat washers
-Continuous flow through bypass connection, with flow to spray line controlled by valve "on-off" action
