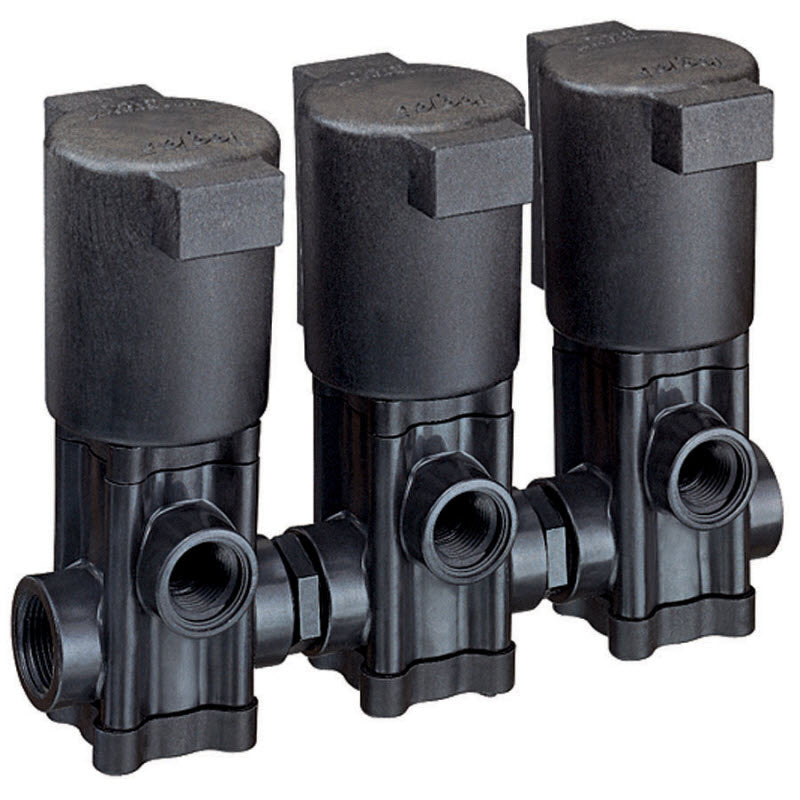

The AA144P-3 Electric Solenoid Valve has a polypropylene body for chemical resistance. However, you should review the manual before using a new chemical with this product. Like other solenoid valves, this product is controlled by an electric current. The electrical connections of the valve are protected with a cap to help reduce potential damage and corrosion. The mounting slot, which is integrated in the valve, can have a 6mm bolt or a 10 mm hex head.

The AA144P TeeJet DirectoValve provides reliable performance and service with increased corrosion resistance. No stroke adjustments are needed. It just works! Features:

• Direct acting; large internal flow chamber without pilot hole reduces chance of clogging
• Stainless steel wetted parts provide additional corrosion resistance
• Operates on 12 VDC system
• Maximum pressure of 100 psi
• Encapsulated solenoid coil can be changed without removing valve from system
• EPDM diaphragms and seat washers standard, Viton¨ optional
• Continuous flow through bypass connection, with flow to spray line controlled by valve on-off action

• 3 valves ganged together
• Max pressure: 100 psi
• Max flow: 14 gpm
• Inlet: 3/4" NPT
• Outlet to Boom: 1/2" NPT
• Continuous By-Pass: 3/4" NPT
• Distance Between Mounting Slots: 3Ó
• Height: 7.5Ó
• Width: 8.75Ó
• 2.5 amp current draw
• Weight: 10 lbs
