AA144P-1 Electric Solenoid Valve
AA144P-1 Electric Solenoid Valve
Brand:
TeeJet
Weight:
3.15 lb
Item #
AA144P1
AA144P-1 Electric Solenoid Valve
AA144P-1 Electric Solenoid Valve
Brand:
TeeJet
Weight:
3.15 lb
Item #
AA144P1
Regular price
$198.34
Sale price
$198.34
Regular price
List Price:
$330.57
Unit price
per
Free Shipping on Qualified Orders Over $100
In stock orders placed withinship out same day. Learn more
Earn 595 points with this purchase.
Collapsible content
Product Overview

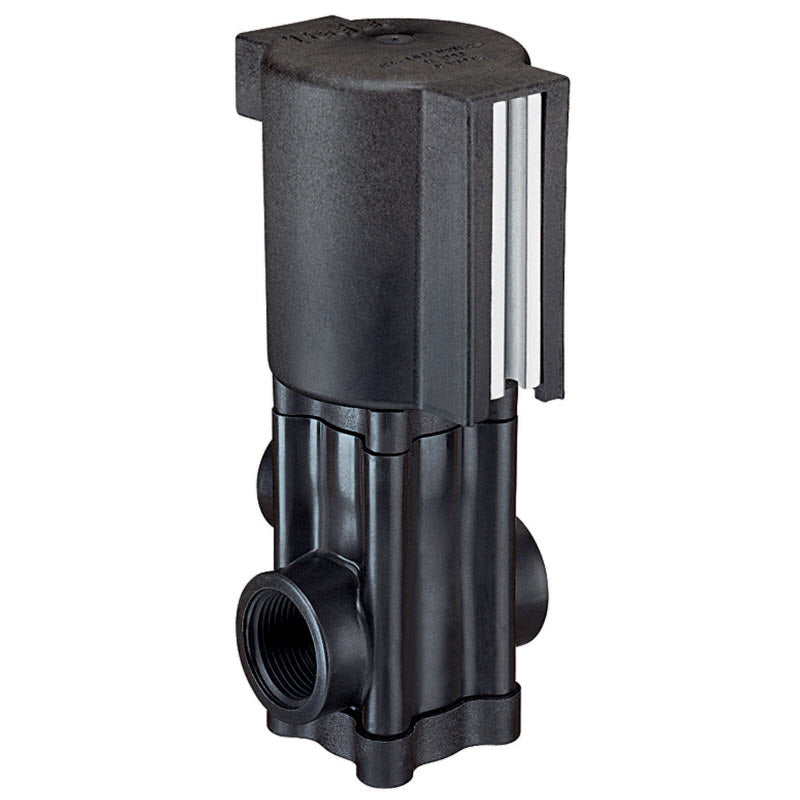

The AA144P-1 Electric Solenoid Valve works with your spraying and pumping equipment. It has a polypropylene body, which provides resistance from corrosive agricultural or industrial chemicals. The fabric reinforced Viton diaphragms give you more strength and durability so it will operate effectively for years to come. The electric solenoid valve features 3/4" inlet, 1/2" outlet and 2.5 amp current draw.
Manufacturer description
The AA144P TeeJet DirectoValve provides reliable performance and service with increased corrosion resistance. No stroke adjustments are needed. It just works!
Features:
-Polypropylene body for chemical resistance
-Fabric reinforced Viton diaphragms and seat washers
-No stroke adjustment required
-Corrosion resistant, 430SS solenoid grade armature and armature stop
-Direct acting; large internal flow chamber without pilot hole reduces chance of clogging
-Stainless steel wetted parts provide additional corrosion resistance
-Operates on 12 VDC system
-Maximum pressure of 100 PSI
-Encapsulated solenoid coil can be changed without removing valve from system
-Continuous flow through bypass connection, with flow to spray line controlled by valve "on-off" action
-Also available as 2- or 3-unit assembly
Features:
-Polypropylene body for chemical resistance
-Fabric reinforced Viton diaphragms and seat washers
-No stroke adjustment required
-Corrosion resistant, 430SS solenoid grade armature and armature stop
-Direct acting; large internal flow chamber without pilot hole reduces chance of clogging
-Stainless steel wetted parts provide additional corrosion resistance
-Operates on 12 VDC system
-Maximum pressure of 100 PSI
-Encapsulated solenoid coil can be changed without removing valve from system
-Continuous flow through bypass connection, with flow to spray line controlled by valve "on-off" action
-Also available as 2- or 3-unit assembly
Features
- Max pressure: 100 psi
- Max flow: 14 gpm
- Inlet: 3/4" NPT
- Outlet to Boom: 1/2" NPT
- Continuous By-Pass: 3/4" NPT
- Distance Between Mounting Slots: 3"
- Height: 7.5"
- Width: 8.75"
- 2.5 amp current draw
- Weight: 10 lbs
