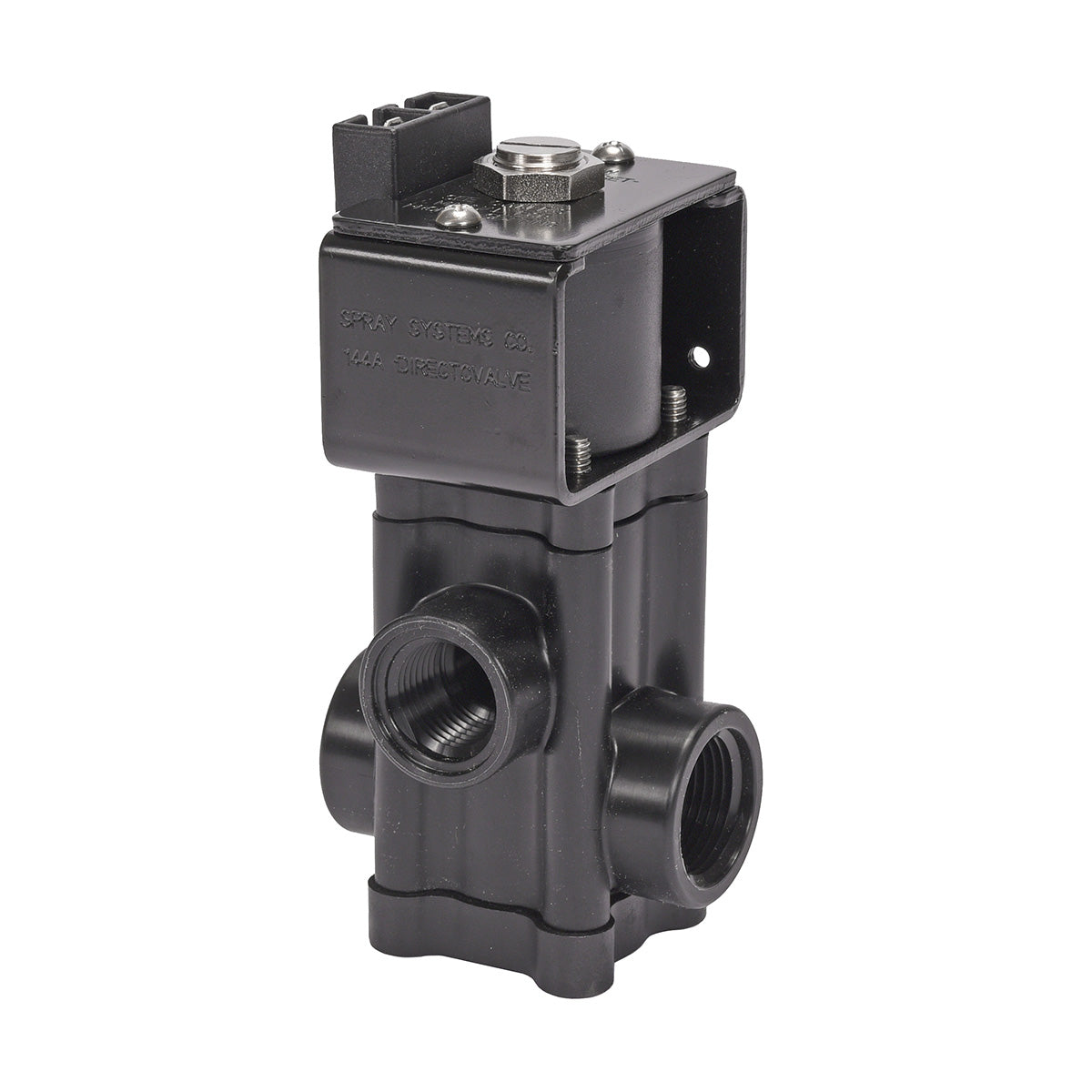

This polypropylene electric solenoid valve has a 3/4" inlet and 1/2" outlet. It has an encapsulated solenoid coil, which can be easily changed without the user having to remove the entire valve from the system. Superior corrosion resistance is offered by the stainless steel wetted parts. This valve is designed to operate on 12 VDC system with a maximum pressure of 100 PSI.

Direct acting; large internal flow chamber without pilot hole reduces chance of clogging. Manufactured with stainless steel wetted parts to provide additional corrosion resistance. Operates on 12 volts and up to 100 psi with Viton® diaphragms and seat washers.

• Max pressure: 100 psi
• Max flow rate: 14 gpm
• 12 VDC
• Inlet: 3/4" FNPT
• Outlet: 1/2" FNPT
• Max amp draw: 2.5
• Viton® diaphragm and seat washer
• Weight: 2 lbs
