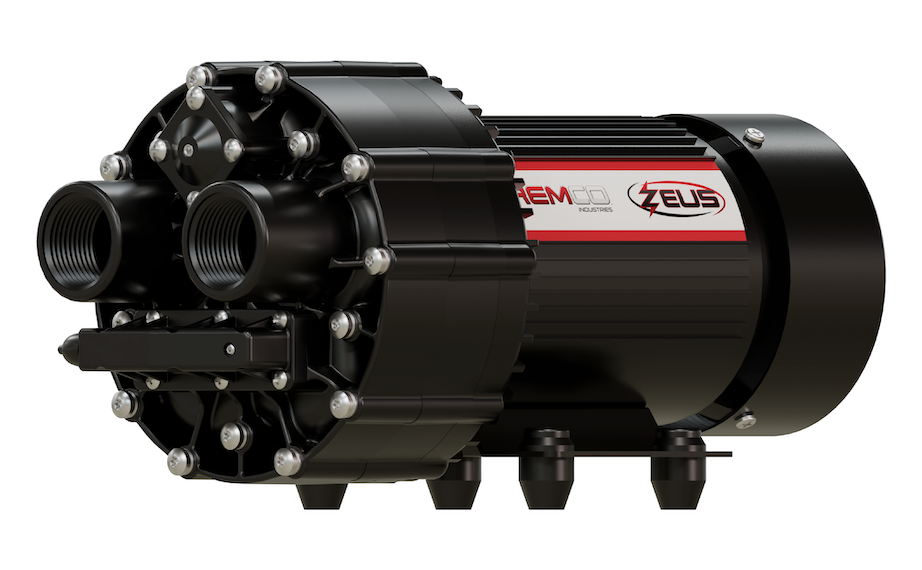

Remco 9559-9K5-971 Zeus Smoothflo Pump - 14GPM, 1"FNPT, Dual Control, 24 VDC, 150PSI, 12" 10AWG Leads, Heatsink and fan cooled

Optimal System Setup:

** Product warranty will be void if the optimal system setup guidelines are not followed**

• ¾" ID outlet hose recommended, minimum hose size ¾" ID
• Use size 50 spray tips and above
• 200ft maximum hose length
• Do not exceed 130 PSI operating pressure
• If rapid switch cycling occurs contact factory immediately
• Pressure gauge near pump to aid with system monitoring
• 50 AMP fuse recommended

Remco's Zeus SmoothFlo 14 GPM, 24 VDC, 150 PSI Softwash pump is the ultimate electric-driven diaphragm pump, taking performance to the next level. Its ultra-efficient electric motor delivers powerful and reliable performance for demanding applications. Combined with a state-of-the-art pump head design, Zeus is engineered to maximize efficiency and performance. The Zeus pump is built to handle even the most extreme applications with dependable operation. Remco has combined its Professional Grade durability, engineering, and expertise to develop the Zeus pump. Every component is designed with performance and long-lasting reliability in mind. The Zeus pump delivers the power, efficiency, and durability needed to take on the toughest pumping applications.

Download Product Manual

• Delivers an open flow rate of up to 14 GPM for faster chemical application and increased productivity
• Designed for softwashing, washdown, dust suppression, and agricultural/industrial chemical spray applications
• 24 VDC heavy-duty motor with integrated heatsink and fan cooling for reliable operation
• Vertical self-priming capability up to 14 feet
• Run-dry capable design helps protect the pump during temporary loss of liquid
• 100% factory tested performance to ensure consistent quality and reliability
• Supports liquid temperatures up to 140F (60C) with a maximum motor shell temperature of 180F (82C)
• 1-inch FNPT ports provide high-flow connections for demanding softwash systems
• Optimum set up is 3/4-inch ID outlet hose, maximum length of 200 feet, and size 50 tips or larger, smaller plumbing will result in a reduction of pump life
• 150 PSI pressure setting delivers consistent spray performance, not field adjustable
