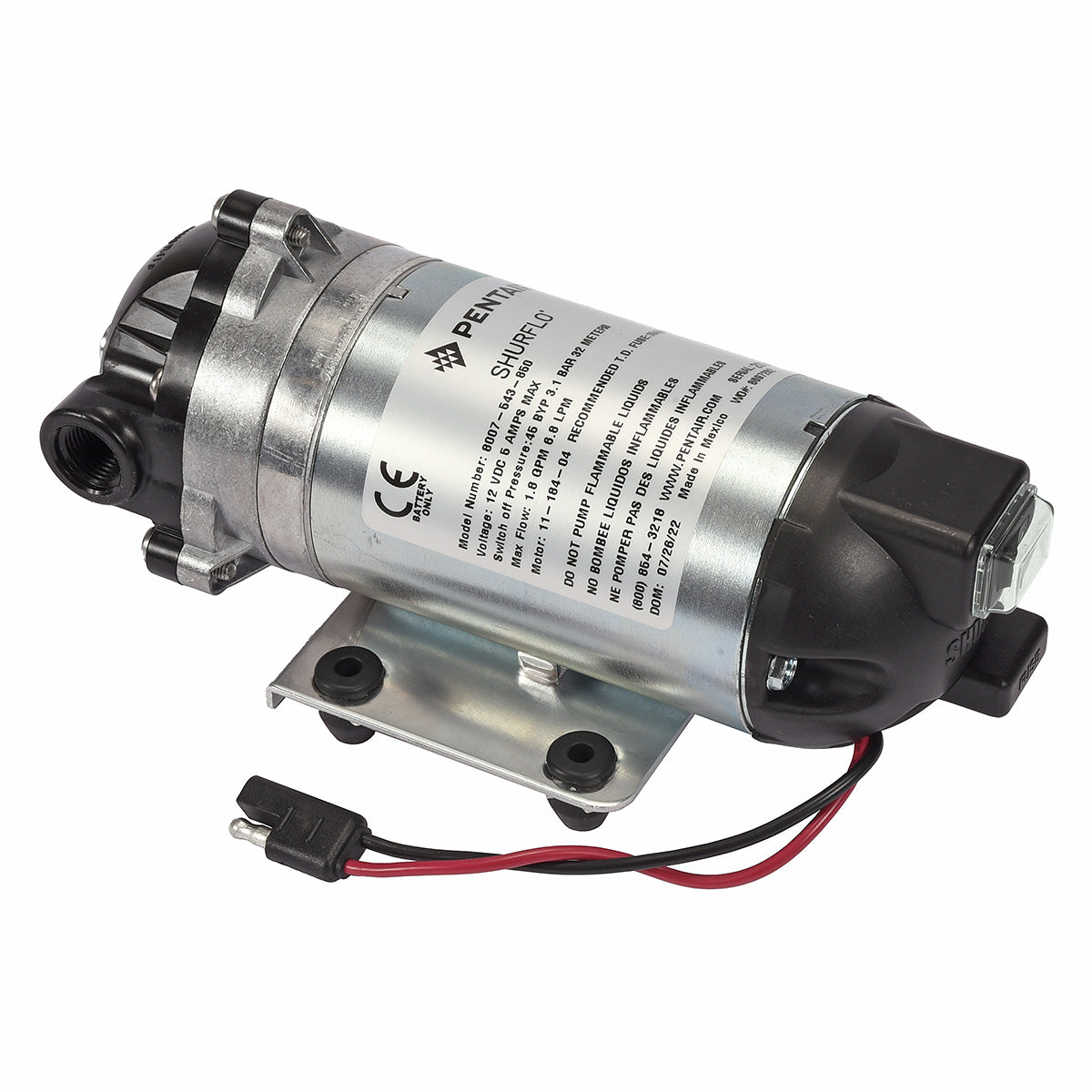

8007-543-850 Bypass 12V Pump w/ Electrical Package
8007-543-850 Bypass 12V Pump w/ Electrical Package
Brand:
SHURflo
Weight:
4.5 lb
Item #
8007543850
8007-543-850 Bypass 12V Pump w/ Electrical Package
8007-543-850 Bypass 12V Pump w/ Electrical Package
Brand:
SHURflo
Weight:
4.5 lb
Item #
8007543850
Regular price
$134.02
Sale price
$134.02
Regular price
List Price:
$223.37
Unit price
per
Earn 402 points with this purchase.
Collapsible content
Product Overview
This hardy Shurflo pump model features a molded assembly that serves to both keep things looking neat and protect wiring. A manual on/off switch is protected by a clear boot and is clearly marked. It includes an internal bypass option and is available with or without integral fuse. Built to last, this pump will not sustain any damage if it's run dry.
Manufacturer description
**The fittings for the pump inlet and outlet are sold separately. If you are unsure of what you need please contact a customer service representative for assistance.**
The 8007 Series diaphragm pump from SHURflo is widely used in agriculture and landscaping. Available in automatic demand or bypass versions, the 8007 Series pump is the pump of choice for sprayers used on the farm or around the yard. These 12 VDC pumps deliver up to 1.8 GPM (6.8 l/min) providing maximum performance in a wide range of applications. Electrical packaging includes built-in on/off rocker switch that is protected from the elements by a clear boot and a 2 pin connector on power leads.
The 8007 Series diaphragm pump from SHURflo is widely used in agriculture and landscaping. Available in automatic demand or bypass versions, the 8007 Series pump is the pump of choice for sprayers used on the farm or around the yard. These 12 VDC pumps deliver up to 1.8 GPM (6.8 l/min) providing maximum performance in a wide range of applications. Electrical packaging includes built-in on/off rocker switch that is protected from the elements by a clear boot and a 2 pin connector on power leads.
Resources
Features
- Bypass
- Manual on/off switch, 2 pin connector and fuse
- Self-priming up to 8 vertical feet
- Can run dry without damage
- Built-in check valve
- Max flow: 1.8 gpm
- Max pressure: 50 psi
- Voltage: 12 VDC
- Component material: Viton® valves, Santoprene® diaphragm
- Max Draw: 5.5
- Port size: 3/8" FNPT
- Weight: 6 lbs
