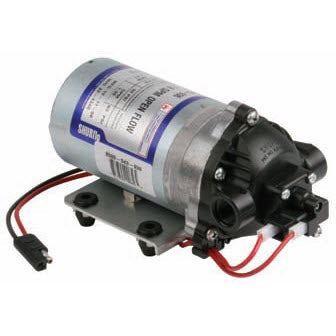

8000-543-936 12VDC w/ Wire Harness

8000-543-936 12VDC w/ Wire Harness

Item Code:
4.6 lb
Our price:
List price:

Shurflo continues to deliver on durability and reliability in sprayer system components with this diaphragm pump, model 8000-543-936 12VDC. This product comes with a wire harness and rates with a maximum pressure of 50 PSI and a flow rate of 1.8 GPM. Cone-shaped Viton® valves and an automatic demand switch make it an excellent selection for a wide range of farm and yard spraying jobs.

Manufacturer Description:

The 8000 Series diaphragm pump is SHURflo's most widely used agriculture pump. With its conical shaped Viton® valves and automatic demand switch, the 8000 Series pump is the pump of choice for sprayers used on the farm or around the yard. These 12 VDC pumps deliver up to 1.8 GPM (6.8 l/min) providing maximum performance in a wide range of applications. Automatic-Demand Diaphragm Pump 12 VDC. Viton valves, Santoprene diaphragm, 60 PSI demand switch. 1.8 gpm, 50 psi, 3/8 NPT (F) Ports, 6.4 Max Draw.


  • Wire harness and two wire molded connectors included
  • Automatic Demand
  • Self-priming up to 8 vertical feet
  • Can run dry without damage
  • Built-in check valve
  • Max flow: 1.8 gpm
  • Max pressure: 50 psi
  • Voltage: 12 VDC
  • Component material: Viton® valves, Santoprene® diaphragm
  • Max Draw: 6.4
  • Port size: 3/8" FNPT
  • Weight: 6 lbs

Parts breakdown
