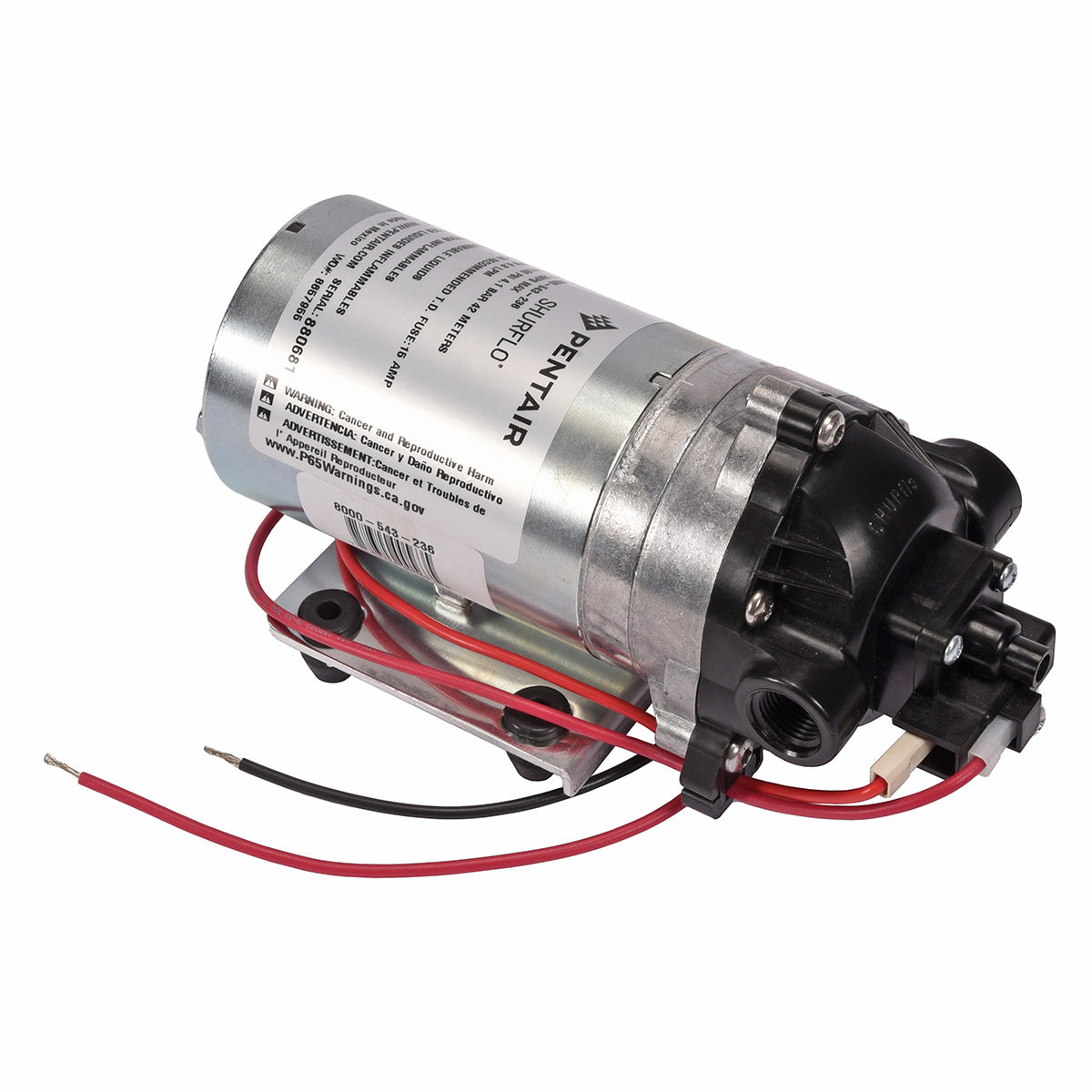

The 8000-543-236 12VDC Standard Pump is ideal for a range of fluid transfer and heavy-duty spraying applications. The unique design includes Viton conical valves that produce high flow rates. It also provides a balanced flow and maximum chemical resistance to ensure the unit can withstand harsh applications, making it useful for a broad range of agricultural, industrial, and horticultural applications.

**The fittings for the pump inlet and outlet are sold separately. If you are unsure of what you need please contact a customer service representative for assistance.**

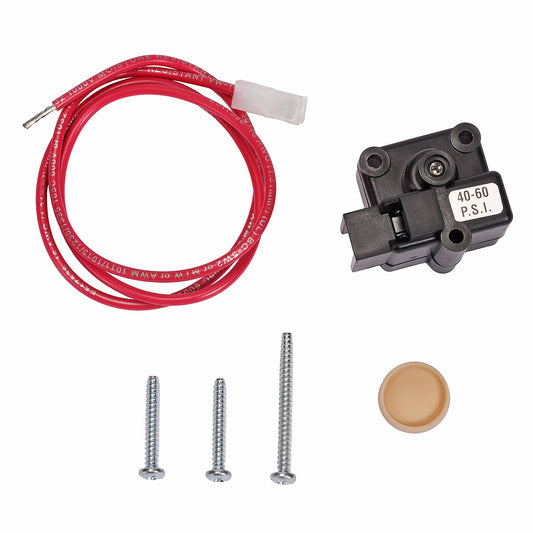

The 8000 Series diaphragm pump is SHURflo's most widely used agriculture pump. With its conical shaped Viton® valves and automatic demand switch, the 8000 Series pump is the pump of choice for sprayers used on the farm or around the yard. These 12 VDC pumps deliver up to 1.8 GPM (6.8 l/min) providing maximum performance in a wide range of applications. Automatic-Demand Diaphragm Pump 12 VDC. Viton valves, Santoprene diaphragm, 60 PSI demand switch. 1.8 gpm, 60 psi, 3/8 NPT (F) Ports, 6.4 Max Draw.

Download Product Manual

• Automatic Demand
• Self-priming up to 8 vertical feet
• Can run dry without damage
• Built-in check valve
• Max flow: 1.8 gpm
• Max pressure: 60 psi
• Voltage: 12 VDC
• Component material: Viton® valves, Santoprene® diaphragm
• Max Draw: 6.4
• Port size: 3/8" FNPT
• Weight: 6 lbs
