735 Gallon Free Standing Horizontal Leg Tank

735 Gallon Free Standing Horizontal Leg Tank

Item Code:
250.0 lb
Ace Roto-Mold
Our price:
List price:

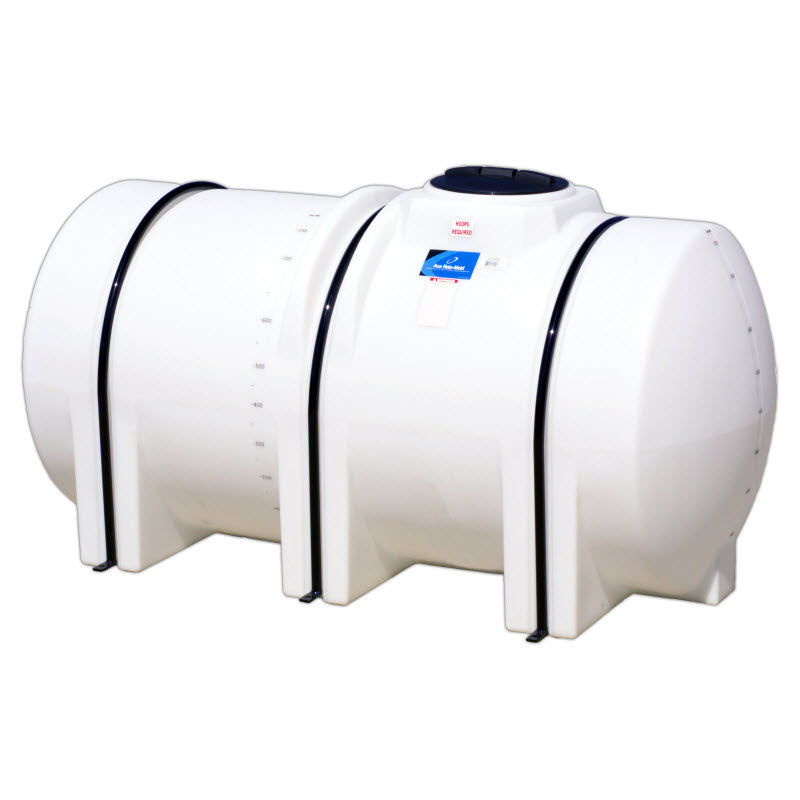

This freestanding tank by Ace Roto-Mold is made of durable polyethylene, lined with an FDA-approved resin and equipped with molded legs for stability. With integrated UV protection, it's suitable for indoor or outdoor use and works well for any application where transportable containment is required. The gallon indicators and translucent material make it easy to check liquid level. Fittings and required hoops are sold separately.

Manufacturer Description:

**Tank is sold without fittings installed but they can be added upon request. Installation is no charge - you only pay for the fittings. We require the tank diagram marked with the desired location and bulkhead size before installing fittings.**

Free Standing Horizontal Tanks are selected when transportable (non DOT regulated) containment is required for indoor or outdoor applications. Tanks are equipped with molded-in legs to support the tank and band locators for tie down. Tanks are manufactured from medium or high-density polyethylene with UV inhibitors and designed for containment of liquids of up to 1.7 specific gravity. Tank walls are translucent for level viewing and equipped with gallon indicators.


  • Dimensions: 99" L x 48" W x 48" H
  • Dry weight: 250 lbs
  • Lid: 16" male threaded
  • Tank material: Polyethylene
  • Specific gravity: 1.7
  • Tank comes without fittings installed. Fittings are available and can be installed with no extra charge.

Parts breakdown

 Parts breakdown parts
