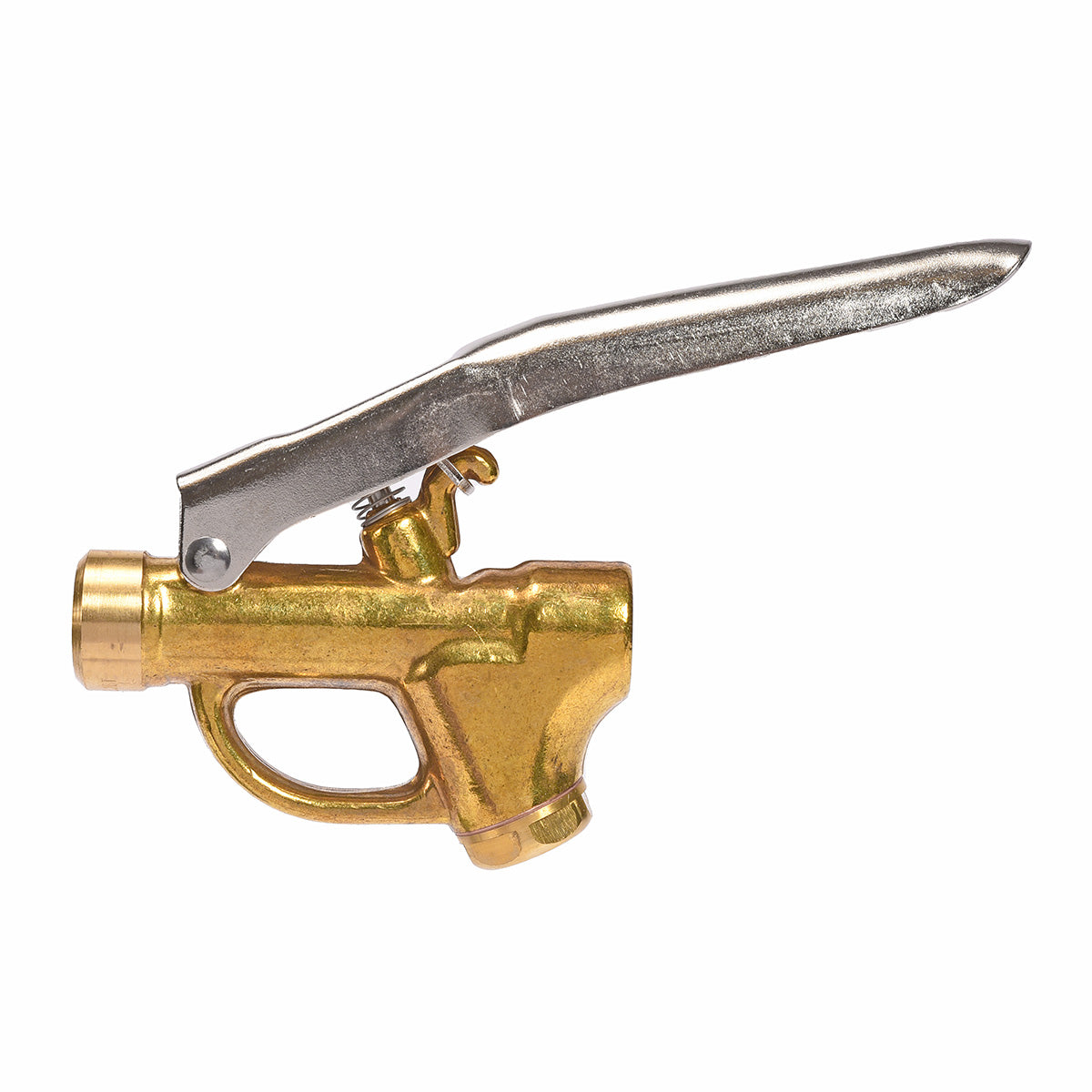

6590 Trigger Valve 1/4" FNPT Inlet/Outlet

6590 Trigger Valve 1/4" FNPT Inlet/Outlet

Brand:
TeeJet
Weight:
0.37 lb
Item #
6590
1 review
1 1

6590 Trigger Valve 1/4" FNPT Inlet/Outlet

6590 Trigger Valve 1/4" FNPT Inlet/Outlet

Brand:
TeeJet
Weight:
0.37 lb
Item #
6590
1 review

$46.35
$46.35 List Price: $77.24

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 139 points with this purchase.

See Details

View full details

Product Overview

6590 Spraying Systems/TeeJet Trigger Valve.

1/4" NPT (F) Inlet and Outlet connection.

Max flow rate 2 GPM, max. pressure of 250 PSI. Same as 6104 less trigger lock, with extra long trigger. Brass Material.

Parts breakdown

Diagram

Diagram parts

Parts list

  • Cap, Brass
    • Ref No: 1
    • Part No: CP4578
    • Qty Req: 1
    Our price: $5.35 List price: $8.92
  • Gasket, Copper
    • Ref No: 2
    • Part No: CP4143CU
    • Qty Req: 1
    Our price: $1.55 List price: $2.58
  • Valve Spring
    • Ref No: 3
    • Part No: CP4586SS
    • Qty Req: 1
    Our price: $2.24 List price: $3.73
  • Valve Stem Sub-Assembly (Standard)
    • Ref No: 4
    • Part No: 4817
    • Qty Req: 1
    Our price: $9.06 List price: $15.11
  • Valve Stem Sub-Assembly (Optional)
    • Ref No: 4
    • Part No: 48171
    • Qty Req: 1
    Our price: $13.44 List price: $22.41
  • Guide Sleeve
    • Ref No: 5
    • Part No: CP4932
    • Qty Req: 1
    Our price: $1.91 List price: $3.17
  • O-Ring, Buna-N (Standard)
    • Ref No: 6
    • Part No: CP77171BU
    • Qty Req: 1
    Our price: $3.24 List price: $5.39
  • O-Ring, Viton (Optional)
    • Ref No: 6
    • Part No: CP77171VI
    • Qty Req: 1
    Our price: $4.59 List price: $7.65
  • Body
    • Ref No: 7
    • Part No: CP46821
    • Qty Req: 1
    Our price: $36.82 List price: $61.36
  • Spring
    • Ref No: 8
    • Part No: CP4585302SS
    • Qty Req: 1
    Our price: $1.49 List price: $2.49
  • Trigger Sub-Assembly
    • Ref No: 9
    • Part No: 64671
    • Qty Req: 1
    Our price: $8.77 List price: $14.62
  • Rivet
    • Ref No: 10
    • Part No: CP7694430SS
    • Qty Req: 1
    Our price: $1.55 List price: $2.58
