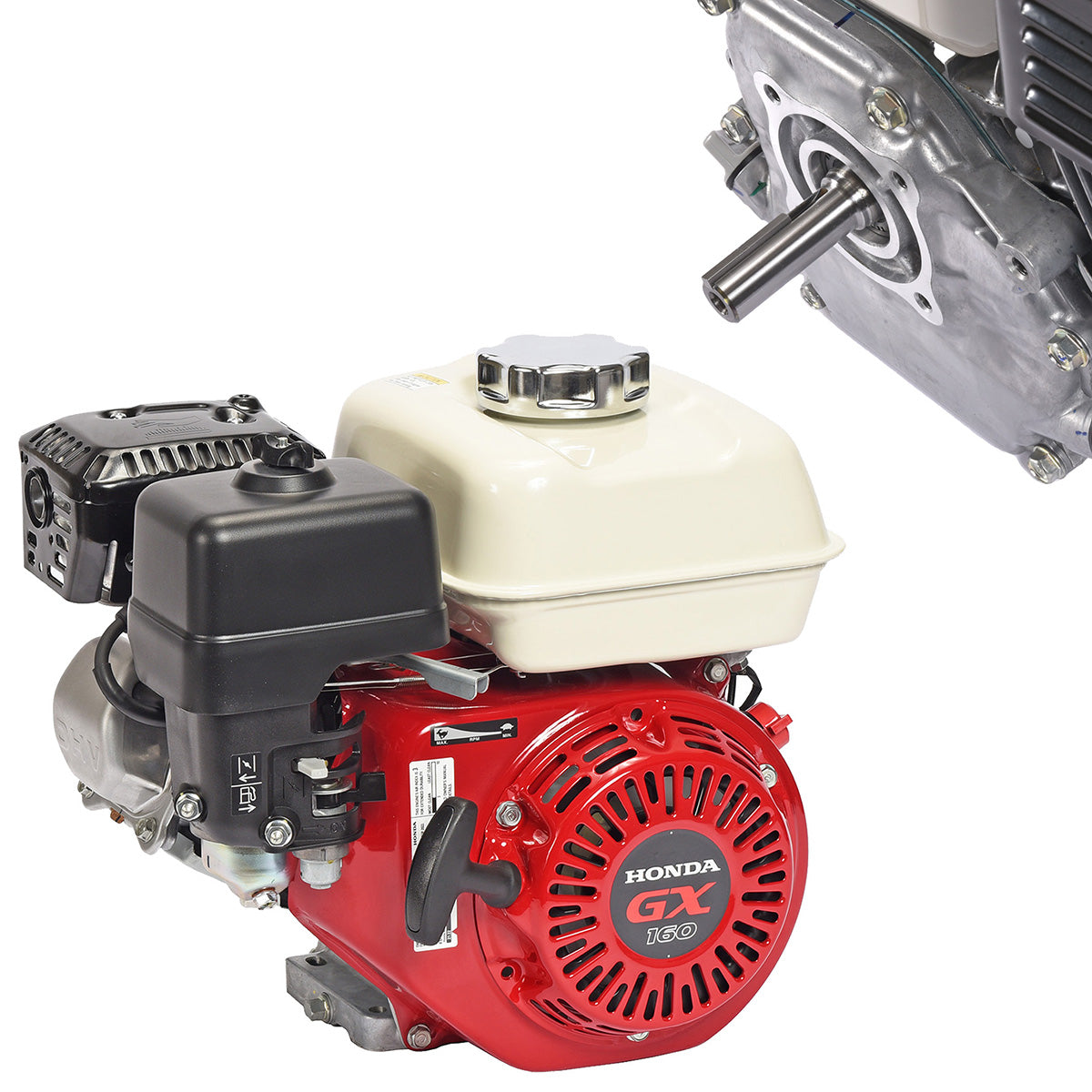

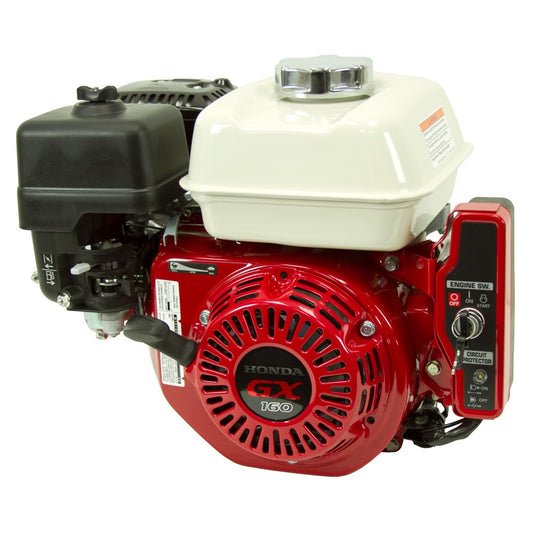

The 5.5 HP Honda Engine has a number of potential applications, such as pressure washers, cultivators, agricultural equipment, water pumps, commercial lawn and garden equipment, generators or industrial equipment. You may be able to get this particular engine with a recoil or electric starter. Honda engines are known for their reliability, and this product is no different.

Honda’s GX Series engines are renowned for exceptional reliability and performance, and the GX160 continues that legacy with lower noise, reduced vibration, and lower emissions while maintaining strong power output.

Fuel-efficient, high-output design features improved fuel economy, a precision camshaft for optimal valve timing, an OHV configuration for efficient power transfer, and a high compression ratio for enhanced performance and efficiency.

Smooth operation is achieved through precision-engineered components, including a lightweight piston, balanced crankshaft, and ball bearing-supported crankshaft that help minimize vibration.

Quiet performance is supported by aluminum push rods, an enhanced muffler, breather and case cover design, noise-reducing materials, helical-cut gears, and an advanced air intake system.

Proven reliability comes from Honda’s Oil Alert® system, a protected carburetor with filtration and anti-corrosion coating, a durable cast iron cylinder sleeve, a dual-element air cleaner, and a fuel valve.

Designed for convenience and easy maintenance, the GX160 features simple throttl(more...)

Download Product Manual

• Engine type: Air-cooled 4-stroke OHV
• Starting sytem: Recoil starter
• Shaft: 3/4" solid keyed
• Bore x stroke: 68 x 45 mm
• Displacement: 163 cm3
• Net power output: 4.8 HP (3.6 kW) @ 3600 rpm
• Net torque: 7.6 lb-ft (10.3 Nm) @ 2500 rpm
• PTO shaft rotation: Counterclockwise from PTO shaft side
• Compression ratio: 9.0 : 1
• Lamp/Charge coil options: 25W, 50W / 1A, 3A, 7A
• Carburetor: Butterfly
• Ignition system: Transistorized magneto
• Lubrication system: Splash
• Governor system: Centrifugal mechanical
• Air cleaner: Dual element
• Oil capacity: 0.61 US qt. (0.58 L)
• Fuel tank capacity: 3.3 US qts (3.1 liters)
• Fuel: Unleaded 86 octane or higher
• Dry weight: 33 lbs (15.1 kg)
• Dimensions: 12.2 in long x 14.3 in wide x 13.6 in high (312 x 362 x 346 mm)
• Warranty: 3 year commercial warranty (limited to manufacturer defects)
