4688 Trigger Valve 1/4" FNPT Inlet

4688 Trigger Valve 1/4" FNPT Inlet

Brand:
TeeJet
Weight:
1.0 lb
Item #
4688
  • 4688 Trigger Valve 1/4" FNPT Inlet
1 1

4688 Trigger Valve 1/4" FNPT Inlet

4688 Trigger Valve 1/4" FNPT Inlet

Brand:
TeeJet
Weight:
1.0 lb
Item #
4688

$47.46
$47.46 List Price: $79.08

Free Shipping on Qualified Orders Over $100

Orders of in-stock products placed within

ship out same day. Learn more

Earn 142 points with this purchase.

See Details

View full details

Product Overview

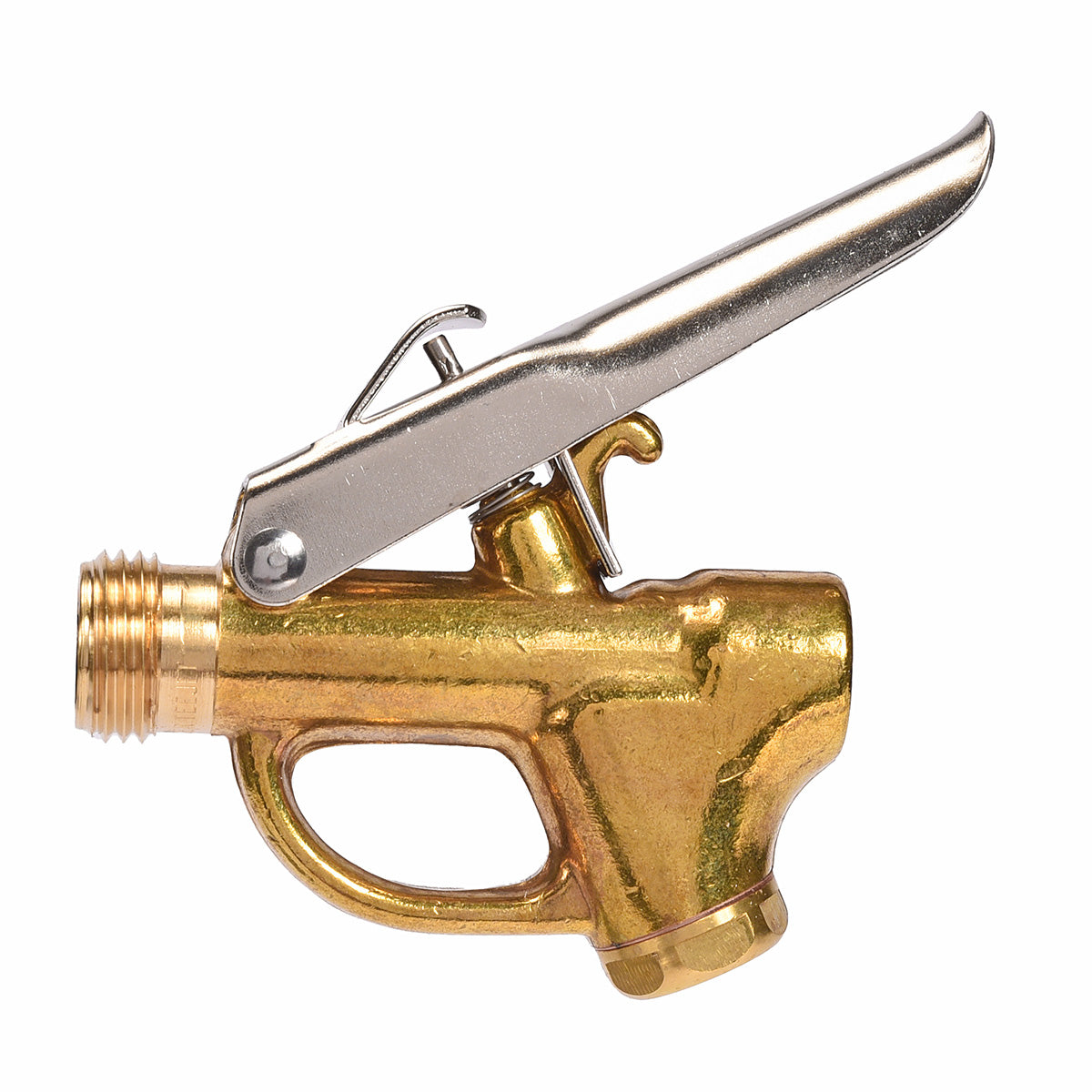

4688 Spraying Systems/Teejet Trigger Valve with Trigger Lock.

Equipped with Trigger Lock, 2 GPM, 250 PSI Max. 1/4" NPT (F) Inlet Connection, 11/16"-16 (M) outlet connection.

Max. flow rate 2 GPM (7.6 l/min), max. pressure of 250 PSI (17 bar). 1/4" NPT (F) inlet connection, 11/16"– 16 (M) outlet connection. Use with TeeJet and ConeJet® tips, adjustable ConeJet tips or MulteeJet® tips. Brass material.

Parts breakdown

Diagram

Diagram parts

Parts list

  • Cap, Brass
    • Ref No: 1
    • Part No: CP4578
    • Qty Req: 1
    Our price: $5.51 List price: $9.19
  • Gasket, Copper
    • Ref No: 2
    • Part No: CP4143CU
    • Qty Req: 1
    Our price: $1.60 List price: $2.66
  • Valve Spring
    • Ref No: 3
    • Part No: CP4586SS
    • Qty Req: 1
    Our price: $2.31 List price: $3.85
  • Valve Stem Sub-Assembly (Standard)
    • Ref No: 4
    • Part No: 4817
    • Qty Req: 1
    Our price: $9.34 List price: $15.57
  • Valve Stem Sub-Assembly (Optional)
    • Ref No: 4
    • Part No: 48171
    • Qty Req: 1
    Our price: $13.85 List price: $23.09
  • Guide Sleeve
    • Ref No: 5
    • Part No: CP4932
    • Qty Req: 1
    Our price: $1.97 List price: $3.27
  • O-Ring, Buna-N (Standard)
    • Ref No: 6
    • Part No: CP77171BU
    • Qty Req: 1
    Our price: $3.34 List price: $5.56
  • O-Ring, Viton (Optional)
    • Ref No: 6
    • Part No: CP77171VI
    • Qty Req: 1
    Our price: $4.73 List price: $7.88
  • Body
    • Ref No: 7
    • Part No: CP4682
    • Qty Req: 1
    Our price: $37.93 List price: $63.21
  • Spring
    • Ref No: 8
    • Part No: CP4585302SS
    • Qty Req: 1
    Our price: $1.54 List price: $2.57
  • Trigger Sub-Assembly
    • Ref No: 9
    • Part No: 45811
    • Qty Req: 1
    Our price: $17.58 List price: $19.53
  • Rivet
    • Ref No: 10
    • Part No: CP7694430SS
    • Qty Req: 1
    Our price: $1.60 List price: $2.66
