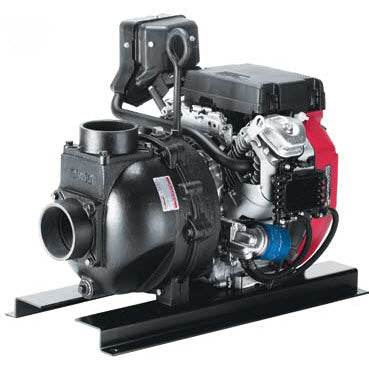

444PIH24 4" Self Priming Cast Iron w/ 24 HP Honda Engine

444PIH24 4" Self Priming Cast Iron w/ 24 HP Honda Engine

Brand:
Banjo
Weight:
150.0 lb
Item #
444PIH24
  • 444PIH24 4" Self Priming Cast Iron w/ 24 HP Honda Engine
1 1

444PIH24 4" Self Priming Cast Iron w/ 24 HP Honda Engine

444PIH24 4" Self Priming Cast Iron w/ 24 HP Honda Engine

Brand:
Banjo
Weight:
150.0 lb
Item #
444PIH24

$5,153.14
$5,153.14 List Price: $13,662.46

Earn 15,459 points with this purchase.

See Details

View full details

Product Overview

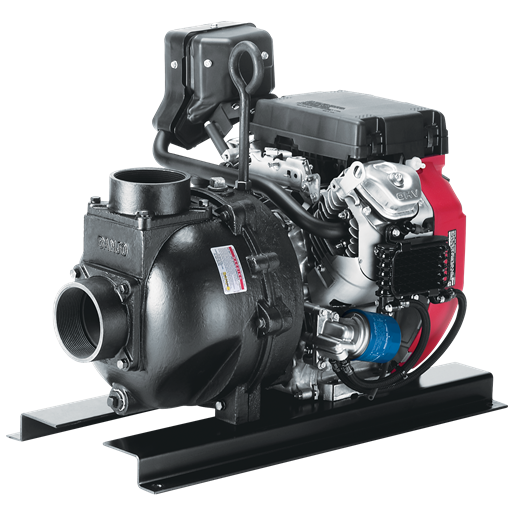

444PIH24 Banjo 444 Series 4" Cast Iron Self Priming Pump w/ 24 HP Honda Engine

650 gpm, 52 psi. 4" NPT Inlet/Outlet

Resources

Download Product Manual

Features

  • “V” Shaped for quicker priming
  • CAUTION-WARNING: Please do not run pump dry, restrict or reduce port sizes, or dead head pump. This could cause component failure to pump
  • DO NOT USE WITH FLAMMABLE LIQUIDS
  • Graphite loaded silicon carbide seal with stainless steel cup and spring with FKM rubber
  • Large weep holes between pump end and engine
  • Pump end separated from engine
  • Replaceable inlet and outlet flanges

Parts breakdown

Diagram

Diagram parts

Parts list

  • Rear Bracket
    • Ref No: 2
    • Part No: 16707
    • Qty Req: 1
    Our price: $559.85 List price: $1,119.68
  • Mechanical Seal
    • Ref No: 3
    • Part No: 18435
    • Qty Req: 1
    Our price: $504.15 List price: $1,008.29
  • O-Ring
    • Ref No: 4
    • Part No: 16710
    • Qty Req: 1
    Our price: $2.10 List price: $4.19
  • Bolt
    • Ref No: 5
    • Part No: 17704
    • Qty Req: 4
    Our price: $3.70 List price: $7.39
  • ⅜"Stainless Steel Lock Washer
    • Ref No: 6&
    • Part No: V20018
    • Qty Req: 13
    Our price: $1.02 List price: $1.95
  • 4" 24 HP Pump Impeller, 6 Vane
    • Ref No: 7
    • Part No: 16775
    • Qty Req: 1
    Our price: $100.87 List price: $201.73
  • Key
    • Ref No: 8
    • Part No: 16901
    • Qty Req: 1
    Our price: $3.70 List price: $7.39
  • Impeller Bolt
    • Ref No: 9
    • Part No: 16765
    • Qty Req: 1
    Our price: $21.57 List price: $43.14
  • Gasket
    • Ref No: 10
    • Part No: 16019
    • Qty Req: 1
    Our price: $14.24 List price: $28.46
  • Volute
    • Ref No: 11
    • Part No: 16702
    • Qty Req: 1
    Our price: $187.55 List price: $375.10
  • SS Bolt
    • Ref No: 12
    • Part No: V20011SS
    • Qty Req: 9
    Our price: $0.83 List price: $1.51
  • Body
    • Ref No: 13
    • Part No: 16712
    • Qty Req: 1
    Our price: $665.51 List price: $1,331.00
  • Outlet Flange
    • Ref No: 16
    • Part No: 16000
    • Qty Req: 1
    Our price: $59.79 List price: $119.57
  • Inlet Flange
    • Ref No: 17
    • Part No: 16002
    • Qty Req: 1
    Our price: $67.31 List price: $134.59
  • Outlet Gasket
    • Ref No: 18
    • Part No: 16706
    • Qty Req: 1
    Our price: $94.44 List price: $188.86
  • 4" Pump Outlet Gasket, FKM
    • Ref No: 19
    • Part No: 16011
    • Qty Req: 1
    Our price: $26.09 List price: $52.16
  • Prime/Drain Plug
    • Ref No: 20
    • Part No: 13777
    • Qty Req: 2
    Our price: $3.95 List price: $7.89
  • Cap Screw
    • Ref No: 21
    • Part No: 18027
    • Qty Req: 8
    Our price: $1.93 List price: $3.86
  • Prime/Drain Plug O-Ring
    • Ref No: 23
    • Part No: 13778
    • Qty Req: 2
    Our price: $1.80 List price: $3.59
