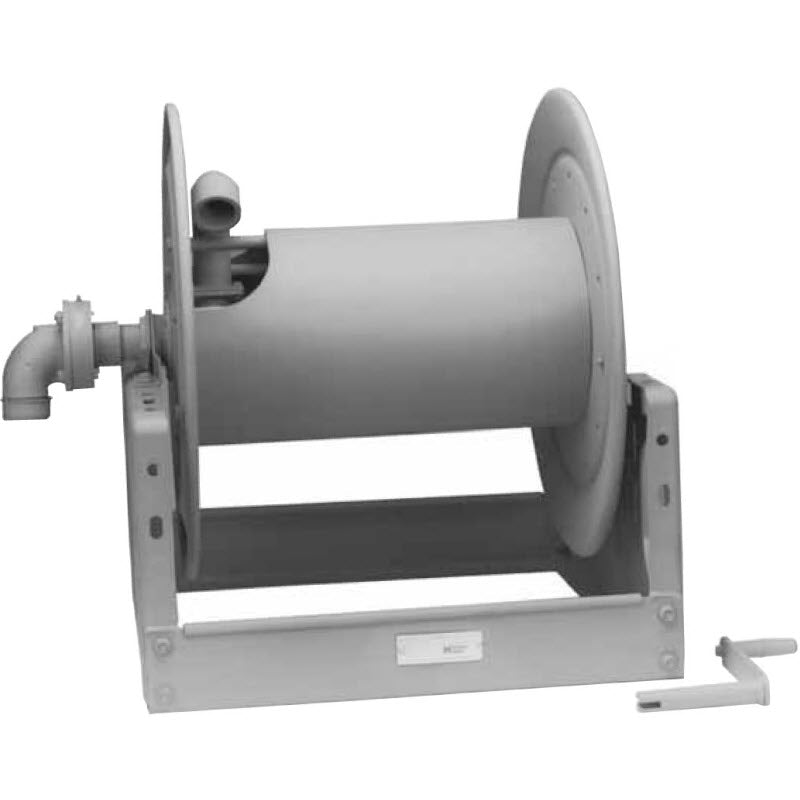

3528-30-31 Hannay Manual Hose Reel
Overview:
Hannay 3528-30-31 Manual Rewind Hose Reel
20" between the discs. Handles 1" to 1-3/4" ID hose
3528-30-31 can hold up to 250 of 1" ID round hose, 150' of 1-1/2" ID round hose, 300' of 1-1/2"" ID collapsible hose or 250' of 1-3/4" ID collapsible hose.
Features:
-Economical manual rewind reels for long lengths of hose
-Supplied with spring actuated pin lock
-Standard inlet is 90º swivel joint with 1-1/2" female NPT threads and 2" vitaulic groove
-Standard outlet is flanged riser with 1-1/2" female NPT threads
-Optional rollers may be purchased
-Operating pressure up to 600 psi
-Operating temperatures from -60° F to +175° F (-51° C to +79° C)
