3524-30-31 Hannay Manual Hose Reel

3524-30-31 Hannay Manual Hose Reel

Item Code:
35243031
Weight:
151.0 lb
Manufacturer:
Hannay
Our price:
$692.85
List price:
$770.00
Overview:

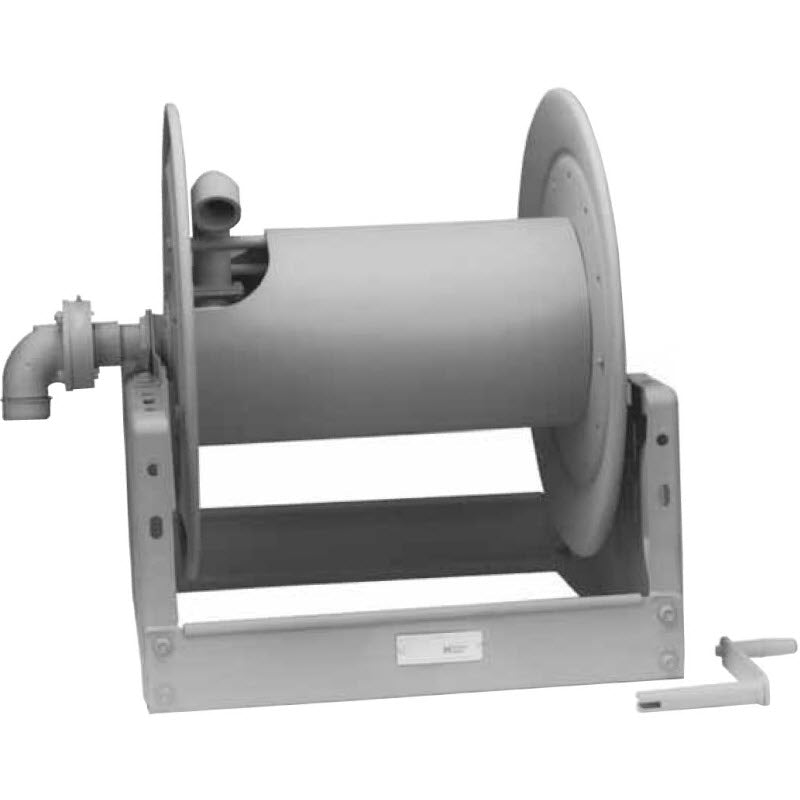

Hannay 3524-30-31 Manual Rewind Hose Reel

15.5" between the discs. Handles 1" to 1-3/4" ID hose

3524-30-31 can hold up to 200 of 1" ID round hose, 100' of 1-1/2" ID round hose, 250' of 1-1/2"" ID collapsible hose or 150' of 1-3/4" ID collapsible hose.

Features:

-Economical manual rewind reels for long lengths of hose

-Supplied with spring actuated pin lock

-Standard inlet is 90º swivel joint with 1-1/2" female NPT threads and 2" vitaulic groove

-Standard outlet is flanged riser with 1-1/2" female NPT threads

-Optional rollers may be purchased

-Operating pressure up to 600 psi

-Operating temperatures from -60° F to +175° F (-51° C to +79° C)
