3028-25-26 Hannay Manual Hose Reel
1
Overview:

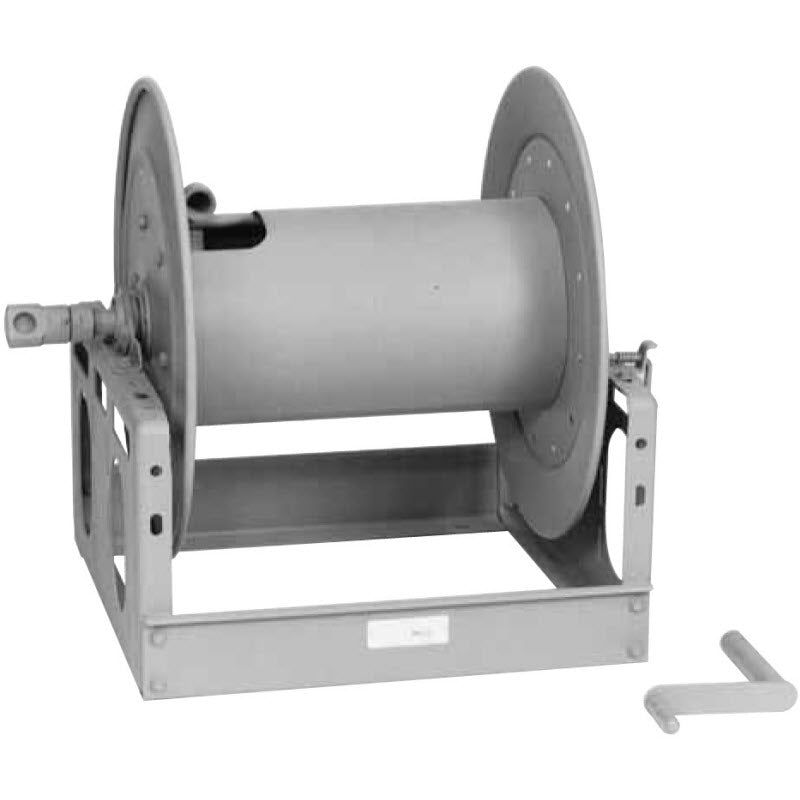

Hannay 3028-25-26 Manual Rewind Hose Reel
20" between the discs. Handles 3/4" to 1" ID hose
3024-25-26 can hold up to 300' of 3/4" ID round hose, 200 of 1" ID round hose or 550' of 1" ID collapsible hose.
Features:
-Economical manual rewind reels for long lengths of hose
-Supplied with spring-actuated pin lock
-Standard inlet is 90º ball bearing swivel joint with 1" FNPT threads
-Standard outlet is 1" FNPT thread
-Optional rollers may be purchased
-Operating pressure up to 2000 psi
-Operating temperatures from -60° F to +250° F (-51° C to +121° C)
