Name: 300PH13SS 3" Stainless Steel w/ 13 HP Electric Start Honda
Brand: Banjo
SKU: 300PH13SS
Price: 7342.61 USD
Availability: InStock

300PH13SS 3" Stainless Steel w/ 13 HP Electric Start Honda

Brand:

Banjo

Weight:

150.0 lb

Item #

300PH13SS

1 1

300PH13SS 3" Stainless Steel w/ 13 HP Electric Start Honda

Brand:

Banjo

Weight:

150.0 lb

Item #

300PH13SS

$7,342.61

$7,342.61 List Price: ~~$16,535.70~~

Product variants

Earn 22,028 points with this purchase.

See Details

View full details

Product Overview

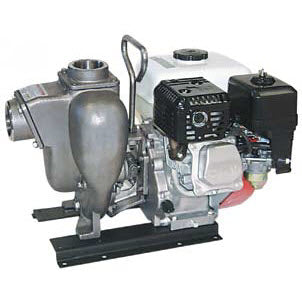

300PH13SS Banjo 3" Stainless Steel Centrifugal Pump w/ 13 HP Electric Start Honda Engine

330 gpm, 60 psi. 3" NPT Inlet/Outlet.

Features:

-Carbon ceramic seal consists of 316 stainless steel cup and spring with FKM (Viton) Elastomer

-All 316 stainless steel wettable internal components: Impeller - Sleeve - Wear Plate - Fasteners

-316 stainless steel housing

-Dynamically balanced impeller

**Truck Shipments Only**

Parts breakdown

Diagram

Parts list

NPT Outlet Flange
- Ref No: 1
- Part No: 18008SS
- Qty Req: 1
Our price: $183.14 List price: $366.26
NPT Inlet Flange
- Ref No: 2
- Part No: 18012SS
- Qty Req: 1
Our price: $238.72 List price: $477.42
Adapter for Gas Engine
- Ref No: 3
- Part No: 18026SS
- Qty Req: 1
Our price: $779.89 List price: $1,559.78
SS C-Flange Adapter
- Ref No: 3
- Part No: 18048SS
- Qty Req: 1
Our price: $783.40 List price: $1,843.29
Prime/Drain Plug
- Ref No: 4
- Part No: 13777
- Qty Req: 1
Our price: $3.89 List price: $7.77
1" SS Impeller & Drive Shaft for Gas Engine
- Ref No: 5
- Part No: 18023SS
- Qty Req: 1
Our price: $277.74 List price: $555.46
1-1/8" SS Impeller & Drive Shaft for Electric Motor
- Ref No: 5
- Part No: 180231125SS
- Qty Req: 1
Our price: $565.21 List price: $1,130.39
Prime/Drain Plug O-Ring
- Ref No: 6
- Part No: 13778
- Qty Req: 1
Our price: $1.77 List price: $3.54
5/8" SS Jam Nut
- Ref No: 7
- Part No: 18034
- Qty Req: 1
Our price: $3.68 List price: $7.34
SS Wear Plate
- Ref No: 8
- Part No: 18004SS
- Qty Req: 1
Our price: $217.72 List price: $435.43
FKM (Viton) Outlet Gasket
- Ref No: 9
- Part No: 18044
- Qty Req: 1
Our price: $20.09 List price: $40.17
FKM (Viton) Gasket Check Valve Assembly
- Ref No: 10
- Part No: 18042
- Qty Req: 1
Our price: $71.02 List price: $142.04
Adapter Gasket
- Ref No: 11
- Part No: 18021A
- Qty Req: 1
Our price: $6.83 List price: $13.66
3/8"-16 x 1.25" HHCS
- Ref No: 12
- Part No: 18010SS
- Qty Req: 8
Our price: $1.74 List price: $3.47
Handle
- Ref No: 13
- Part No: 18033
- Qty Req: 1
Our price: $22.90 List price: $45.78
Clamp Assembly (Old Style)
- Ref No: 14
- Part No: 18029
- Qty Req: 1
Our price: $50.91 List price: $101.81
3" Pump Keyed Clamp Assembly (new style)
- Ref No: 14
- Part No: 18129
- Qty Req: 1
Our price: $57.65 List price: $115.29
Stainless Steel Pump Housing
- Ref No: 15
- Part No: 18001SS
- Qty Req: 1
Our price: $1,368.77 List price: $3,220.65
3/8" - 24 x 2-1/4" Bolt
- Ref No: 16
- Part No: 18030
- Qty Req: 2
Our price: $3.91 List price: $7.81
Wear Plate Flat Head Screw
- Ref No: 17
- Part No: 18106SS
- Qty Req: 2
Our price: $15.11 List price: $30.20
⅜"Stainless Steel Lock Washer
- Ref No: 18
- Part No: V20018
- Qty Req: 8&6
Our price: $1.00 List price: $1.92
1" Shaft
- Ref No: 20
- Part No: 18504
- Qty Req: 1
Our price: $69.72 List price: $139.42
Bearing Pedestal
- Ref No: 21
- Part No: 18500
- Qty Req: 1
Our price: $407.03 List price: $814.03
Cap Screw
- Ref No: 22
- Part No: 18027
- Qty Req: 1
Our price: $1.90 List price: $3.80
FKM (Viton) Seal Assembly
- Ref No: 23
- Part No: 18025SS
- Qty Req: 1
Our price: $267.43 List price: $464.73
3/8" 16 SS Hex Nut
- Ref No: 24
- Part No: V20019
- Qty Req: 6
Our price: $1.09 List price: $2.09
3/8"-16 x 3/8"-24 x 1-1/2" SS Stud
- Ref No: 26
- Part No: 18218
- Qty Req: 6
Our price: $21.84 List price: $43.67
Banjo 1/2" Drain Plug (1"-1/4")
- Ref No: 27
- Part No: 12777
- Qty Req: 1
Our price: $2.45 List price: $4.89
Prime/Drain Plug O-Ring
- Ref No: 28
- Part No: UV15163
- Qty Req: 1
Our price: $0.89 List price: $1.77
