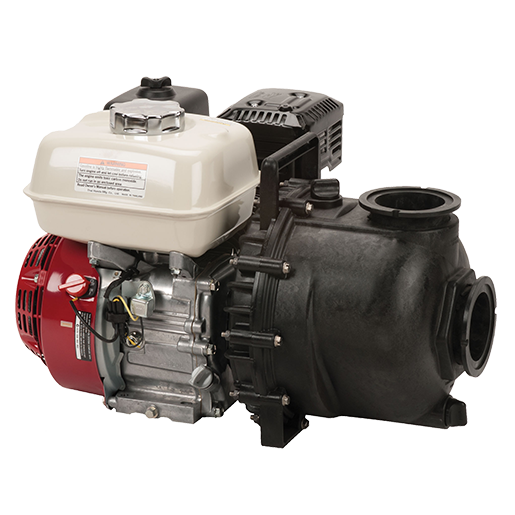

3" Poly Pump w/ 6.5 HP Honda Engine

3" Poly Pump w/ 6.5 HP Honda Engine

Brand:
Banjo
Weight:
100.0 lb
Item #
300PH6
1 1

3" Poly Pump w/ 6.5 HP Honda Engine

3" Poly Pump w/ 6.5 HP Honda Engine

Brand:
Banjo
Weight:
100.0 lb
Item #
300PH6

$1,235.12
$1,235.12 List Price: $2,906.16

We're here to help!

Let us know if you need assistance finding the right spray equipment

Earn 3,705 points with this purchase.

See Details

View full details

Product Overview

3" Poly Pump w/ 6.5 HP Honda Engine.

300 gpm, 30 psi. 3" NPT Inlet x 3" NPT Outlet.

Features:

-High strength polypropylene pump body.

-Corrosion resistant.

-Lightweight and portable.

-Constructed with high performance impellers for longer life.

Resources

Download Product Manual

Parts breakdown

Diagram

Diagram parts

Parts list

  • Seal Assembly
    • Ref No: 1
    • Part No: 12713
    • Qty Req: 1
    Our price: $37.43 List price: $74.85
  • FKM (Viton) Seal Assembly w/ 316SS Cup & Spring
    • Ref No: 1
    • Part No: 12713V
    • Qty Req: 1
    Our price: $62.26 List price: $124.50
  • SS Rear Bracket Washer
    • Ref No: 2
    • Part No: 12901
    • Qty Req: 4
    Our price: $0.88 List price: $1.76
  • O-Ring for Screw Head
    • Ref No: 3
    • Part No: 12717
    • Qty Req: 4
    Our price: $0.80 List price: $1.59
  • FKM (Viton) O-Ring for Screw Head
    • Ref No: 3
    • Part No: 12717V
    • Qty Req: 4
    Our price: $0.97 List price: $1.93
  • Body Assembly
    • Ref No: 4
    • Part No: 13712
    • Qty Req: 1
    Our price: $157.61 List price: $315.21
  • Poly Pump Volute
    • Ref No: 5
    • Part No: 13702
    • Qty Req: 1
    Our price: $62.26 List price: $124.50
  • 4 Vane Impeller
    • Ref No: 6
    • Part No: 13771
    • Qty Req: 1
    Our price: $50.45 List price: $100.89
  • Poly Pump Check Valve
    • Ref No: 7
    • Part No: 12705
    • Qty Req: 1
    Our price: $13.81 List price: $27.60
  • FKM (Viton) Poly Pump Check Valve
    • Ref No: 7
    • Part No: 12705V
    • Qty Req: 1
    Our price: $94.58 List price: $189.15
  • Impeller Bolt Gasket
    • Ref No: 8
    • Part No: 12774VA
    • Qty Req: 1
    Our price: $1.40 List price: $2.78
  • SS Upper Volute Screw
    • Ref No: 9
    • Part No: 12900
    • Qty Req: 4
    Our price: $1.35 List price: $2.69
  • SS Volute Screw
    • Ref No: 10
    • Part No: 12725
    • Qty Req: 2
    Our price: $3.23 List price: $6.46
  • Body O-Ring
    • Ref No: 11
    • Part No: 12719A
    • Qty Req: 1
    Our price: $12.51 List price: $25.02
  • FKM (Viton) Body O-Ring
    • Ref No: 11
    • Part No: 12719AV
    • Qty Req: 1
    Our price: $58.25 List price: $116.49
  • O-Ring Segment
    • Ref No: 12
    • Part No: 12754
    • Qty Req: 1
    Our price: $5.49 List price: $10.98
  • FKM (Viton) O-Ring Segment
    • Ref No: 12
    • Part No: 12754V
    • Qty Req: 1
    Our price: $8.86 List price: $17.71
  • SS Body Screw
    • Ref No: 13
    • Part No: 12720
    • Qty Req: 10
    Our price: $3.57 List price: $7.14
  • SS Lock Washer
    • Ref No: 14
    • Part No: V07018
    • Qty Req: 10
    Our price: $0.90 List price: $1.80
  • SS Body Nut
    • Ref No: 15
    • Part No: V07019
    • Qty Req: 10
    Our price: $0.95 List price: $1.90
  • Impeller Key
    • Ref No: 16
    • Part No: 12902A
    • Qty Req: 1
    Our price: $1.66 List price: $3.32
  • Prime/Drain Plug
    • Ref No: 17
    • Part No: 13777
    • Qty Req: 2
    Our price: $3.89 List price: $7.77
  • Prime/Drain Plug O-Ring
    • Ref No: 18
    • Part No: 13778
    • Qty Req: 2
    Our price: $1.77 List price: $3.54
  • FKM (Viton) Prime/Drain Plug O-Ring
    • Ref No: 18
    • Part No: 13778V
    • Qty Req: 2
    Our price: $2.85 List price: $5.69
  • Poly Pump Rear Bracket
    • Ref No: 19
    • Part No: 12703A
    • Qty Req: 1
    Our price: $76.46 List price: $152.91
  • O-Ring for Seal Assembly
    • Ref No: 20
    • Part No: 12710
    • Qty Req: 1
    Our price: $3.46 List price: $6.91
  • FKM (Viton) O-Ring for Seal Assembly
    • Ref No: 20
    • Part No: 12710V
    • Qty Req: 1
    Our price: $8.86 List price: $17.71
  • SS Impeller Bolt
    • Ref No: 21
    • Part No: 12765A
    • Qty Req: 1
    Our price: $17.02 List price: $34.01
  • SS Bracket Screw
    • Ref No: 22
    • Part No: 12715A
    • Qty Req: 4
    Our price: $3.42 List price: $6.84
  • Rear Bracket Shim
    • Ref No: 23
    • Part No: 15751
    • Qty Req: 1
    Our price: $3.29 List price: $6.58
  • Poly Pump Slinger
    • Ref No: 24
    • Part No: 12716
    • Qty Req: 1
    Our price: $5.14 List price: $10.26
  • Impeller Hex Nut
    • Ref No: 25
    • Part No: 12775A
    • Qty Req: 1
    Our price: $13.51 List price: $27.01
