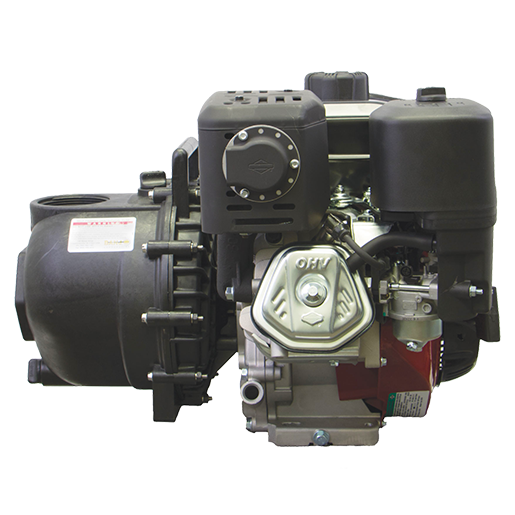

3" Poly Pump w/ 11 HP Briggs & Stratton Engine Pro Series

3" Poly Pump w/ 11 HP Briggs & Stratton Engine Pro Series

Brand:
Banjo
Weight:
100.0 lb
Item #
300P11PRO
Skip to product information
1 of 1

3" Poly Pump w/ 11 HP Briggs & Stratton Engine Pro Series

3" Poly Pump w/ 11 HP Briggs & Stratton Engine Pro Series

Brand:
Banjo
Weight:
100.0 lb
Item #
300P11PRO

Regular price $1,228.30
Sale price $1,228.30 Regular price List Price: $2,890.11

Earn 3,685 points with this purchase.

View full details

Collapsible content

Product Overview

3" Poly Pump w/ 11 HP Briggs & Stratton Engine Pro Series.

325 gpm, 35 psi. 3" NPT Inlet, 3" NPT Outlet.



Features:

-High strength polypropylene pump body.

-Corrosion resistant.

-Lightweight and portable.

-Constructed with high performance impellers for longer life.

Parts breakdown

Diagram

Diagram parts

Parts list

  • Seal Assembly
    • Ref No: 1
    • Part No: 12713
    • Qty Req: 1
    Our price: $34.34 List price: $68.68
  • FKM (Viton) Seal Assembly w/ 316SS Cup & Spring
    • Ref No: 1
    • Part No: 12713V
    • Qty Req: 1
    Our price: $57.12 List price: $114.24
  • SS Rear Bracket Washer
    • Ref No: 2
    • Part No: 12901
    • Qty Req: 4
    Our price: $0.73 List price: $1.46
  • O-Ring for Screw Head
    • Ref No: 3
    • Part No: 12717
    • Qty Req: 4
    Our price: $0.73 List price: $1.46
  • FKM (Viton) O-Ring for Screw Head
    • Ref No: 3
    • Part No: 12717V
    • Qty Req: 4
    Our price: $0.87 List price: $1.73
  • Body Assembly
    • Ref No: 4
    • Part No: 13712
    • Qty Req: 1
    Our price: $144.61 List price: $289.22
  • Poly Pump Volute
    • Ref No: 5
    • Part No: 13702
    • Qty Req: 1
    Our price: $57.12 List price: $114.24
  • 4 Vane Impeller
    • Ref No: 6
    • Part No: 13771
    • Qty Req: 1
    Our price: $46.29 List price: $92.57
  • Poly Pump Check Valve
    • Ref No: 7
    • Part No: 12705
    • Qty Req: 1
    Our price: $12.67 List price: $25.33
  • FKM (Viton) Poly Pump Check Valve
    • Ref No: 7
    • Part No: 12705V
    • Qty Req: 1
    Our price: $86.78 List price: $173.55
  • Impeller Bolt Gasket
    • Ref No: 8
    • Part No: 12774VA
    • Qty Req: 1
    Our price: $1.28 List price: $2.55
  • SS Upper Volute Screw
    • Ref No: 9
    • Part No: 12900
    • Qty Req: 4
    Our price: $1.24 List price: $2.47
  • SS Volute Screw
    • Ref No: 10
    • Part No: 12725
    • Qty Req: 2
    Our price: $2.97 List price: $5.93
  • Body O-Ring
    • Ref No: 11
    • Part No: 12719A
    • Qty Req: 1
    Our price: $11.21 List price: $22.41
  • FKM (Viton) Body O-Ring
    • Ref No: 11
    • Part No: 12719AV
    • Qty Req: 1
    Our price: $49.90 List price: $99.80
  • O-Ring Segment
    • Ref No: 12
    • Part No: 12754
    • Qty Req: 1
    Our price: $4.71 List price: $9.41
  • FKM (Viton) O-Ring Segment
    • Ref No: 12
    • Part No: 12754V
    • Qty Req: 1
    Our price: $7.59 List price: $15.18
  • SS Body Screw
    • Ref No: 13
    • Part No: 12720
    • Qty Req: 10
    Our price: $2.97 List price: $5.93
  • SS Lock Washer
    • Ref No: 14
    • Part No: V07018
    • Qty Req: 10
    Our price: $0.83 List price: $1.65
  • SS Body Nut
    • Ref No: 15
    • Part No: V07019
    • Qty Req: 10
    Our price: $0.83 List price: $1.65
  • Impeller Key
    • Ref No: 16
    • Part No: 12902A
    • Qty Req: 1
    Our price: $1.44 List price: $2.88
  • Prime/Drain Plug
    • Ref No: 17
    • Part No: 13777
    • Qty Req: 2
    Our price: $3.57 List price: $7.13
  • Prime/Drain Plug O-Ring
    • Ref No: 18
    • Part No: 13778
    • Qty Req: 2
    Our price: $1.52 List price: $3.03
  • FKM (Viton) Prime/Drain Plug O-Ring
    • Ref No: 18
    • Part No: 13778V
    • Qty Req: 2
    Our price: $2.44 List price: $4.88
  • Poly Pump Rear Bracket
    • Ref No: 19
    • Part No: 12703A
    • Qty Req: 1
    Our price: $70.15 List price: $140.30
  • O-Ring for Seal Assembly
    • Ref No: 20
    • Part No: 12710
    • Qty Req: 1
    Our price: $2.97 List price: $5.93
  • FKM (Viton) O-Ring for Seal Assembly
    • Ref No: 20
    • Part No: 12710V
    • Qty Req: 1
    Our price: $7.59 List price: $15.18
  • SS Impeller Bolt 3/8 x 24 x 1.75
    • Ref No: 21
    • Part No: 13765
    • Qty Req: 1
    Our price: $14.11 List price: $28.21
  • SS Bracket Screw
    • Ref No: 22
    • Part No: 12715A
    • Qty Req: 4
    Our price: $2.97 List price: $5.93
  • Rear Bracket Shim
    • Ref No: 23
    • Part No: 15751
    • Qty Req: 1
    Our price: $3.14 List price: $6.28
  • Poly Pump Slinger
    • Ref No: 24
    • Part No: 12716
    • Qty Req: 1
    Our price: $4.71 List price: $9.41
  • Impeller Hex Nut
    • Ref No: 25
    • Part No: 12775A
    • Qty Req: 1
    Our price: $11.21 List price: $22.41
