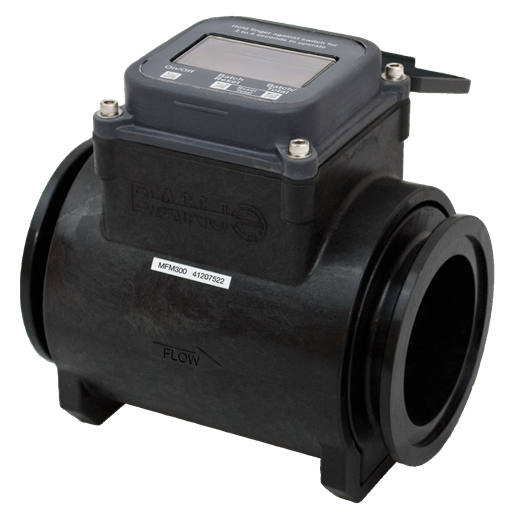

3" Full Port Flow Meter

3" Full Port Flow Meter

Brand:
Banjo
Weight:
5.4 lb
Item #
MFM300
Skip to product information
1 of 1

3" Full Port Flow Meter

3" Full Port Flow Meter

Brand:
Banjo
Weight:
5.4 lb
Item #
MFM300

Regular price $1,131.30
Sale price $1,131.30 Regular price List Price: $2,356.88

Earn 3,394 points with this purchase.

View full details

Collapsible content

Product Overview

3" full port manifold flow meter.

Manufacturer description

High quality flow meter from Banjo- 3" full port manifold flow meter

Features

  • ±:1% of reading (between 10% and 100% of maximum flow)
  • ±:3% of reading (between cutoff and 10% of maximum flow)
  • Displays overall total volume & batch total volume!
  • Easy to change six (6) AA batteries
  • Flow rate allows for Gallons or Liters Per Minute.
  • Glass-reinforced polypropylene
  • Measures water and most conductive liquids
  • No moving parts to fail during use
  • Self calibrating meter
  • Temperature range from 0º to 150º F
  • Maximum operating pressure 200 PSI
  • The display reads 6 digits for rate, 8 digits for total and 1 decimal place reading in tenths
  • There are 3 photoeyes located on the face of the flowmeter. Note: These are not push buttons, to activate you must hold your finger over the photoeye for 2-4 seconds
  • It is recommended to have at least 10x the diameter of straight pipe before and after the flow meter

Parts breakdown

Diagram

Diagram parts
