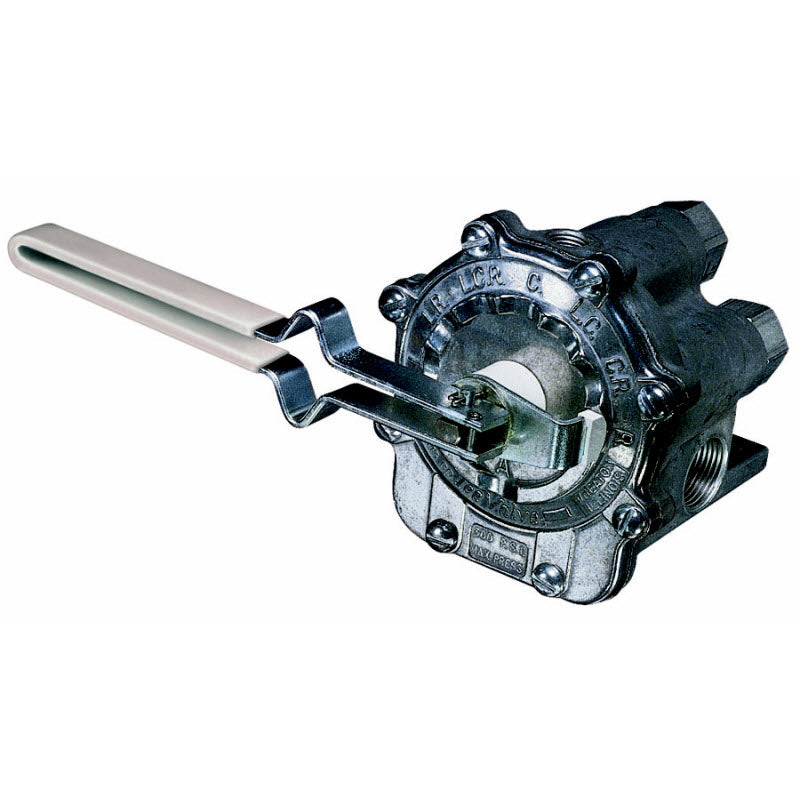

3/4" Boom Selector Valve

3/4" Boom Selector Valve

Brand:
TeeJet
Weight:
3.0 lb
Item #
AA17L
2 reviews
1 1

3/4" Boom Selector Valve

3/4" Boom Selector Valve

Brand:
TeeJet
Weight:
3.0 lb
Item #
AA17L
2 reviews

$120.22
$120.22 List Price: $200.37

Earn 361 points with this purchase.

See Details

View full details

Product Overview

AA17L 3/4" NPT Inlet Boom Selector Valve

3/4" Inlet, Acessory Outlet and Boom Outlets.

For selective control of three-section boom sprayers at pressures up to 300 PSI.

Features:

-Use to open any of three boom section lines in any desired combination

-Raise lever to open, lower level to close the valve without changing the indexed position

-Aluminum construction with stainless steel and plastic internal parts for maximum corrosion resistance

-1/4" NPT Pressure gauge port

Download Product Manual

Diagram

Diagram parts

Parts list

  • Cotter Pin, Stainless Steel
    • Ref No: 1
    • Part No: CP801212SS
    • Qty Req: 1
    Our price: $1.47 List price: $2.45
  • Handle & Rivet
    • Ref No: 2
    • Part No: CP68491IZP
    • Qty Req: 1
    Our price: $8.54 List price: $14.23
  • Rivet
    • Ref No: 3
    • Part No: CP7206IZP
    • Qty Req: 1
    Our price: $5.09 List price: $8.48
  • Handle Washer
    • Ref No: 4
    • Part No: CP6976IZP
    • Qty Req: 1
    Our price: $3.65 List price: $6.08
  • Selector Shield
    • Ref No: 5
    • Part No: CP12128IZP
    • Qty Req: 1
    Our price: $5.65 List price: $9.41
  • Selector Shield Tip
    • Ref No: 6
    • Part No: CP12127CE
    • Qty Req: 1
    Our price: $3.76 List price: $6.26
  • Spacer
    • Ref No: 7
    • Part No: CP12129CE
    • Qty Req: 1
    Our price: $5.04 List price: $8.40
  • Main Stem, Stainless Steel
    • Ref No: 8
    • Part No: CP6972SS
    • Qty Req: 1
    Our price: $10.05 List price: $16.75
  • Hex Head Screw
    • Ref No: 9
    • Part No: CP20607IZP
    • Qty Req: 8
    Our price: $2.11 List price: $3.51
  • Aluminum Cover Plate
    • Ref No: 10
    • Part No: CP12126AL
    • Qty Req: 1
    Our price: $46.94 List price: $78.24
  • Gasket, Buna-N
    • Ref No: 11
    • Part No: CP6975BU
    • Qty Req: 1
    Our price: $8.12 List price: $13.54
  • Packing
    • Ref No: 12
    • Part No: CP5809LEA
    • Qty Req: 5
    Our price: $1.47 List price: $2.45
  • Packing Gland, Stainless Steel
    • Ref No: 13
    • Part No: CP12130SS
    • Qty Req: 1
    Our price: $7.20 List price: $12.00
  • Washer, Stainless Steel
    • Ref No: 15
    • Part No: CP7987SS
    • Qty Req: 1
    Our price: $1.56 List price: $1.83
  • Selector Cam, Aluminum
    • Ref No: 16
    • Part No: CP6971AL
    • Qty Req: 1
    Our price: $4.08 List price: $6.80
  • Guide Nut, Stainless Steel
    • Ref No: 17
    • Part No: CP6973SS
    • Qty Req: 1
    Our price: $5.47 List price: $6.43
  • Valve Spring, Stainless Steel
    • Ref No: 18
    • Part No: CP6959SS
    • Qty Req: 3
    Our price: $3.05 List price: $5.09
  • Valve Stem
    • Ref No: 19
    • Part No: CP6956CE
    • Qty Req: 3
    Our price: $3.77 List price: $6.28
  • Body, Aluminum (AA17L)
    • Ref No: 20
    • Part No: CP693434AL
    • Qty Req: 1
    Our price: $54.68 List price: $91.13
  • Seat Plate
    • Ref No: 21
    • Part No: CP6958POL
    • Qty Req: 3
    Our price: $6.23 List price: $10.39
  • Outlet Adapter, Aluminum
    • Ref No: 22
    • Part No: CP7902AL
    • Qty Req: 3
    Our price: $9.14 List price: $15.23
