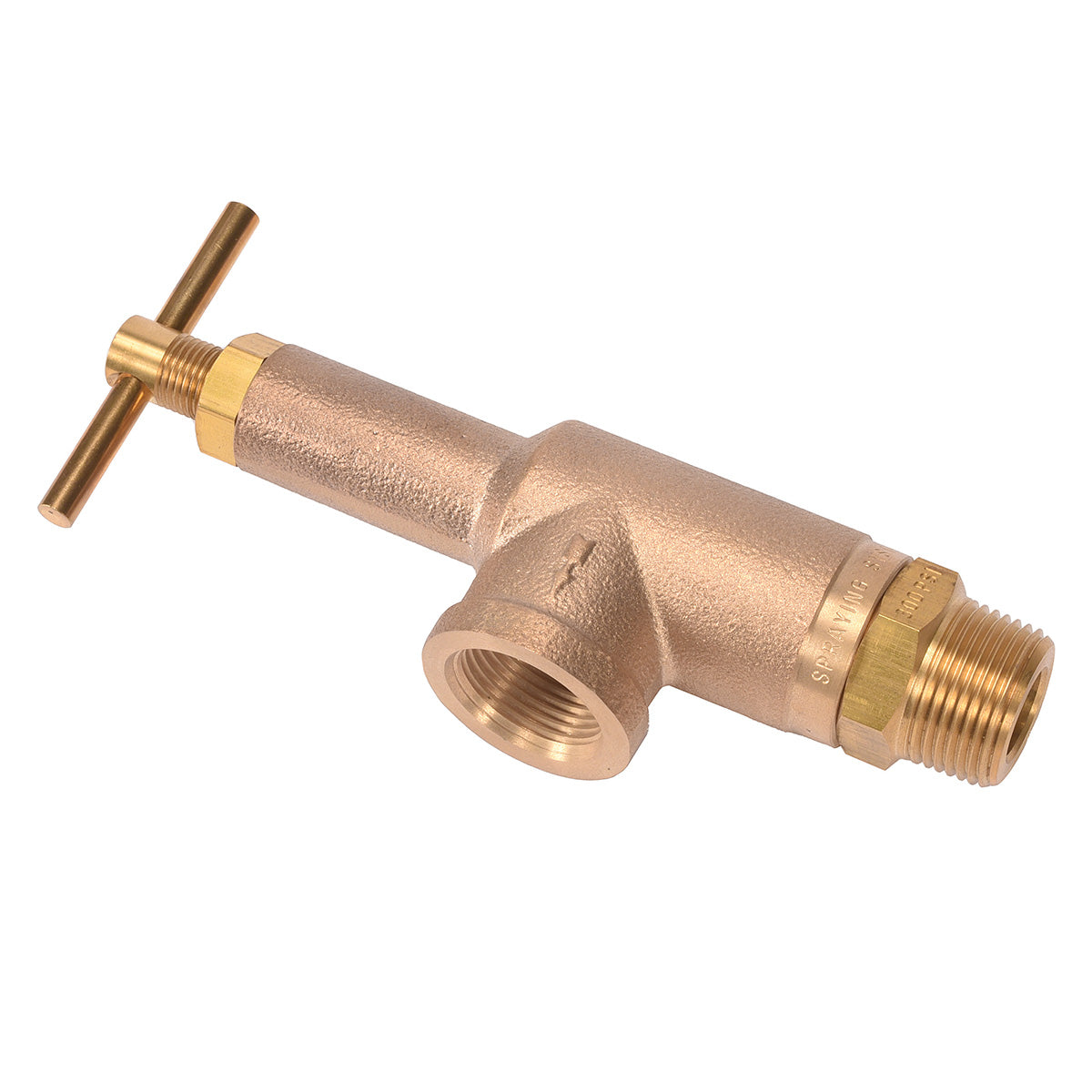

3/4" 700 PSI Brass Relief Valve

Item Code:
681534700
Weight:
1.28 lb
Manufacturer:
TeeJet
Our price:
$63.76
List price:
$106.27
Overview:

The 3/4" 700 PSI Brass Relief Valve is useful for various types of landscaping and agricultural spraying equipment. Also, it is highly reliable, extremely durable, and simple to rebuild. The design of the regulator includes a brass seat for more accurate pressure control and a longer life, and the side port functions as the return port that leads back to the tank.

Download Product Manual

Manufacturer Description:

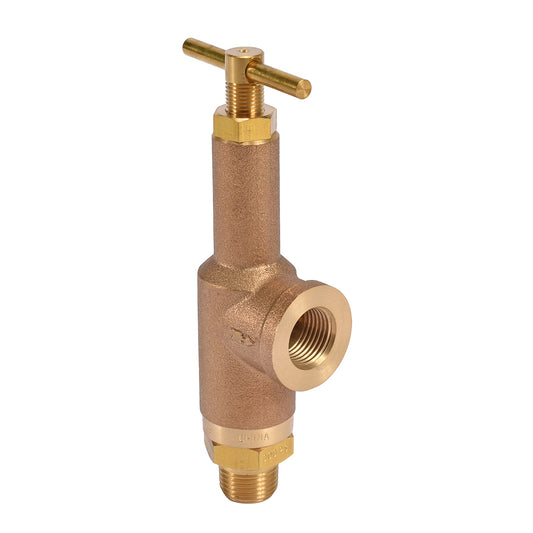

Bypasses excess liquid. Adjustable to maintain control of line pressure at any pressure within the valve's operating range. Selected pressure setting firmly held in place by locknut. Extra-large valve passages to handle large flows. Also available in 1/2" and 300 or 1200 psi.

Features:

  • Construction: Brass
  • Seat material: Brass
  • Max pressure rating: 700 psi
  • Port sizes: 3/4" MNPT inlet, 3/4" FNPT outlet
  • Weight: 1.5 lbs

Parts breakdown

Parts breakdown parts

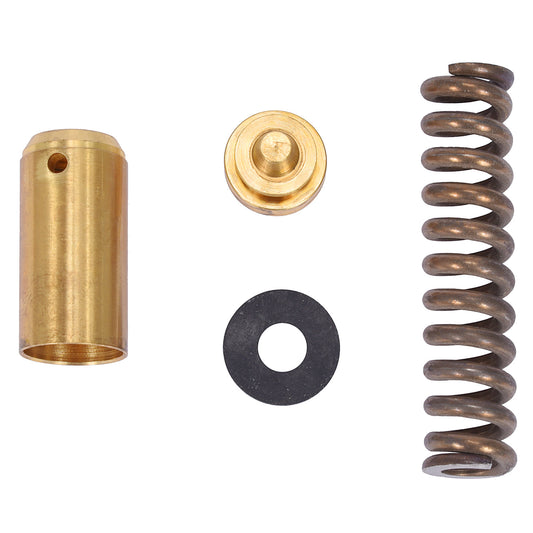

Parts list

Locknut

  • Ref No: 2
  • Part No: CP5898
  • Qty Req: 1
Our price: $1.60 List price: $2.67

Body

  • Ref No: 3
  • Part No: CP681834
  • Qty Req: 1
Our price: $43.72 List price: $72.87

Gasket, Buna-N

  • Ref No: 5
  • Part No: CP5899BU
  • Qty Req: 1
Our price: $1.33 List price: $2.21

Guide Seat

  • Ref No: 8
  • Part No: CP6544
  • Qty Req: 1
Our price: $6.58 List price: $10.96

3/4" Inlet Adapter

  • Ref No: 9
  • Part No: CP7059
  • Qty Req: 1
Our price: $8.71 List price: $14.51
