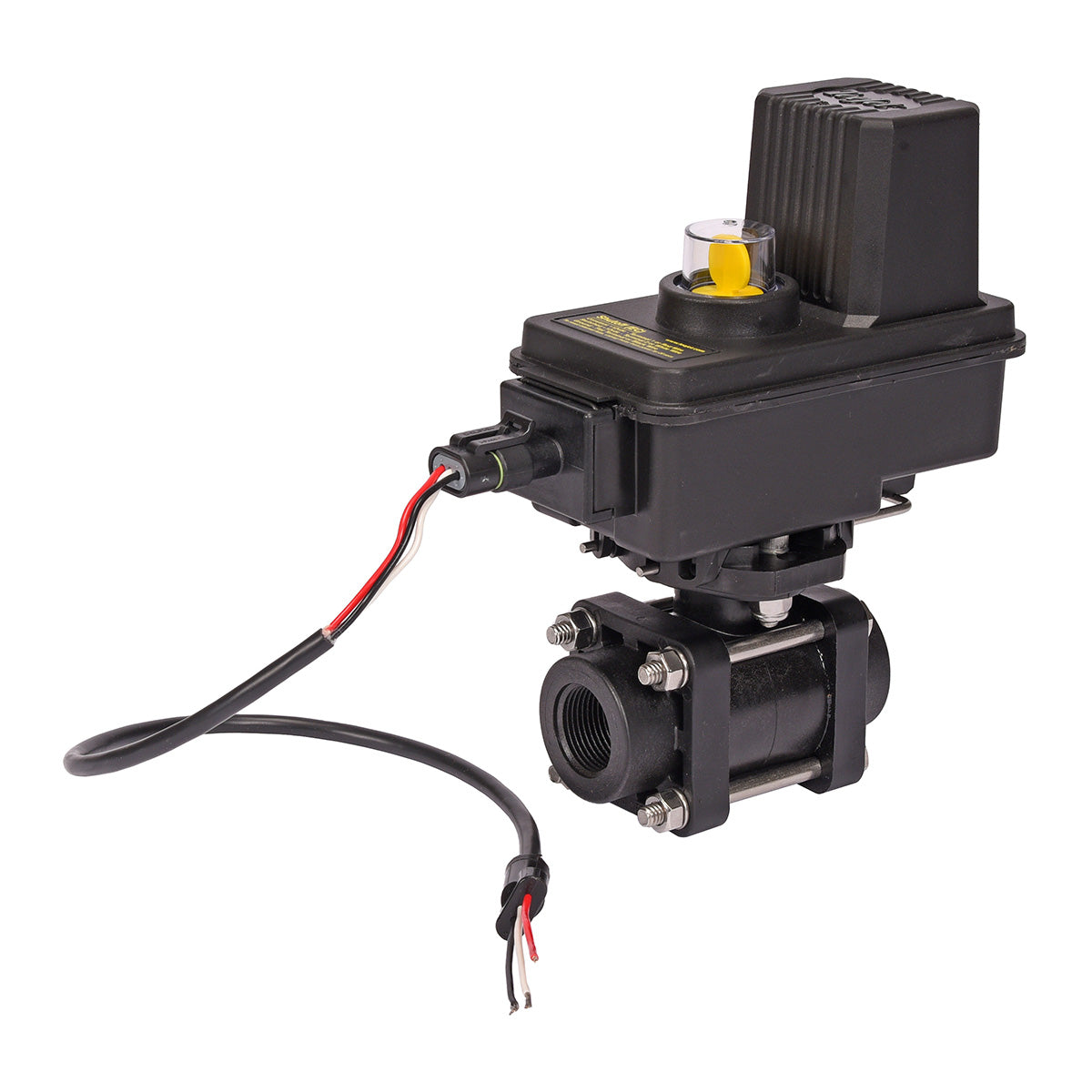

3/4" 12V 2 Way Electric Shutoff Valve

3/4" 12V 2 Way Electric Shutoff Valve

Brand:
TeeJet
Weight:
2.6 lb
Item #
344BEC23C
Skip to product information
1 of 1

3/4" 12V 2 Way Electric Shutoff Valve

3/4" 12V 2 Way Electric Shutoff Valve

Brand:
TeeJet
Weight:
2.6 lb
Item #
344BEC23C

Regular price $276.64
Sale price $276.64 Regular price List Price: $461.07

Earn 830 points with this purchase.

View full details

Collapsible content

Product Overview

This 2 way electric shutoff valve from TeeJet allows you to regulate linear flow and control shutoff in a variety of agricultural applications. It moves from fully open to a closed position in less than a second, providing you with maximum conservation of chemicals. Constructed from rugged materials such as stainless steel and polypropylene, this valve stands up to wear and corrosion for superior longevity.

Manufacturer description

22RPM, 0.7 second shutoff fully open to close. Flexible inlet/outlets provide quick simple plumbing for a single valve. Available in 2-way or 3-way versions. 2-way valves allow complete shutoff while the 3-way valves divert flow to a bypass line when boom controls are shut off. Stainless steel stem with optional polypropylene or stainless steel ball. Maximum pressure rating is 300 psi (20 bar). The flow rate for the 344BEC 2-way valve is 32 GPM (121 l/min) flow rate with a 5 psi (0.34 bar) pressure drop. Wetted parts are nylon, Teflon®, polypropylene, stainless steel and Viton.

Features

  • Thread size: 3/4" Female NPT inlet and outlet
  • Max flow: 32 gpm
  • Max pressure: 300 psi
  • Voltage: 12 VDC
  • Polypropylene Ball
  • Positively Switched w/ 0.5-Meter Cable.

Parts breakdown

Diagram

Diagram parts
