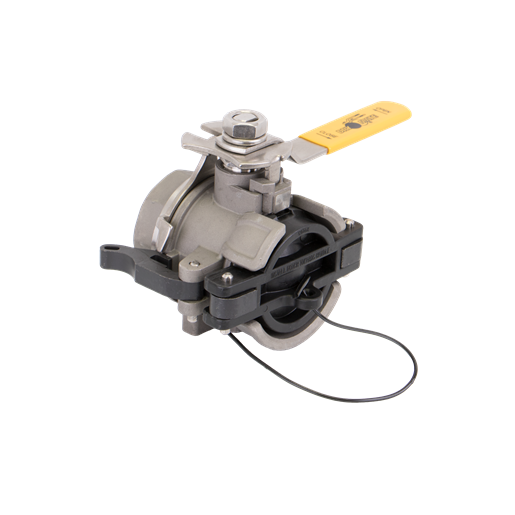

2" Stainless Steel Standard Port Female X FPT BSP With FKM Seals

2" Stainless Steel Standard Port Female X FPT BSP With FKM Seals

Brand:
Banjo
Weight:
6.9 lb
Item #
DM200DBSS
1 1

2" Stainless Steel Standard Port Female X FPT BSP With FKM Seals

2" Stainless Steel Standard Port Female X FPT BSP With FKM Seals

Brand:
Banjo
Weight:
6.9 lb
Item #
DM200DBSS

$1,113.62
$1,113.62 List Price: $2,320.05

Free Shipping on Qualified Orders Over $100

Orders of in-stock products placed within

ship out same day. Learn more

Earn 3,341 points with this purchase.

See Details

View full details

Product Overview

2" Stainless steel standard port female X FPT BSP with FKM seals. Stainless steel material with max pressure of 150 psi.

Manufacturer description

High quality Dry-Mate from Banjo- 2" Stainless steel standard port female X FPT BSP with FKM seals

Resources

Download Product Manual

Features

  • 150 psi maximum operating pressure
  • 100% PTFE ball seats
  • 300°F maximum operating temperature
  • 316 stainless steel construction
  • PTFE seals
  • Spillage Data: 2" = 3.6 ml
  • When Dry-Mate halves are apart, handles cannot be turned to open position
  • When liquid is flowing, Dry-Mate halves cannot be uncoupled without turning handles to closed position

Parts breakdown

Diagram

Diagram parts
