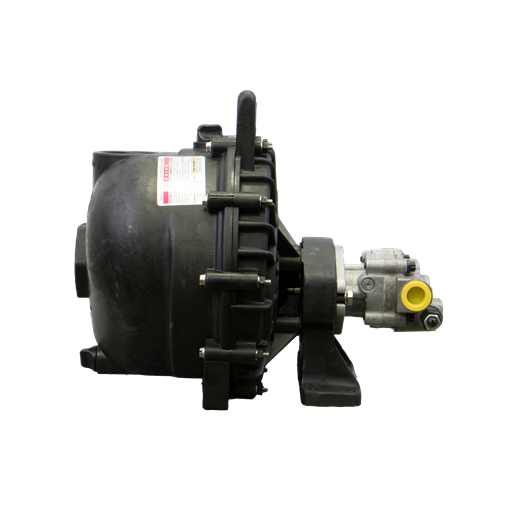

2" Poly Hydraulic Driven Centrifugal Pump

2" Poly Hydraulic Driven Centrifugal Pump

Brand:
Banjo
Weight:
30.0 lb
Item #
200PHY
1 1

2" Poly Hydraulic Driven Centrifugal Pump

2" Poly Hydraulic Driven Centrifugal Pump

Brand:
Banjo
Weight:
30.0 lb
Item #
200PHY

$982.17
$982.17 List Price: $2,311.00

Free Shipping on Qualified Orders Over $100

Orders of in-stock products placed within

ship out same day. Learn more

Earn 2,947 points with this purchase.

See Details

View full details

Product Overview

The 200PHY Poly Hydraulic Driven Centrifugal Pump is designed to be sturdy, reliable, and always get the job done. With 3,600 RPMs, 195 GPM, 45 PSI, and 2" NPT inlet x 2" NPT Outlet, it provides you with impressive pumping power for your industrial or agricultural needs. Whether you are spreading liquid fertilizer, insecticide, or just plain water, you can count on the centrifugal pump.

195 gpm, 45 psi. 2" NPT Inlet x 2" NPT Outlet

Resources

Download Product Manual

Features

  • 12 HP motor
  • 3600 RPM
  • Hydraulic fluid capacity: Minimum 6 gallons, Maximum 10 gallons
  • GRESEN® MGG2 hydraulic motor
  • CAUTION-WARNING: Please do not run pump dry, restrict or reduce port sizes, or dead head pump. This would cause component failure to pump
  • DO NOT USE WITH FLAMMABLE LIQUIDS

Parts breakdown

Diagram

Diagram parts

Parts list

  • SS Rear Bracket Washer
    • Ref No: 1
    • Part No: 12901
    • Qty Req: 4
    Our price: $0.88 List price: $1.76
  • O-Ring for Screw Head
    • Ref No: 2
    • Part No: 12717
    • Qty Req: 4
    Our price: $0.80 List price: $1.59
  • FKM (Viton) O-Ring for Screw Head
    • Ref No: 2
    • Part No: 12717V
    • Qty Req: 4
    Our price: $0.97 List price: $1.93
  • Body Assembly
    • Ref No: 3
    • Part No: 12712A
    • Qty Req: 1
    Our price: $118.22 List price: $236.43
  • Poly Pump Check Valve
    • Ref No: 4
    • Part No: 12705
    • Qty Req: 1
    Our price: $13.81 List price: $27.60
  • FKM (Viton) Poly Pump Check Valve
    • Ref No: 4
    • Part No: 12705V
    • Qty Req: 1
    Our price: $94.58 List price: $189.15
  • SS Upper Volute Screw
    • Ref No: 5
    • Part No: 12900
    • Qty Req: 4
    Our price: $1.35 List price: $2.69
  • SS Volute Screw
    • Ref No: 6
    • Part No: 12725
    • Qty Req: 2
    Our price: $3.23 List price: $6.46
  • Body O-Ring
    • Ref No: 7
    • Part No: 12719A
    • Qty Req: 1
    Our price: $12.51 List price: $25.02
  • O-Ring Segment
    • Ref No: 8
    • Part No: 12754
    • Qty Req: 1
    Our price: $5.49 List price: $10.98
  • FKM (Viton) O-Ring Segment
    • Ref No: 8
    • Part No: 12754V
    • Qty Req: 1
    Our price: $8.86 List price: $17.71
  • SS Body Screw
    • Ref No: 9
    • Part No: 12720
    • Qty Req: 10
    Our price: $3.57 List price: $7.14
  • SS Lock Washer
    • Ref No: 10
    • Part No: V07018
    • Qty Req: 10
    Our price: $0.90 List price: $1.80
  • SS Body Nut
    • Ref No: 11
    • Part No: V07019
    • Qty Req: 10
    Our price: $0.95 List price: $1.90
  • Impeller Hex Nut
    • Ref No: 12
    • Part No: 12775A
    • Qty Req: 1
    Our price: $13.51 List price: $27.01
  • Impeller Key
    • Ref No: 13
    • Part No: 12902A
    • Qty Req: 1
    Our price: $1.66 List price: $3.32
  • Poly Pump Rear Bracket
    • Ref No: 14
    • Part No: 12703A
    • Qty Req: 1
    Our price: $76.46 List price: $152.91
  • SS Bracket Screw
    • Ref No: 15
    • Part No: 12715A
    • Qty Req: 4
    Our price: $3.42 List price: $6.84
  • SS Impeller Bolt
    • Ref No: 16
    • Part No: 12765A
    • Qty Req: 1
    Our price: $17.02 List price: $34.01
  • 5 Vane Impeller
    • Ref No: 17
    • Part No: 12772
    • Qty Req: 1
    Our price: $35.87 List price: $71.72
  • O-Ring for Seal Assembly
    • Ref No: 18
    • Part No: 12710
    • Qty Req: 1
    Our price: $3.46 List price: $6.91
  • FKM (Viton) O-Ring for Seal Assembly
    • Ref No: 18
    • Part No: 12710V
    • Qty Req: 1
    Our price: $8.86 List price: $17.71
  • Impeller Bolt Gasket
    • Ref No: 19
    • Part No: 12774VA
    • Qty Req: 1
    Our price: $1.40 List price: $2.78
  • Poly Pump Volute
    • Ref No: 20
    • Part No: 13702
    • Qty Req: 1
    Our price: $62.26 List price: $124.50
  • Seal Assembly
    • Ref No: 21
    • Part No: 12713
    • Qty Req: 1
    Our price: $37.43 List price: $74.85
  • Hydraulic Pedestal Housing
    • Ref No: 22
    • Part No: 12049B
    • Qty Req: 1
    Our price: $125.08 List price: $150.10
  • â…œ"Stainless Steel Lock Washer
    • Ref No: 23
    • Part No: V20018
    • Qty Req: 2
    Our price: $1.00 List price: $1.99
  • Adapter Shaft
    • Ref No: 24
    • Part No: 12055B
    • Qty Req: 1
    Our price: $68.64 List price: $137.28
  • Bearing
    • Ref No: 25
    • Part No: 17056
    • Qty Req: 1
    Our price: $53.87 List price: $107.74
  • 3/8"-16 x 1.25" HHCS
    • Ref No: 26
    • Part No: 18010SS
    • Qty Req: 2
    Our price: $1.72 List price: $3.44
  • Hydaulic Motor
    • Ref No: 27
    • Part No: HY1013
    • Qty Req: 1
    Our price: $1,015.17 List price: $2,114.94
  • Complete Hydraulic Assembly
    • Ref No: 28
    • Part No: 12600B
    • Qty Req: 1
    Our price: $1,010.24 List price: $2,377.03
  • Banjo 1/2" Drain Plug (1"-1/4")
    • Ref No: 29
    • Part No: 12777
    • Qty Req: 2
    Our price: $2.45 List price: $4.89
  • Prime/Drain Plug O-Ring
    • Ref No: 30
    • Part No: UV15163
    • Qty Req: 2
    Our price: $0.88 List price: $1.75
