1536-17-18 Hannay Manual Hose Reel

1536-17-18 Hannay Manual Hose Reel

Item Code:
15361718
Weight:
129.0 lb
Manufacturer:
Hannay
Our price:
$260.00
List price:
$275.00
Overview:

Hannay 1536-17-18 Manual Rewind Hose Reel (Hose sold separately)

28" between the discs. Handles 1/4" to 5/8" ID hose

1536-17-18 can hold up to 475' of 1/2" ID hose.

Features:

-Lightweight, compact reels designed for long lengths of hose in manual and power rewind

-Direct crank rewind is permanently attached

-Chain and sprocket drive is powered by electric, hydraulic or compressed air motor

-Manual reels include: Cam-lock drag brake, spring actuated pin lock

-Standard inlet is 90º ball bearing swivel joint with 1/2" FNPT threads

-Standard outlet is 1/2" FNPT thread

-Operating pressure up to 3000 psi

-Operating temperatures from +20° F to +400° F (-7° C to +204° C)

-Option roller guides available

Actual weight: 35 lbs.

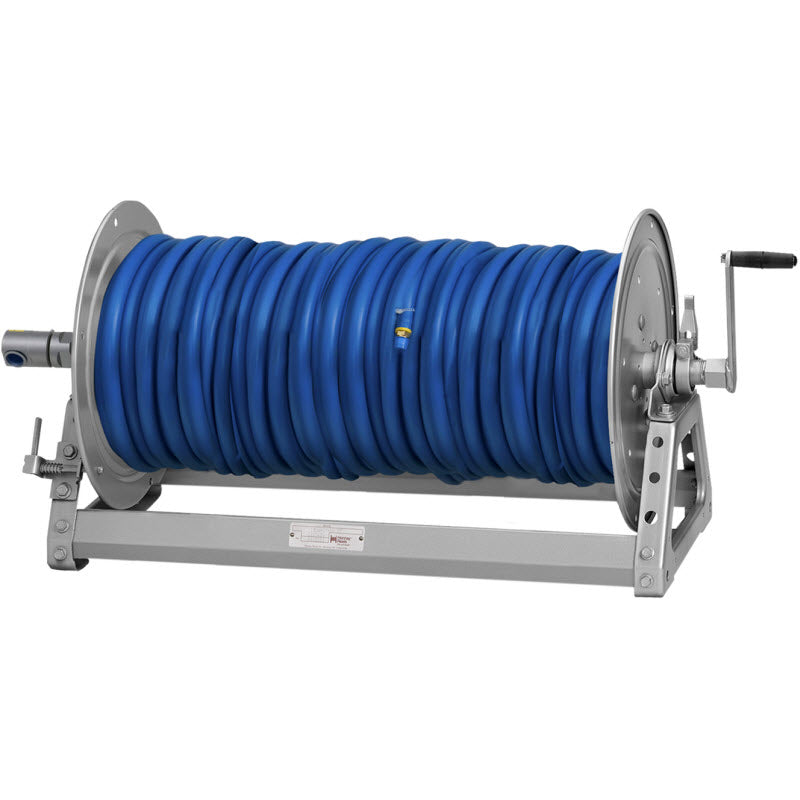

**Hose shown on reel in picture sold separately**

Parts breakdown

Parts list

  • Ref No: 03B
  • Part No: 99650032
  • Qty Req: 1
Our price: $1.86
  • Ref No: 03G
  • Part No: 99470132
  • Qty Req: 1
Our price: $4.19
  • Ref No: 28
  • Part No: 99540007
  • Qty Req: 4
Our price: $1.86
  • Ref No: 28
  • Part No: 99540020
  • Qty Req: 4
Our price: $1.00
  • Ref No: 28
  • Part No: 99650040
  • Qty Req: 2
Our price: $8.37 List price: $9.00
