1530-17-18 Hannay Manual 22

1530-17-18 Hannay Manual 22" Hose Reel (3000 PSI Max)

Item Code:
110.0 lb
Our price:
List price:

For a versatile manual hose reel that can withstand up to 3000 PSI, the Hannay delivers in every way. It's massive storage capacity allows for either 500' of a 3/8" ID hose or 375" of a 1/2" ID hose. This is the hand crank version but there is an electric option powered by a chain and sprocket drive, please see part number E1530-17-18.

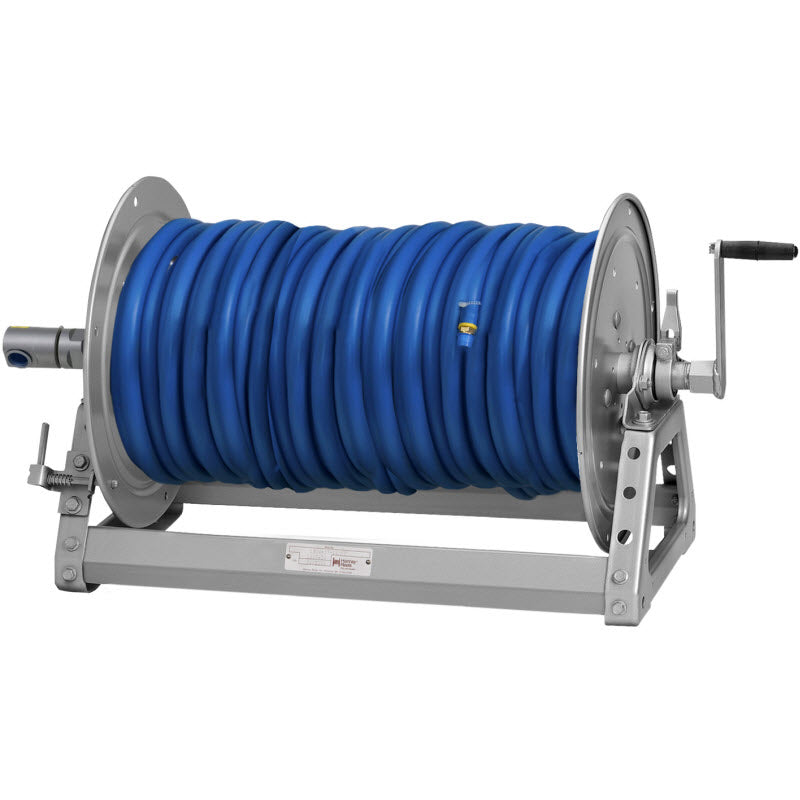

**Hose shown on reel in picture sold separately**

Manufacturer Description:

Built to order in the Hannay factory located in New York. Lightweight, compact reels designed for long lengths of hose in manual and power rewind. Direct crank rewind is permanently attached. Chain and sprocket drive powered by electric, hydraulic, or compressed air motor. Designed to spec and built of the highest quality materials, our reels stand up to the most demanding conditions of any industry. We offer thousands of hose and cable reels that help improve efficiency, productivity, and safety in your operation by keeping hoses and cables organized and off the floor. The heavy-duty design and construction of our reels ensure that they outlast the competition and save you money. And bolted-on components and conveniently located swivel joints make servicing our reels quick and trouble-free. Every reel we build is created for the industry in which it will be used, from processing to welding to maintenance and more - never retrofitted to the job. That means you can trust Hannay reels t


  • Rewind: Manual hand crank
  • Construction: Carbon steel, e-coated and then finished with a modified high performance acrylic enamel paint (metallic graphite color)
  • Distance between discs: 22"
  • Standard inlet: 90° ball bearing swivel joint, 1/2" female NPT threads
  • Standard outlet: 1/2" female NPT threads
  • Optional rollers available: FH3 (open top) and C roller (fully enclosed) assemblies available to mount on hose reel
  • Standard pressures to 3000 psi (207 bar), available up to 10,000 psi (690 bar) must specify
  • Temperatures from +20 F to +400 F (-7 C to +204 C)
  • Hose/Cable Size: 1/4" to 5/8" ID
  • Capacity of Reel: 300 to 600 feet depending on ID of hose
  • 1/4" ID hose capacity: 600 feet
  • 3/8" ID hose capacity: 500 feet
  • 1/2" ID hose capacity: 400 feet
  • 5/8" ID hose capacity: 275 feet
  • Approximate weight: 33 lbs

Parts breakdown

Parts list

  • Ref No: 03B
  • Part No: 99650032
  • Qty Req: 1
Our price: $1.86
  • Ref No: 03G
  • Part No: 99470132
  • Qty Req: 1
Our price: $4.19
  • Ref No: 28
  • Part No: 99540007
  • Qty Req: 4
Our price: $1.86
  • Ref No: 28
  • Part No: 99540020
  • Qty Req: 4
Our price: $1.00
  • Ref No: 28
  • Part No: 99650040
  • Qty Req: 2
Our price: $8.37 List price: $9.00
