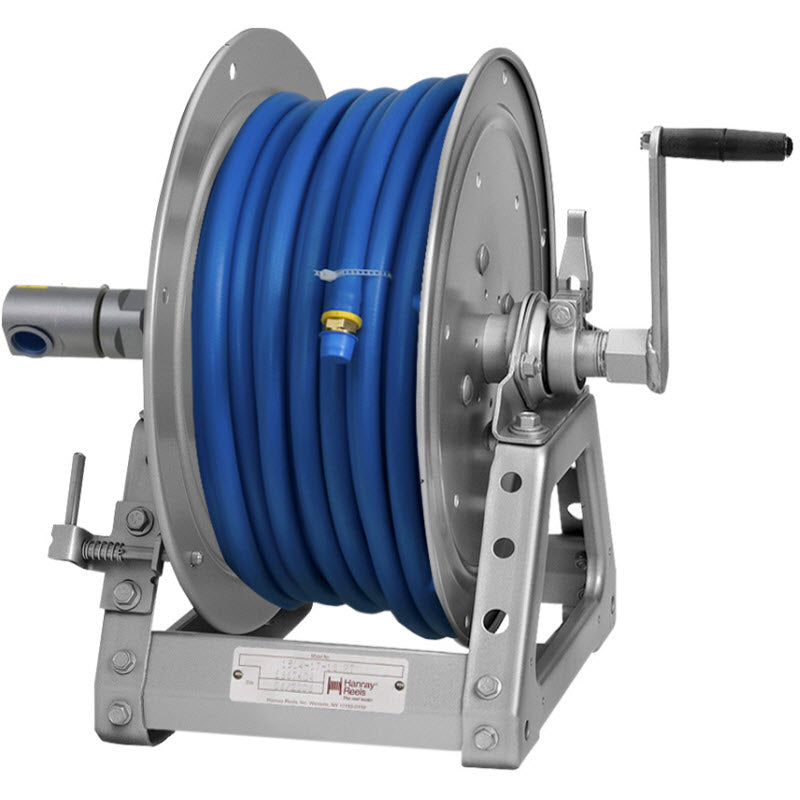

1514-17-18 Hannay Manual 6

1514-17-18 Hannay Manual 6" Hose Reel (3000 PSI Max)

Item Code:
35.75 lb
Our price:
List price:

This manual hose reel from Hannay is designed to hold and store hoses for a wide variety of industries and applications, including lawn care, pressure washing, pest control, steam cleaning, and agriculture. Lightweight and compact, it's designed for efficiency and convenience. The frames, discs, and drums are constructed from heavy-gauge steel to ensure durability and long lifespan.

**Hose shown on reel in picture sold separately**

Manufacturer Description:

Built to order in the Hannay factory located in New York. Lightweight, compact reels designed for long lengths of hose in manual and power rewind. Direct crank rewind is permanently attached. Chain and sprocket drive powered by electric, hydraulic, or compressed air motor. Designed to spec and built of the highest quality materials, our reels stand up to the most demanding conditions of any industry. We offer thousands of hose and cable reels that help improve efficiency, productivity, and safety in your operation by keeping hoses and cables organized and off the floor. The heavy-duty design and construction of our reels ensure that they outlast the competition and save you money. And bolted-on components and conveniently located swivel joints make servicing our reels quick and trouble-free. Every reel we build is created for the industry in which it will be used, from processing to welding to maintenance and more Ð never retrofitted to the job. That means you can trust Hannay reels to be durable and dependable for years to come.


  • Rewind: Manual hand crank
  • Distance between discs: 6"
  • Construction: Carbon steel, e-coated and then finished with a modified high performance acrylic enamel paint (metallic graphite color)

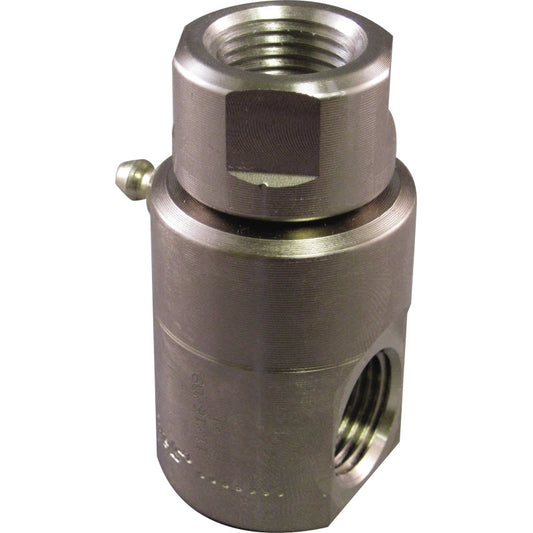

  • Standard inlet: 90° ball bearing swivel joint, 1/2" female NPT threads
  • Standard outlet: 1/2" female NPT threads
  • Optional rollers available: FH3 (open top) and C roller (fully enclosed) assemblies available to mount on hose reel
  • Standard pressures to 3000 psi (207 bar), available up to 10,000 psi (690 bar) Ð must specify
  • Temperatures from +20° F to +400° F (-7° C to +204° C)
  • Consult factory for other pressures and temperatures
  • Hose/Cable Size: 1/4" to 5/8" ID
  • Capacity of Reel: 75 to 200 feet depending on ID of hose
  • 1/4" ID hose capacity: 200 feet
  • 3/8" ID hose capacity: 150 feet
  • 1/2" ID hose capacity: 100 feet
  • 5/8" ID hose capacity: 75 feet
  • Approximate weight: 27 lbs

Parts breakdown

 Parts breakdown parts

Parts list

  • Ref No: 03B
  • Part No: 99650032
  • Qty Req: 1
Our price: $0.76 List price: $0.80
  • Ref No: 03G
  • Part No: 99470132
  • Qty Req: 1
Our price: $4.28 List price: $4.50
  • Ref No: 20
  • Part No: 99076000
  • Qty Req: 2
Our price: $20.90 List price: $22.00
  • Ref No: 20
  • Part No: 99060011
  • Qty Req: 2
Our price: $36.10 List price: $38.00
  • Ref No: 28
  • Part No: 99540007
  • Qty Req: 4
Our price: $0.24 List price: $0.25
  • Ref No: 28
  • Part No: 99540020
  • Qty Req: 4
Our price: $0.95 List price: $1.00
  • Ref No: 28
  • Part No: 99650040
  • Qty Req: 2
Our price: $7.60 List price: $8.00
