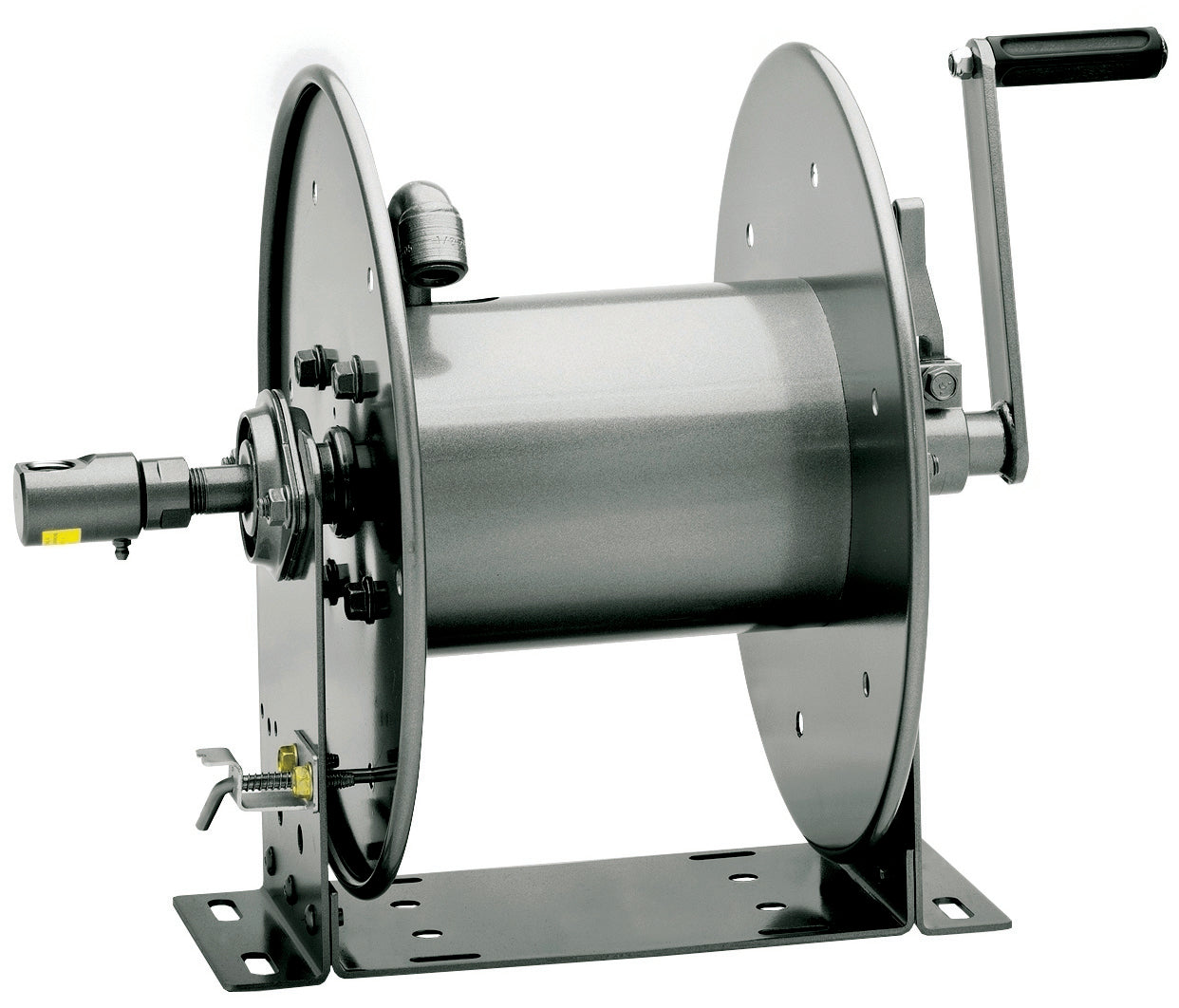

1016-14-16 Hannay Compact Manual Reel
1
Overview:
1016-14-16 Hannay Compact Manual Reel
8" between the discs. Handles 1/4" to 3/8" ID Hose
1016-14-16 will hold up to 150' of 1/4" ID spray hose or 100' of 3/8" ID hose
Features:
-Lightweight, compact design
-Direct crank rewind permanently attached
-Optional pin lock available
-Standard inlet is 90º ball bearing swivel joint with 1/2" FNPT threads
-Standard outlet is 3/8" FNPT thread
-Operating pressure up to 3000 psi
-Operating temperatures from +20° F to +400° F (-7° C to +204° C)
