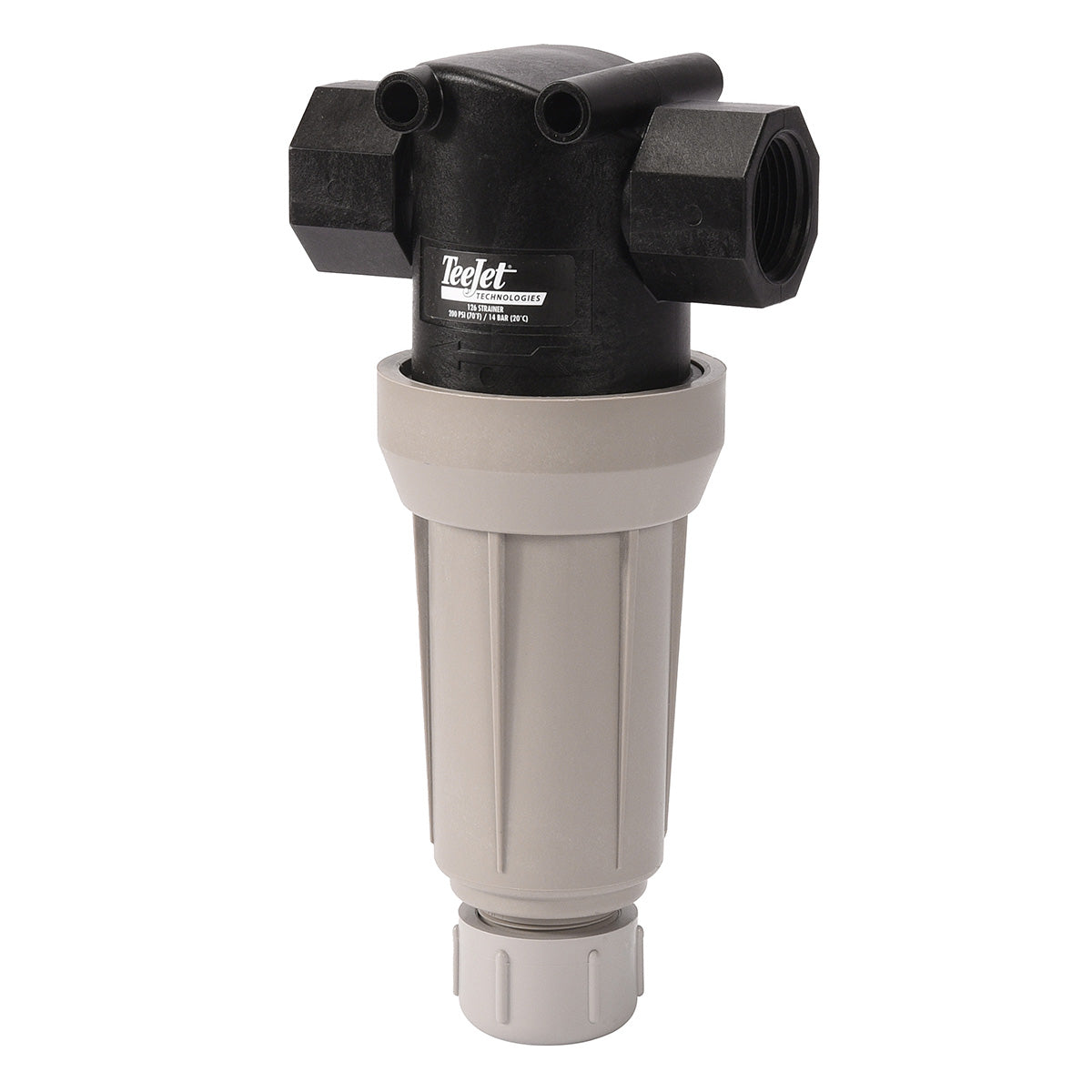

1" 50 Mesh Poly Line Strainer
1" 50 Mesh Poly Line Strainer
Brand:
TeeJet
Weight:
0.88 lb
Item #
AA126ML450
1
1" 50 Mesh Poly Line Strainer
1" 50 Mesh Poly Line Strainer
Brand:
TeeJet
Weight:
0.88 lb
Item #
AA126ML450
1
Regular price
$28.42
Sale price
$28.42
Regular price
List Price:
$47.36
Unit price
per
Free Shipping on Qualified Orders Over $100
In stock orders placed withinship out same day. Learn more
Earn 85 points with this purchase.
Couldn't load pickup availability
Collapsible content
Product Overview
1" 50 Mesh Spraying Systems/Teejet Poly Line Strainer.
AA126 Flush-out Line Strainer Features:
-200 PSI (14 bar) maximum pressure rating.
-Strainer head and bowl are made of glass-filled polypropylene with EPDM gasket.
-Screens are made of 304SS with color-coded polypropylene frames and are removable for cleaning.
-Removable cap and O-Ring for flush-out or self cleaning operations.
-Integral mounting provision allows the strainer to be attached to machine using M8 or 5/16" diameter bolts.
-Available with 3/4", 1" NPT or BSPT (F) threads and 50 series flange fitting connections for easy assembly. Uses same screen as AA124A line strainer.
AA126 Flush-out Line Strainer Features:
-200 PSI (14 bar) maximum pressure rating.
-Strainer head and bowl are made of glass-filled polypropylene with EPDM gasket.
-Screens are made of 304SS with color-coded polypropylene frames and are removable for cleaning.
-Removable cap and O-Ring for flush-out or self cleaning operations.
-Integral mounting provision allows the strainer to be attached to machine using M8 or 5/16" diameter bolts.
-Available with 3/4", 1" NPT or BSPT (F) threads and 50 series flange fitting connections for easy assembly. Uses same screen as AA124A line strainer.
Resources
Parts breakdown
Diagram
