1-3/8" Female PTO Kit (D30/D50/D303/403)

1-3/8" Female PTO Kit (D30/D50/D303/403)

Brand:
Hypro
Weight:
3.0 lb
Item #
9910KIT1704
1 1

1-3/8" Female PTO Kit (D30/D50/D303/403)

1-3/8" Female PTO Kit (D30/D50/D303/403)

Brand:
Hypro
Weight:
3.0 lb
Item #
9910KIT1704

$274.37
$274.37 List Price: $365.83

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 823 points with this purchase.

See Details

View full details

Product Overview

1-3/8" 6 Spline Female PTO Shaft Kit.

For Hypro Models D30, D50, D303 & D403 Diaphragm Pumps.

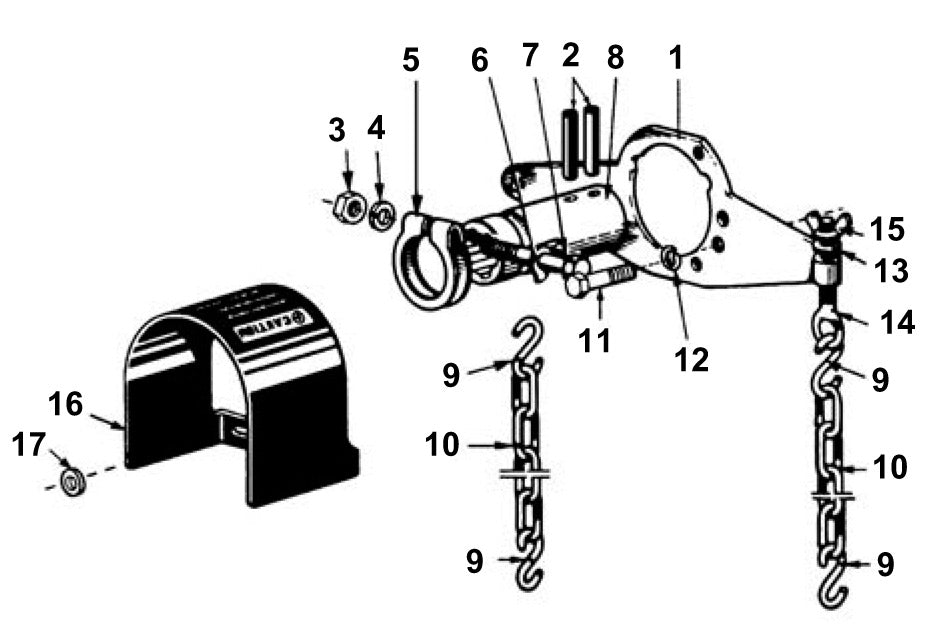

Parts breakdown

Diagram

Diagram parts

Parts list

  • Nut
    • Ref No: 3
    • Part No: 9910320130
    • Qty Req: 2
    Our price: $1.92 List price: $2.37
  • Collar
    • Ref No: 56
    • Part No: 9910500160
    • Qty Req: 1
    Our price: $23.27 List price: $28.73
  • Shaft, Female Splined
    • Ref No: 57
    • Part No: 9910620270
    • Qty Req: 1
    Our price: $250.89 List price: $309.74
  • Chain Hook
    • Ref No: 58
    • Part No: 9910650340
    • Qty Req: 4
    Our price: $14.26 List price: $17.60
  • Chain (17.7")
    • Ref No: 59
    • Part No: 9910650360
    • Qty Req: 1
    Our price: $136.08 List price: $168.00
  • Bolt
    • Ref No: 60
    • Part No: 9910540300
    • Qty Req: 3
    Our price: $5.57 List price: $6.88
  • Lockwasher
    • Ref No: 61
    • Part No: 9910200231
    • Qty Req: 7
    Our price: $1.75 List price: $2.16
  • Bolt
    • Ref No: 62
    • Part No: 9910620340
    • Qty Req: 4
    Our price: $2.01 List price: $2.48
  • Pump Bracket
    • Ref No: 63
    • Part No: 9910650350
    • Qty Req: 1
    Our price: $150.67 List price: $186.01
  • Spring
    • Ref No: 64
    • Part No: 9910650380
    • Qty Req: 1
    Our price: $41.35 List price: $51.05
  • Bolt
    • Ref No: 71
    • Part No: 9910320170
    • Qty Req: 1
    Our price: $5.77 List price: $7.12
  • Washer
    • Ref No: 72
    • Part No: 9910500171
    • Qty Req: 1
    Our price: $7.14 List price: $8.82
  • Steel Safety Shield
    • Ref No: 105
    • Part No: 28400028
    • Qty Req: 1
    Our price: $130.20 List price: $160.74
  • Washer
    • Ref No: 106
    • Part No: 22700004
    • Qty Req: 2
    Our price: $1.16 List price: $1.43
  • Wingnut
    • Ref No: 114
    • Part No: 9910320610
    • Qty Req: 1
    Our price: $3.34 List price: $4.12
