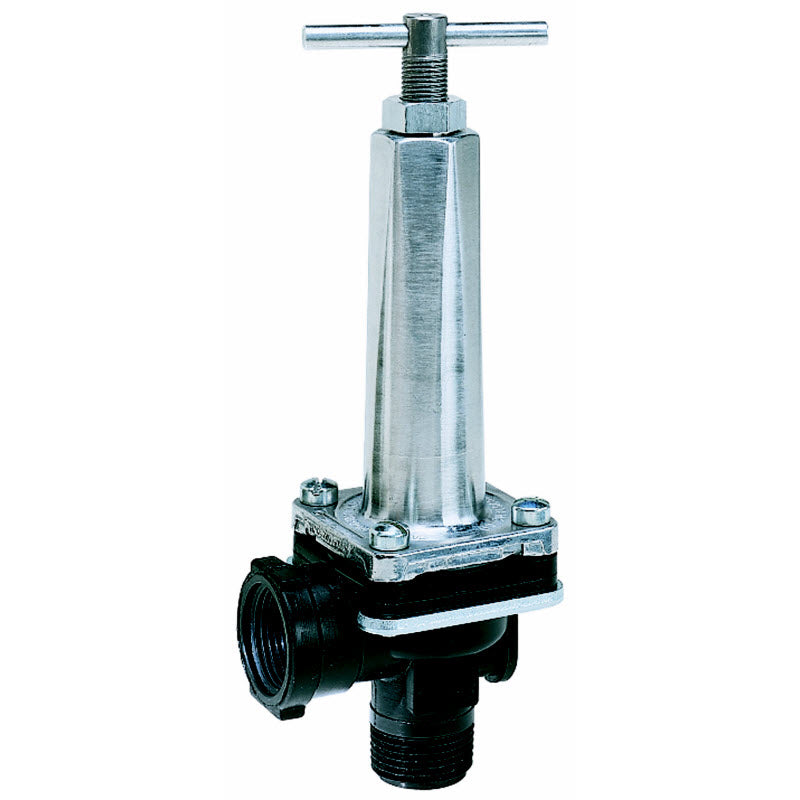

1/2" 50 PSI Relief Valve

1/2" 50 PSI Relief Valve

Brand:
TeeJet
Weight:
0.93 lb
Item #
84601250
1 1

1/2" 50 PSI Relief Valve

1/2" 50 PSI Relief Valve

Brand:
TeeJet
Weight:
0.93 lb
Item #
84601250

$58.87
$58.87 List Price: $98.11

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 177 points with this purchase.

See Details

View full details

Product Overview

Model 8460 Diaphragm-Type Pressure Relief Valve.

1/2" Inlet & Pipe Connection, 50 psi max. (Also available in 3/4")

Nylon body, Aluminum bonnet.

Flow rate of 56 gpm for 1/2" and 70 gpm for 3/4".

Stainless steel springs, extra large valve passages and positive locknut to hold adjustment screw firmly in place.

Resources

Download Product Manual

Parts breakdown

Diagram

Diagram parts

Parts list

  • Adjusting Screw Sub-Assembly
    • Ref No: 1
    • Part No: CP5896ALSS
    • Qty Req: 1
    Our price: $7.84 List price: $13.07
  • Locknut
    • Ref No: 2
    • Part No: CP5898AL
    • Qty Req: 1
    Our price: $1.72 List price: $2.87
  • Screw
    • Ref No: 3
    • Part No: CP1309378IZP
    • Qty Req: 4
    Our price: $1.47 List price: $2.45
  • Bonnet
    • Ref No: 4
    • Part No: CP8362AL
    • Qty Req: 1
    Our price: $19.49 List price: $32.48
  • Adjusting Nut, Stainless Steel
    • Ref No: 5
    • Part No: CP8368SS
    • Qty Req: 1
    Our price: $7.41 List price: $12.35
  • Washer, Nylon (Black)
    • Ref No: 6
    • Part No: CP8369NYB
    • Qty Req: 1
    Our price: $2.67 List price: $4.45
  • Spring Retainer, Aluminum
    • Ref No: 7
    • Part No: CP8371AL
    • Qty Req: 1
    Our price: $3.80 List price: $6.34
  • Outside Spring (50 PSI Models)
    • Ref No: 9
    • Part No: CP13128SS
    • Qty Req: 1
    Our price: $7.61 List price: $12.69
  • Guide Sleeve, Aluminum
    • Ref No: 10
    • Part No: CP8367AL
    • Qty Req: 1
    Our price: $7.04 List price: $11.73
  • Diaphragm, Fairprene
    • Ref No: 11
    • Part No: CP8366FA
    • Qty Req: 1
    Our price: $4.45 List price: $7.42
  • Stop Ring
    • Ref No: 12
    • Part No: CP8365304SS
    • Qty Req: 1
    Our price: $4.30 List price: $7.16
  • Back-Up Seat, Nylon (Black)
    • Ref No: 13
    • Part No: CP8364NYB
    • Qty Req: 1
    Our price: $4.24 List price: $7.07
  • Screw
    • Ref No: 14
    • Part No: CP1309358SS
    • Qty Req: 1
    Our price: $2.97 List price: $3.49
  • Chamber Insert
    • Ref No: 15
    • Part No: CP8389304SS
    • Qty Req: 1
    Our price: $6.23 List price: $10.39
  • 1/2" Body
    • Ref No: 16
    • Part No: 836112NYB
    • Qty Req: 1
    Our price: $13.69 List price: $22.81
  • Clamp Plate
    • Ref No: 17
    • Part No: CP9017IZP
    • Qty Req: 1
    Our price: $7.00 List price: $11.67
